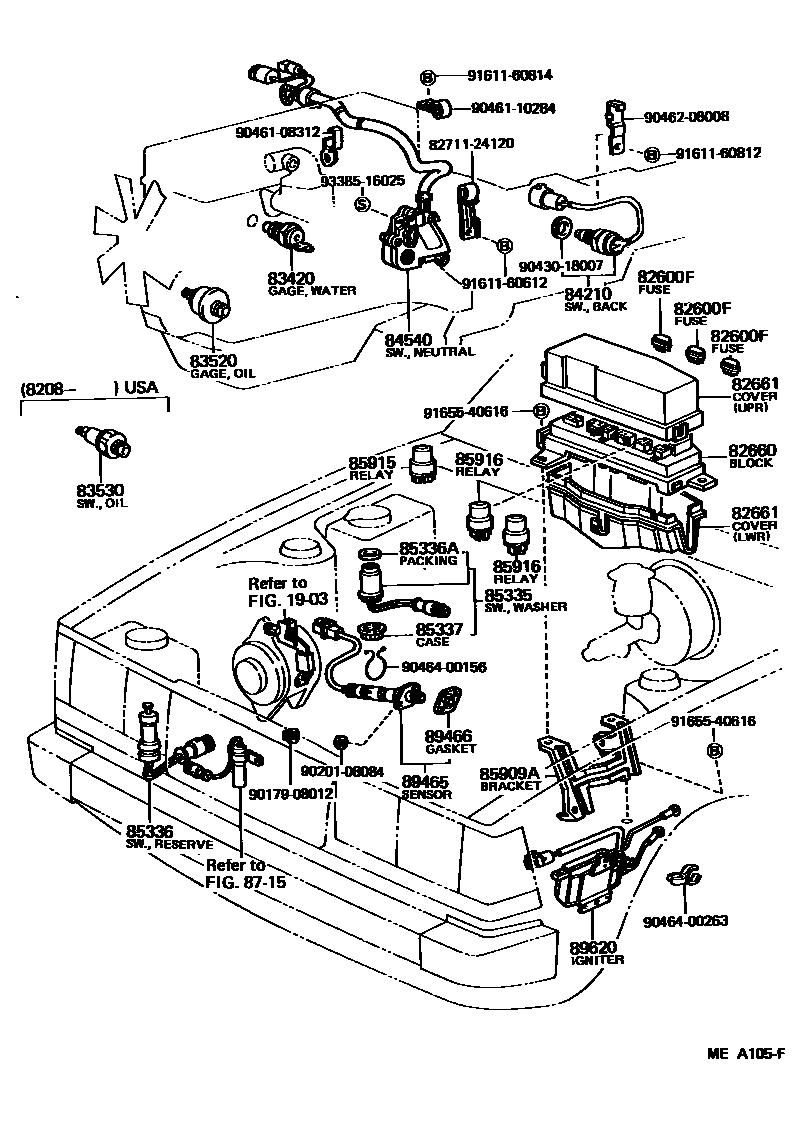

Toyota CRESSIDA — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1

1903

82600FFUSE, FUSE BLOCK

main90982-09001iMX6#198009-198407

5A,5A

main90982-09002iMX6#198208-198407

10A,10A

main90982-09003×10iMX6#198009-198407

15A,15A

main90982-09004×2iMX6#198009-198407

20A,YELLOW,20A

main90982-09005×7iMX6#198009-198407

7.5A,7.5A

82660BLOCK ASSY, RELAY, ENGINE ROOM

main82660-22130iMX6#198009-198310

SUMITOMO

sub82660-14170

main82660-22140iMX6#198009-198310

YAZAKI

main82660-22190iMX6#198310-198407

SUMITOMO

sub82660-20100

main82660-22200iMX6#198310-198407

YAZAKI

sub82660-22100

82661COVER, RELAY BLOCK, NO.1

main82661-20020iMX6#198310-198407

UPR

main82661-22011iMX62198009-198208

UPR,SUMITOMO

main82661-22030iMX6#198009-198407

LWR,SUMITOMO

main82661-22040iMX62198009-198208

UPR,YAZAKI

main82661-22060iMX6#198009-198407

LWR,YAZAKI

main82661-22070iMX6#198208-198310

UPR,SUMITOMO

main82661-22080iMX6#198208-198310

UPR,YAZAKI

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iMX6#198009-198407

DENSO

main83420-20020iMX6#198009-198407

YAZAKI

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14021iMX62..USA198107-198208

main83520-14022iMX6#198406-198407

sub83520-14023

main83520-55011iMX62198009-198107

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14020iMX6#..USA198208-198407

W/*DS

sub83530-30080

84210SWITCH ASSY, BACK-UP LAMP

main84210-60021iMX63..MTM198208-198407

84540SWITCH ASSY, NEUTRAL START

main84540-14110iMX62198108-198208

main84540-22150iMX62198009-198108

main84540-22170iMX6#..ATM198208-198407

sub84540-22171

85335SWITCH ASSY, WASHER LEVEL WARNING

main85335-22030iMX62198009-198208

main85335-22070iMX62198208-198407

85336SWITCH ASSY, RESERVE TANK LEVEL WARNING

main85335-22040iMX6#198009-198407

85336APACKING, LEVEL WARNING SWITCH

main85336-14020iMX6#198009-198407

85337CASE, LEVEL WARNING SWITCH

main85337-14010iMX6#198009-198407

85909ABRACKET SUB-ASSY, RELAY BLOCK

main85909-22010iMX6#198009-198407

85915RELAY, MAIN

main90987-02002iMX6#198110-198407

main90987-02004iMX62198009-198110

85916RELAY, LIGHT CONTROL

main90987-01003iMX6#198310-198407

TAIL

main90987-02006iMX6#198310-198407

HEAD

8715

89465SENSOR, OXYGEN

main89465-29075iMX6#198009-198407

sub89465-29076

89466GASKET, OXYGEN SENSOR

main89466-30010iMX6#198009-198407

sub89466-20020

89620IGNITER ASSY

main89620-22200iMX62198009-198208

main89620-22300iMX6#198208-198407

8271124120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24120

9017908012

main90179-08012

9020108084

main90201-08084

9043018007

main90430-18007

9046108312

main90461-08312

9046110284

main90461-10284

9046208008

main90462-08008

9046400156

main90464-00156

9046400263

main90464-00263

9161160612

main91611-60612

9161160812

main91611-60812

9161160814

main91611-60814

9165540616

main91655-40616

9338516025

main93385-16025

34 parts on this diagram · 5 diagrams in section
