Toyota CRESSIDA — SWITCH & RELAY & COMPUTER

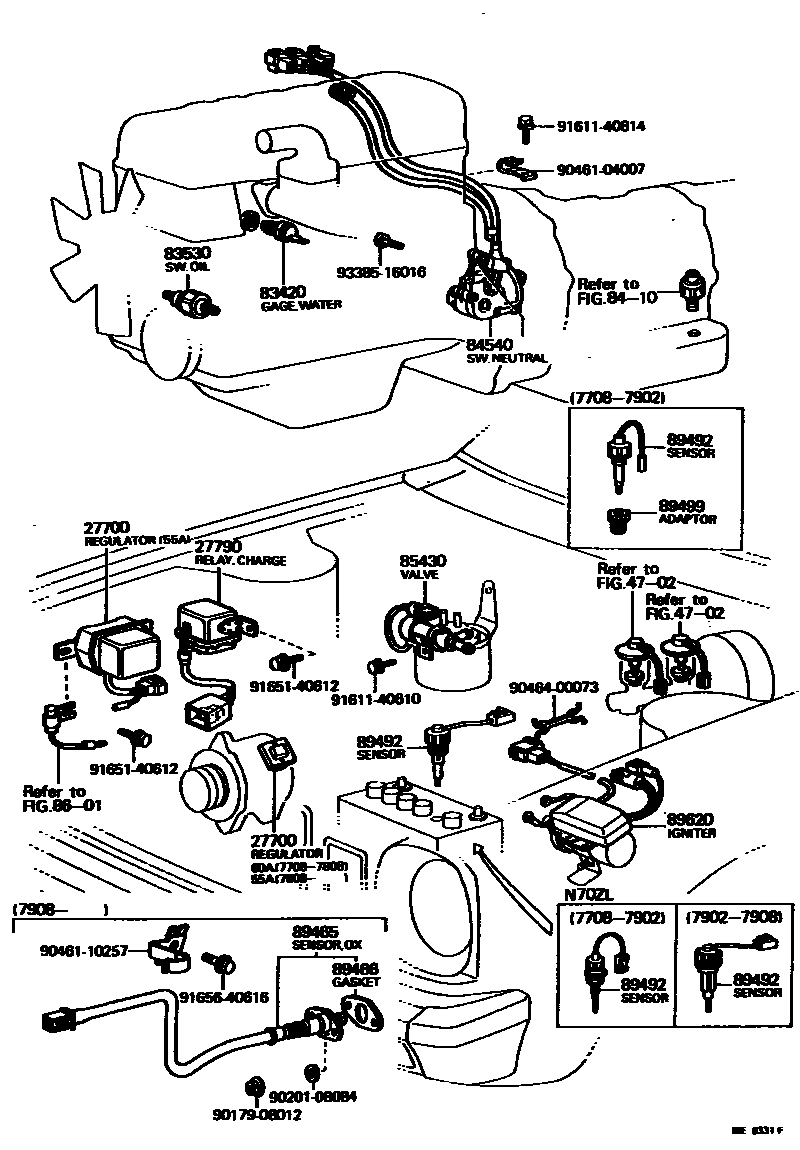

Parts diagram
27700REGULATOR ASSY, GENERATOR
main27700-38060i197708-197711
55A ALTERNATOR
sub27700-26030
main27700-38070i197708-197711
55A ALTERNATOR
sub27700-54040
main27700-38100i197808-197906
sub27700-28030
main27700-41050i197906-198008
main27700-45020i197708-197806
60A ALTERNATOR
main27700-45021i197806-197808
60A ALTERNATOR
sub27700-28030
27790RELAY ASSY, CHARGE LAMP
main27790-41010i197808-197908
main27790-45021i197708-197808
main27790-45040i197908-198008
4702
83420GAGE ASSY, WATER TEMPERATURE SENDER
main83420-16010i197908-198008
DENSO
main83420-20011i197708-197908
main83420-20020i197908-198008
YAZAKI
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
main83530-30040i197708-197811
main83530-30041i197811-197908
main83530-30042i197908-198008
sub83530-30050
8410
84540SWITCH ASSY, NEUTRAL START
main84540-22130i197708-198008
sub84540-22131
sub90461-10284
sub93385-16025
85430VALVE, OUTER VENT CONTROL
main85430-22010i197708-197908
8601
89465SENSOR, OXYGEN
main89465-19026i197908-198008
89466GASKET, OXYGEN SENSOR
main89466-30010i197908-198008
sub89466-20020
89492SENSOR, ELECTROLYTE LEVEL
main89490-22010i197708-197902
N70ZL
main89492-20040i197708-197902
N50L,N50ZL
main89492-36010i197902-197908
N70ZL
main89492-36030i197902-197908
N50L,N50ZL
89499ADAPTER, ELECTROLYTE LEVEL SENSOR
main89499-20010i197708-197902
N50L,N50ZL
89620IGNITER ASSY
main89620-14201i197908-198008
main89620-22111i197708-197808
main89620-22112i197808-197908
sub89620-60H90
9017908012
main90179-08012
9020108084
main90201-08084
9046104007
main90461-04007
9046110257
main90461-10257
9046400073
main90464-00073
9161140610
main91611-40610
9161140814
main91611-40814
9165140612
main91651-40612
9165640616
main91656-40616
9338516016
main93385-16016

24 parts on this diagram · 5 diagrams in section
