Toyota CRESSIDA — STARTER

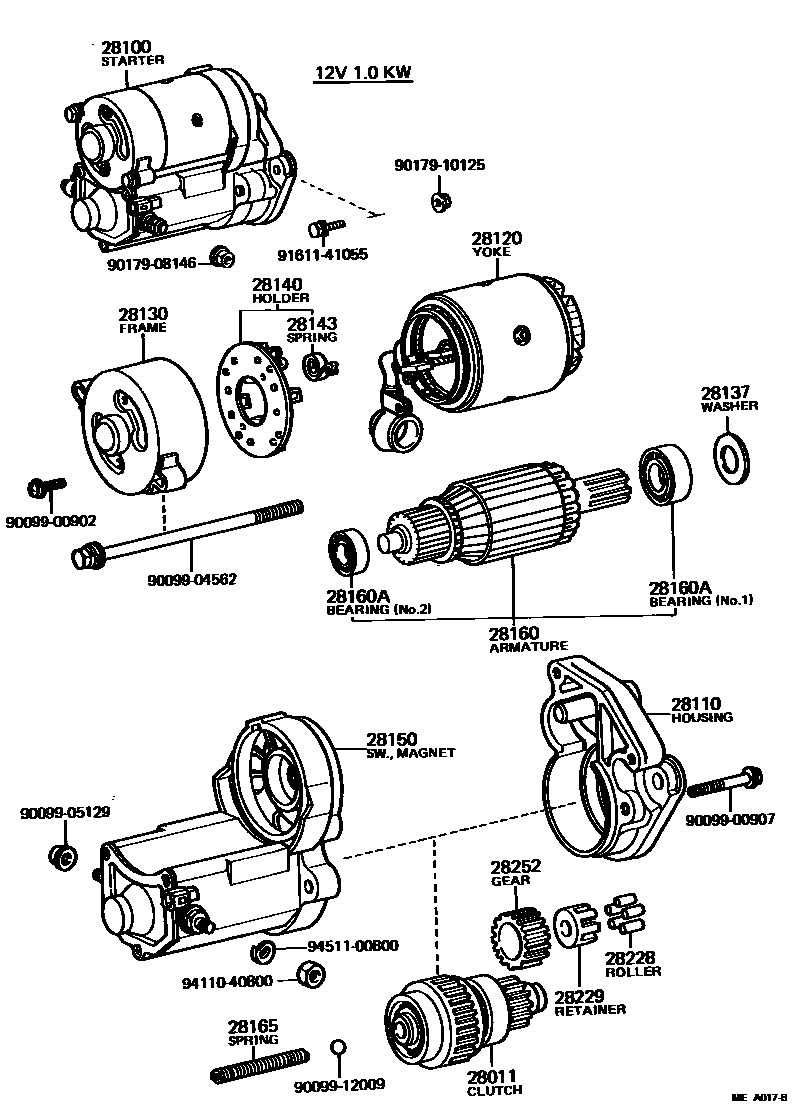

Parts diagram
28011CLUTCH SUB-ASSY, STARTER
main28011-26042i198009-198407
12V 1.0KW,1.4KW
28100STARTER ASSY
main28100-41060i198009-198208
12V 1.0KW,12V 1.0KW
main28100-45033i198009-198308
12V 1.4KW,12V 1.4KW
main28100-45050i198308-198407
12V 1.4KW,12V 1.4KW
28110HOUSING ASSY, STARTER DRIVE
main28110-41060i198009-198208
12V 1.0KW
main28110-45050i198308-198407
12V 1.4KW
main28115-45021i198009-198308
12V 1.4KW
28120YOKE ASSY, STARTER
main28120-15090i198308-198407
12V 1.4KW
main28120-26070i198009-198203
12V 1.0KW
main28120-26071i198203-198208
12V 1.0KW
main28120-34030i198009-198308
12V 1.4KW
28130FRAME ASSY, STARTER COMMUTATOR END
main28130-15020i198009-198208
12V 1.0KW
main28130-15090i198308-198407
12V 1.4KW
28137WASHER, FELT, STARTER
main90099-02202i198009-198308
12V 1.4KW
main90099-02323i198009-198208
12V 1.0KW
28140HOLDER ASSY, STARTER BRUSH
main28140-15090i198308-198407
12V 1.4KW
main28140-26070i198009-198208
12V 1.0KW
main28140-34030i198009-198308
12V 1.4KW
28143SPRING, STARTER BRUSH
main90099-17112×4i198009-198407
12V 1.0KW,1.4KW
28150SWITCH ASSY, MAGNET STARTER
main28150-41060i198009-198208
12V 1.0KW
main28150-45032i198009-198308
12V 1.4KW
main28150-45050i198308-198407
12V 1.4KW
28160ARMATURE ASSY, STARTER
main28160-15090i198308-198407
12V 1.4KW
main28160-26050i198009-198308
12V 1.4KW
main28160-26070i198009-198208
12V 1.0KW
28160ABEARING, STARTER ARMATURE
main28253-45020i198009-198308
12V 1.0KW,1.4KW,NO.2
main90099-10107i198009-198308
12V 1.4KW,NO.1
main90099-10113i198009-198208
12V 1.0KW,NO.1
main90099-10143i198308-198407
12V 1.4KW,NO.1
main90099-10144i198308-198407
12V 1.4KW,NO.2
28165SPRING, STARTER MAGNET SWITCH RETURN
main28165-26040i198009-198407
12V 1.0KW,1.4KW
28228ROLLER, STARTER IDLE GEAR CLUTCH
main28228-26040×5i198009-198407
12V 1.0KW,1.4KW
28229RETAINER, STARTER IDLE GEAR
main28229-26040i198009-198407
12V 1.0KW,1.4KW
28252GEAR, STARTER IDLE
main28254-45020i198009-198407
12V 1.0KW,1.4KW
9009900902
main90099-00902
9009900907
main90099-00907
9009904562
main90099-04562
9009905129
main90099-05129
9009912009
main90099-12009
9017908146
main90179-08146
9017910125
main90179-10125
9161141055
main91611-41055
9411040800
main94110-40800
9451100800
main94511-00800

25 parts on this diagram · 3 diagrams in section

STARTER for Toyota CRESSIDA

This section contains 33 genuine Toyota parts for the STARTER system of the Toyota CRESSIDA. Key components include: CLUTCH SUB-ASSY, STARTER, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, COVER, STARTER END FRAME, YOKE ASSY, STARTER.
