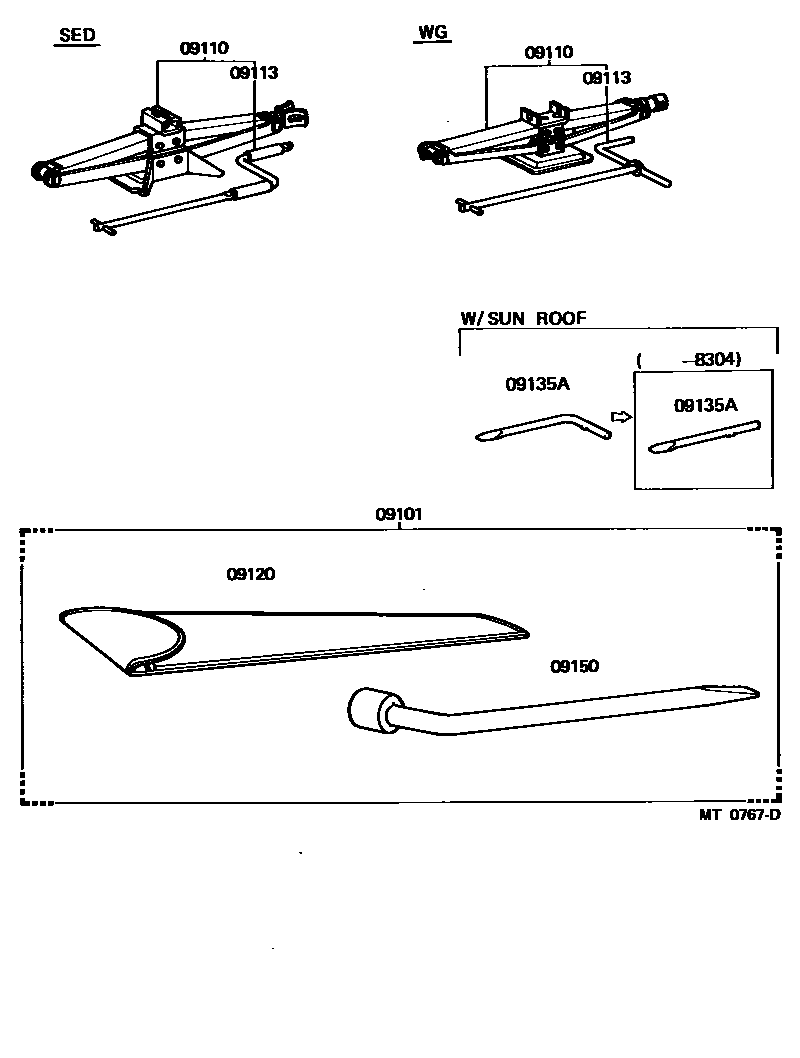

Toyota CRESSIDA — STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-14070i198009-198407

09110JACK ASSY

main09110-22020i198009-198306

main09110-22030i198306-198407

main09110-23030i198009-198306

09113HANDLE, JACK

main09113-14010i198306-198407

main09113-22010i198009-198306

09120BAG, TOOL

main09120-12030i198009-198407

09135ABIT, SCREW DRIVER

main09135-00011i198009-198304

W/SUN ROOF

main09135-00012i198304-198407

W/SUN ROOF

09150WRENCH, HUB NUT BOX

main09150-40010i198009-198407

6 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota CRESSIDA

This section contains 6 genuine Toyota parts for the STANDARD TOOL system of the Toyota CRESSIDA. Key components include: TOOL SET, STANDARD W/O JACK, JACK ASSY, HANDLE, JACK, BAG, TOOL, BIT, SCREW DRIVER.
