Toyota CRESSIDA — SPEAKER

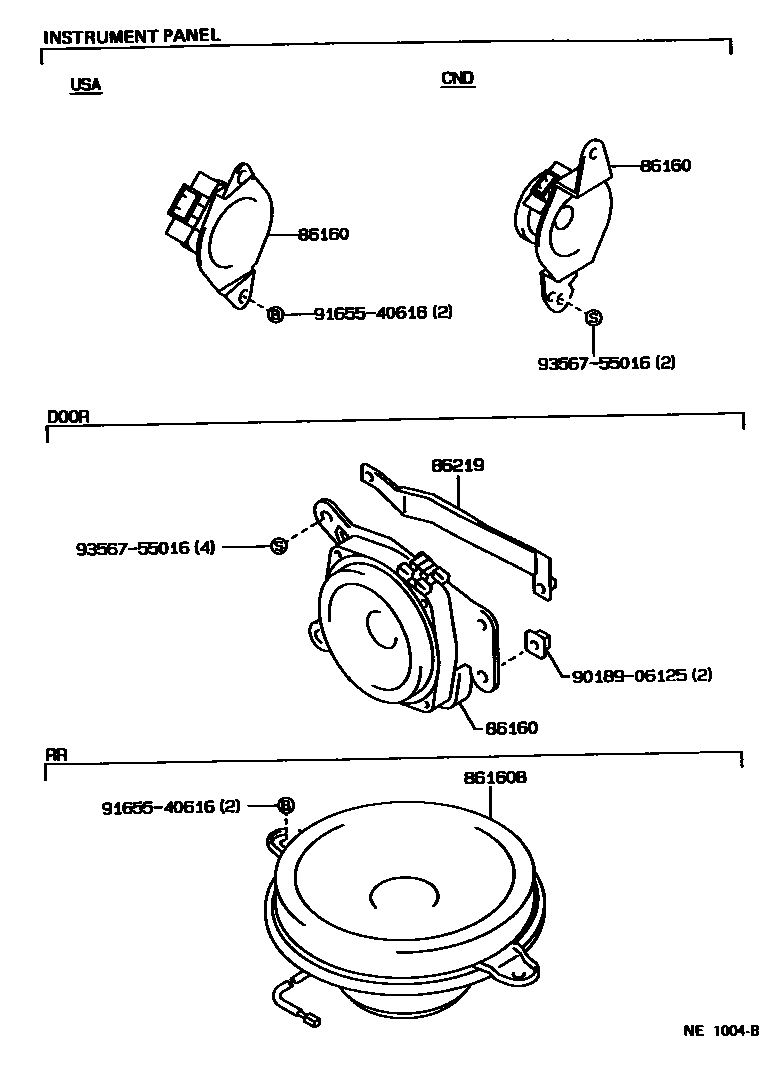

Parts diagram
86160SPEAKER ASSY, FRONT NO.1
main86160-22450×2i198808-199008
INSTRUMENT PANEL
main86160-22451×2i199008-199012
INSTRUMENT PANEL
main86160-22452×2i199012-199207
INSTRUMENT PANEL
main86160-22540×2i198808-198908
INSTRUMENT PANEL
main86160-22541×2i199001-199207
INSTRUMENT PANEL
main86160-22570i198808-198908
RH,DOOR
main86160-22571i199008-199207
RH,DOOR
main86160-22580i198808-198908
LH,DOOR
main86160-22581i199008-199207
LH,DOOR
86160BSPEAKER ASSY, REAR
main86160-22590×2i198808-199001
main86160-22591×2i199001-199207
86219BRACKET, STEREO COMPONENT SPEAKER, NO.1
main86219-22010i198808-199207
RH
main86219-22020i198808-199207
LH
9018906125
main90189-06125
9165540616
main91655-40616
9356755016
main93567-55016

6 parts on this diagram · 1 diagram in section

SPEAKER for Toyota CRESSIDA

This section contains 6 genuine Toyota parts for the SPEAKER system of the Toyota CRESSIDA. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, BRACKET, STEREO COMPONENT SPEAKER, NO.1.
