Toyota CRESSIDA — SPEAKER

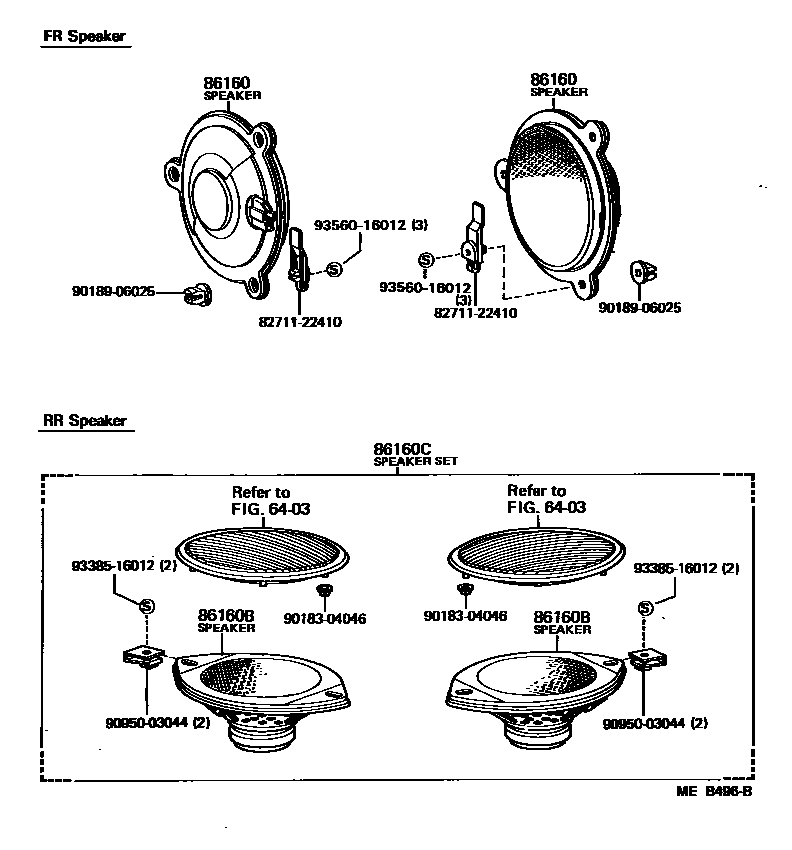

Parts diagram
6403PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
→ Go to FIG 64-03
86160SPEAKER ASSY, FRONT NO.1
main86160-22060i198009-198407
RH
main86160-22070i198009-198407
LH
86160BSPEAKER ASSY, REAR
main86160-20110×2i198009-198011
W/*17
main86160-22140×2i198009-198011
W/*20
main86160-22141×2i198011-198407
W/*20
main86160-22150×2i198011-198407
W/*17
main86160-91601×2i198009-198407
W/*17
main86160-91603×2i198009-198407
W/*20
86160CSPEAKER SET, REAR
main86160-29235i198009-198011
W/*17
main86160-29236i198011-198407
W/*17
main86160-29255i198009-198407
W/*17
main86160-29275i198009-198011
W/*20
main86160-29276i198011-198407
W/*20
main86160-29285i198009-198407
W/*20
8271122410WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22410
9018304046
main90183-04046
9018906025
main90189-06025
9095003044
main90950-03044
9338516012
main93385-16012
9356016012
main93560-16012

10 parts on this diagram · 2 diagrams in section

SPEAKER for Toyota CRESSIDA

This section contains 11 genuine Toyota parts for the SPEAKER system of the Toyota CRESSIDA. Key components include: PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER SET, REAR, WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER).
