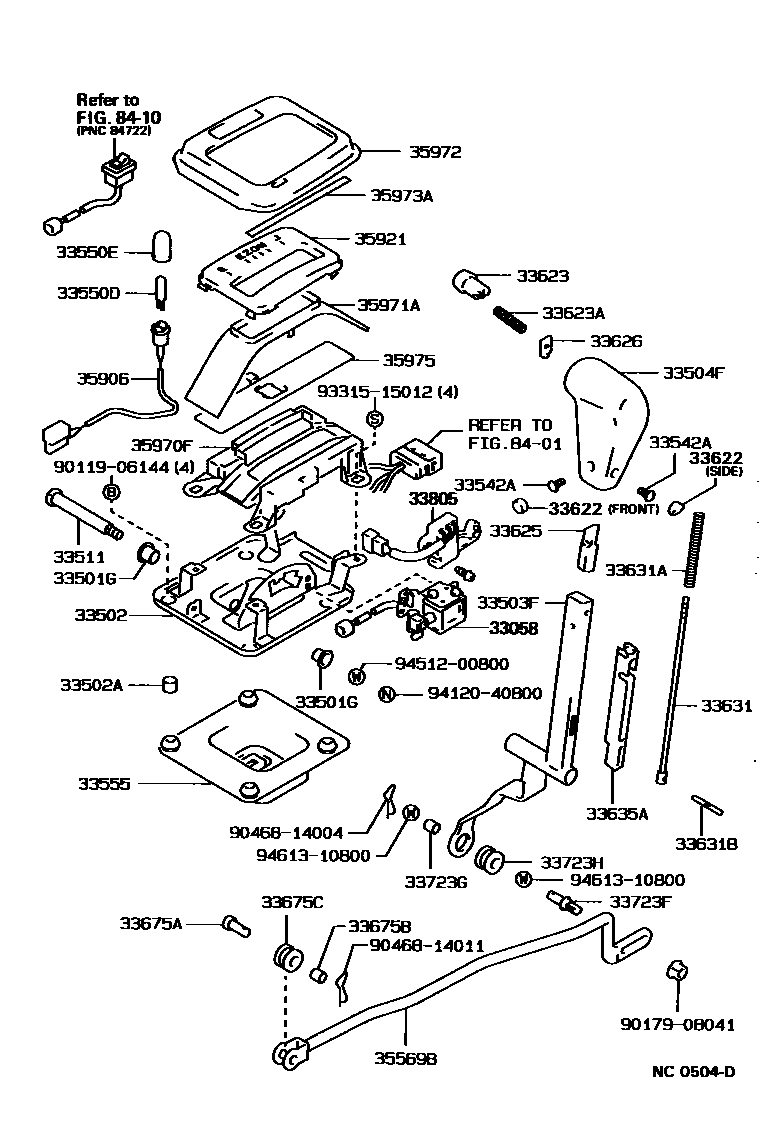

Toyota CRESSIDA — SHIFT LEVER & RETAINER
33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID
33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33502PLATE SUB-ASSY, SHIFT LEVER
33502ACOLLAR (FOR FLOOR SHIFT SETTING)
OD=8.8
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504FKNOB SUB-ASSY, SHIFT LEVER
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
LEATHER,DARK BLUE,TRIM8#
LEATHER,NEW MAROON,NEW MAROON,TRIM3#
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33542ASCREW, W/WASHER(FOR SPRING BACK SHIFT LEVER KNOB)
33550DBULB, POSITION INDICATOR LAMP
12V 1.2W W/O SOCKET
33550ECAP, POSITION INDICATOR LAMP
33555BOOT, SHIFT LEVER
33622COVER, SHIFT LEVER KNOB, NO.1
SIDE,NEW MAROON,TRIM3#
SIDE,MEDIUM GRAY,TRIM1#
SIDE,DARK BLUE,TRIM8#
SIDE,SABLE,TRIM4#
FRONT,DARK BLUE,DARK BLUE,TRIM8#
FRONT,MAROON,NEW MAROON,TRIM3#
FRONT,MEDIUM GRAY,MEDIUM GRAY,TRIM1#
FRONT,SABLE,SABLE,TRIM4#
33623BUTTON, SHIFT LEVER KNOB
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33625SLEEVE, SHIFT LEVER KNOB
33626STOPPER, SHIFT LEVER BUTTON
33631ROD, DETENT
33631ASPRING, COMPRESSION (FOR DETENT ROD)
33631BPIN, SLOTTED SPRING (FOR DETENT ROD)
33635AGUIDE, WIRE, NO.1 (FOR SHIFT LEVER)
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33675BBUSH (FOR TRANSMISSION CONTROL ROD)
33675CGROMMET (FOR TRANSMISSION CONTROL ROD)
33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)
33805PLATE SUB-ASSY, SHIFT LOCK (FOR FLOOR SHIFT)
35569BROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT)
35906WIRE SUB-ASSY, INDICATOR LAMP
35921PLATE, CONTROL POSITION INDICATOR
35970FHOUSING ASSY, POSITION INDICATOR
35971AHOUSING, POSITION INDICATOR, UPPER
35972COVER, POSITION INDICATOR HOUSING
35973AATTACHMENT, POSITION INDICATOR HOUSING COVER
35975COVER, SLIDE (FOR POSITION INDICATOR)
8401SWITCH & RELAY & COMPUTER
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
9011906144
main90119-06144
9017908041
main90179-08041
9046814004
main90468-14004
9046814011
main90468-14011
9331515012
main93315-15012
9412040800
main94120-40800
9451200800
main94512-00800
9461310800
main94613-10800
45 parts on this diagram · 1 diagram in section
SHIFT LEVER & RETAINER for Toyota CRESSIDA
This section contains 45 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota CRESSIDA. Key components include: BRACKET SUB-ASSY, SHIFT LOCK SOLENOID, BUSH (FOR FLOOR SHIFT CONTROL SHAFT), PLATE SUB-ASSY, SHIFT LEVER, COLLAR (FOR FLOOR SHIFT SETTING), LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT).
