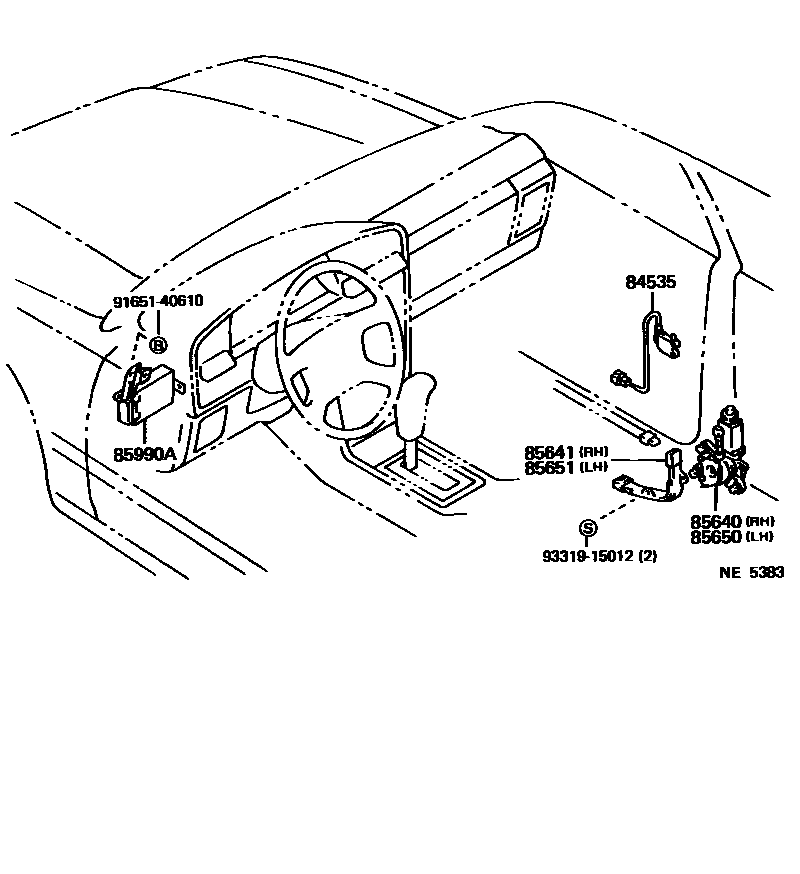

Toyota CRESSIDA — PASSIVE BELT SYSTEM

84535SWITCH, DOOR LOCK

main84535-22080×2iMX83..USA198808-199207

85640MOTOR ASSY, PASSIVE BELT DRIVE, RH

main85640-22020iMX83..USA198808-199207

85641TRACK, PASSIVE BELT DRIVE, RH

main85641-22010iMX83..USA198808-199207

85650MOTOR ASSY, PASSIVE BELT DRIVE, LH

main85650-22020iMX83..USA198808-199207

85651TRACK, PASSIVE BELT DRIVE, LH

main85651-22010iMX83..USA198808-199207

85990ACOMPUTER ASSY, SEAT BELT WARNING (FOR PASSIVE BELT)

main85990-22060iMX83..USA198808-198908

main85990-22061iMX83..USA198908-199207

9165140610

main91651-40610

9331915012

main93319-15012

8 parts on this diagram · 1 diagram in section
