Toyota CRESSIDA — PASSIVE BELT SYSTEM

84535SWITCH, DOOR LOCK

main84535-22020i198408-198808

84536SWITCH, SLIDE RAIL LIMIT, FRONT RH

main84536-22020i198408-198808

84537SWITCH, SLIDE RAIL LIMIT, FRONT LH

main84537-22020i198408-198808

84538SWITCH, SLIDE RAIL LIMIT, REAR RH

main84538-22020i198408-198808

84539SWITCH, SLIDE RAIL LIMIT, REAR LH

main84539-22020i198408-198808

85640MOTOR ASSY, PASSIVE BELT DRIVE, RH

main85640-22010i198408-198808

85641TRACK, PASSIVE BELT DRIVE, RH

main85641-20010i198408-198808

85650MOTOR ASSY, PASSIVE BELT DRIVE, LH

main85650-22010i198408-198808

85651TRACK, PASSIVE BELT DRIVE, LH

main85651-20010i198408-198808

85990ACOMPUTER ASSY, SEAT BELT WARNING (FOR PASSIVE BELT)

main85990-22040i198408-198608

main85990-22041i198608-198710

main85990-22042i198710-198808

89279BCOVER, DIESEL ENGINE CONTROL COMPUTOR

main89279-32010i198711-198808

main89279-32160i198710-198711

9324914006

main93249-14006

9331513008

main93315-13008

9331915012

main93319-15012

9356055012

main93560-55012

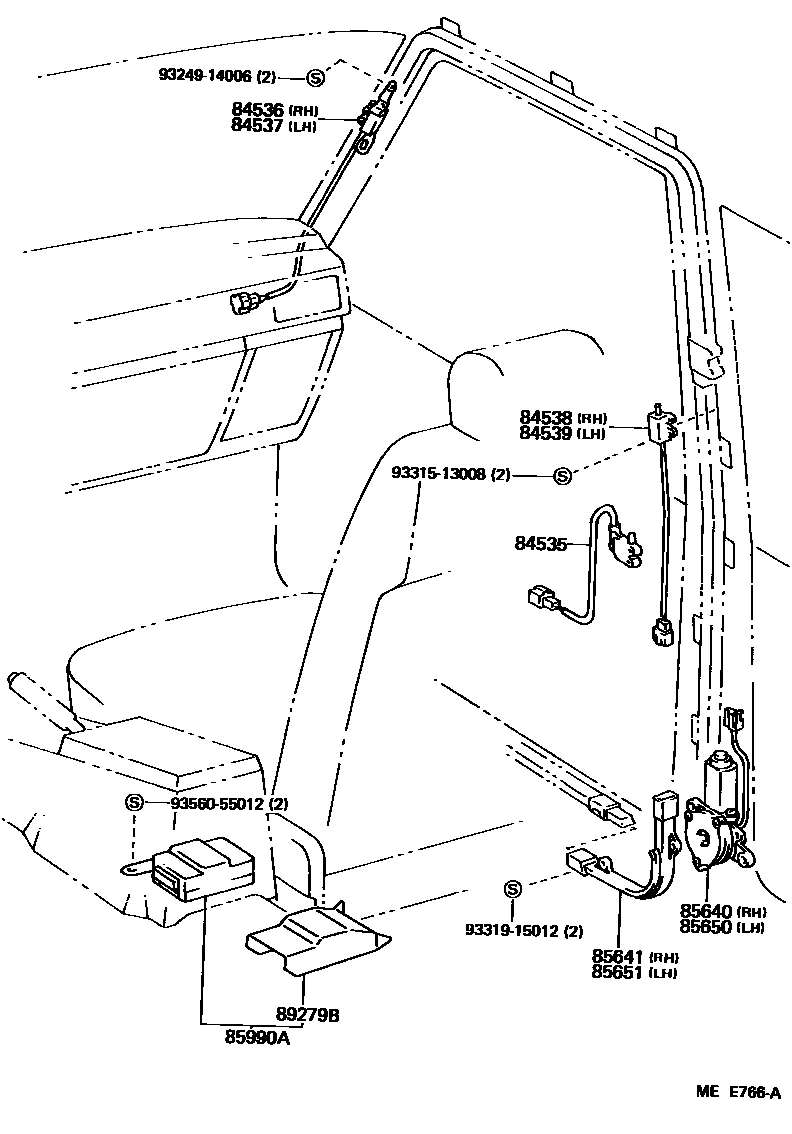

15 parts on this diagram · 1 diagram in section

PASSIVE BELT SYSTEM for Toyota CRESSIDA

This section contains 15 genuine Toyota parts for the PASSIVE BELT SYSTEM system of the Toyota CRESSIDA. Key components include: SWITCH, DOOR LOCK, SWITCH, SLIDE RAIL LIMIT, FRONT RH, SWITCH, SLIDE RAIL LIMIT, FRONT LH, SWITCH, SLIDE RAIL LIMIT, REAR RH, SWITCH, SLIDE RAIL LIMIT, REAR LH.
