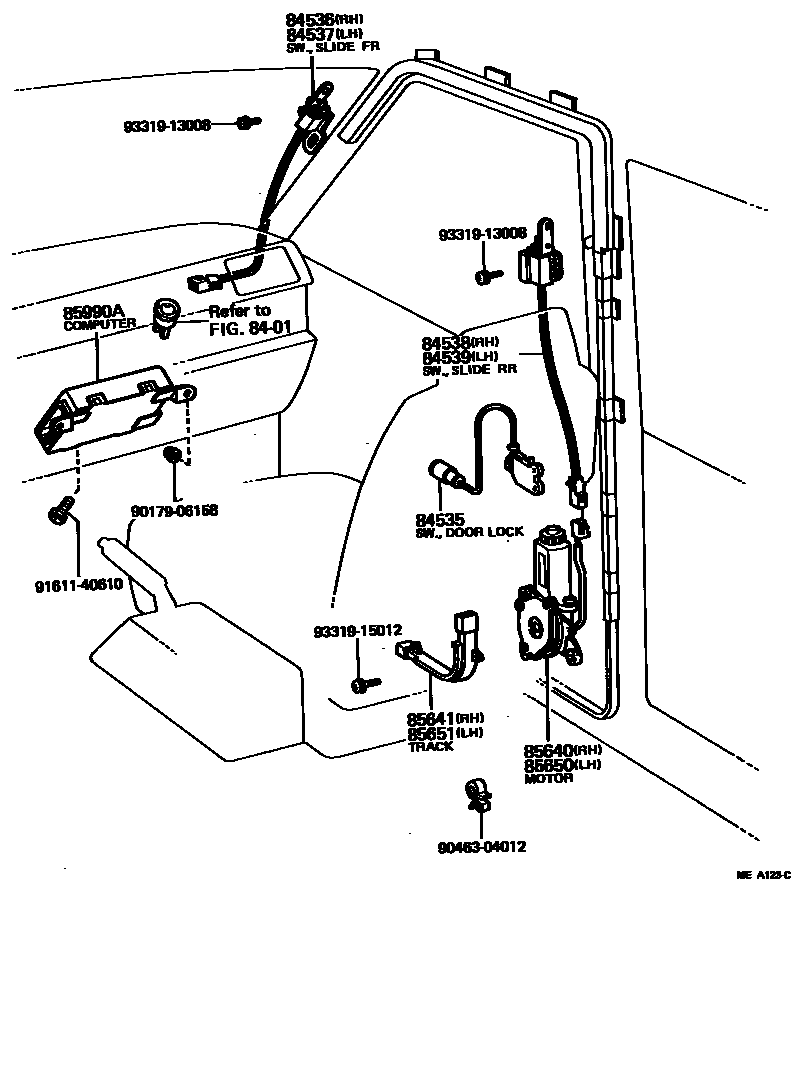

Toyota CRESSIDA — PASSIVE BELT SYSTEM

8401

84535SWITCH, DOOR LOCK

main84535-20010×2iMX62..USA198009-198208

main84535-22010×2iMX6#..USA198208-198407

84536SWITCH, SLIDE RAIL LIMIT, FRONT RH

main84536-22010iMX62..USA198009-198208

main84536-22012iMX6#..USA198208-198407

84537SWITCH, SLIDE RAIL LIMIT, FRONT LH

main84537-22010iMX62..USA198009-198208

main84537-22012iMX6#..USA198208-198407

84538SWITCH, SLIDE RAIL LIMIT, REAR RH

main84538-22010iMX6#..USA198009-198407

84539SWITCH, SLIDE RAIL LIMIT, REAR LH

main84539-22010iMX6#..USA198009-198407

85640MOTOR ASSY, PASSIVE BELT DRIVE, RH

main85640-22010iMX6#..USA198009-198407

85641TRACK, PASSIVE BELT DRIVE, RH

main85641-20010iMX6#..USA198009-198407

85650MOTOR ASSY, PASSIVE BELT DRIVE, LH

main85650-22010iMX6#..USA198009-198407

85651TRACK, PASSIVE BELT DRIVE, LH

main85651-20010iMX6#..USA198009-198407

85990ACOMPUTER ASSY, SEAT BELT WARNING (FOR PASSIVE BELT)

main85990-22020iMX62..USA198009-198110

main85990-22021iMX62..USA198110-198208

main85990-22030iMX6#..USA198208-198407

9017906158

main90179-06158

9046304012

main90463-04012

9161140610

main91611-40610

9331913008

main93319-13008

9331915012

main93319-15012

16 parts on this diagram · 1 diagram in section
