Toyota CRESSIDA — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

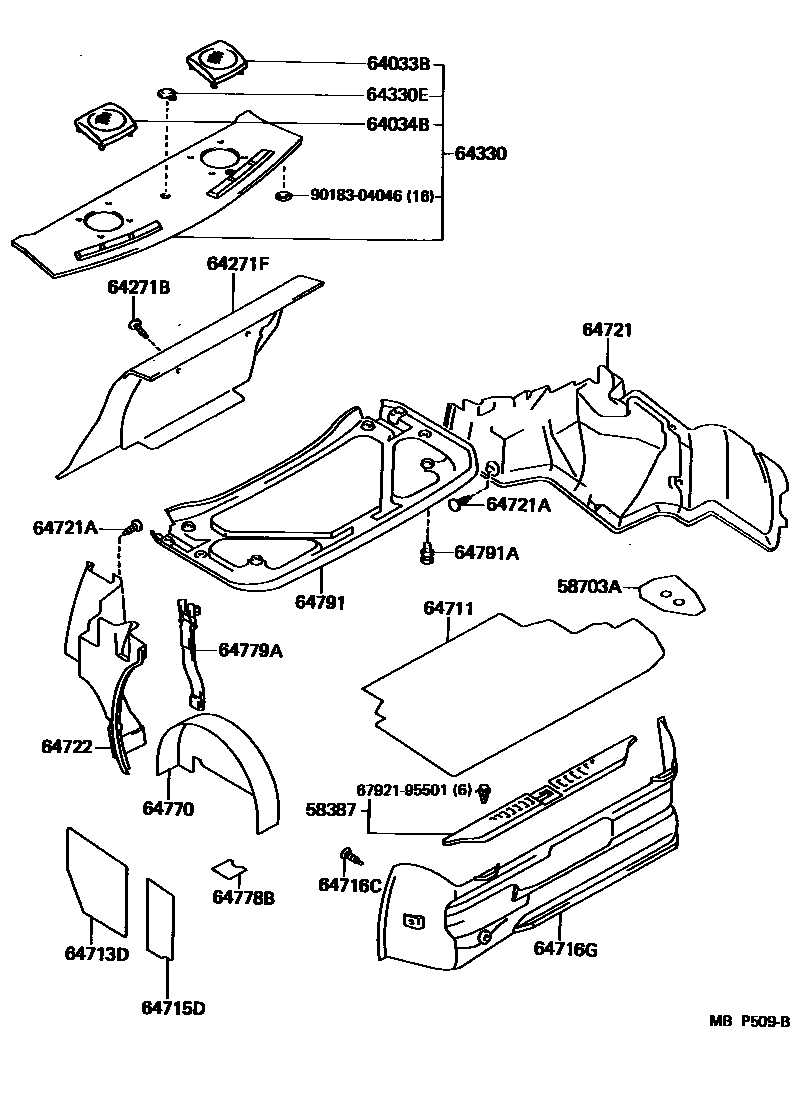

Parts diagram
58387PLATE, REAR FLOOR FINISH
main58387-22010-03i198808-199207
GRAY,TRIM1#,3#,4#,8#
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
main58703-22060i198808-199207
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
main64033-22070-02i198808-199207
NEW MAROON,TRIM3#
main64033-22070-03i199008-199207
MEDIUM GRAY,TRIM1#
main64033-22070-04i198808-199008
DARK BLUE,TRIM8#
main64033-22070-06i198908-199008
SABLE,TRIM4#
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
main64033-22070-02i198808-199207
NEW MAROON,TRIM3#
main64033-22070-03i198808-199008
MEDIUM GRAY,TRIM1#
main64033-22070-04i199008-199207
DARK BLUE,TRIM8#
main64033-22070-06i198908-199008
SABLE,TRIM4#
64271BCLIP(FOR ROOM PARTITION BOARD)
main90467-06070-13×2i198808-199207
GRAY,TRIM1#,3#,4#,8#
64271FTRIM, ROOM PARTITION
main64271-22100-03i198808-198908
GRAY,TRIM3#,4#,8#
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-22690-02i198808-199008
NEW MAROON,TRIM3#
main64330-22690-03i198808-199008
MEDIUM GRAY,TRIM1#
main64330-22690-04i198808-199008
DARK BLUE,TRIM8#
main64330-22690-06i198808-198908
SABLE,TRIM4#
main64330-22710-02i199008-199207
NEW MAROON,TRIM3#
main64330-22710-03i199008-199207
MEDIUM GRAY,TRIM1#
main64330-22710-06i199008-199207
SABLE,TRIM4#
main64330-22710-14i199008-199207
DARK BLUE,TRIM8#
64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)
main90950-01436-23×3i199008-199207
MEDIUM GRAY,TRIM1#
main90950-01436-26×3i199008-199207
SABLE,TRIM4#
main90950-01436-34×3i199008-199207
DARK BLUE,TRIM8#
main90950-01436-42×3i199008-199207
NEW MAROON,TRIM3#
64711MAT, LUGGAGE COMPARTMENT FLOOR
main64711-22160-03i198808-198908
GRAY,TRIM3#,4#,8#
64713DCOVER, LUGGAGE COMPARTMENT TRIM, FRONT LH
main64713-22050-03i198808-198908
GRAY,TRIM3#,4#,8#
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
main64715-22100-03i198808-198908
GRAY,TRIM3#,4#,8#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
main90467-05020-13×9i198808-198908
GRAY,TRIM3#,4#,8#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
main64716-22210-03i198808-199207
GRAY,TRIM1#,3#,4#,8#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
main64721-22280-03i198808-198908
GRAY,TRIM3#,4#,8#
main64721-22330-03i199008-199207
W(*66),GRAY,TRIM1#,3#,4#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
main90467-07042-B0×5i198908-199008
LIGHT GRAY,TRIM3#,8#
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
main64722-22280-03i198808-198908
GRAY,TRIM3#,4#,8#
64770COVER ASSY, SPARE WHEEL
main64770-22070-03i198808-198908
GRAY,TRIM3#,4#,8#
64778BPROTECTOR, SPARE WHEEL
main64778-22010i198808
64779ASTOPPER, SPARE WHEEL COVER
main64779-22010i198808-199008
64791COVER, BACK DOOR TRIM
main64791-22020-03i198808-198908
GRAY,TRIM3#,4#,8#
64791ACLIP(FOR BACK DOOR TRIM)
main90467-07059-03×16i198808-198908
GRAY,TRIM3#,4#,8#
6792195501RETAINER, FRONT DOOR SCUFF PLATE
main67921-95501
9018304046
main90183-04046

23 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota CRESSIDA

This section contains 23 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota CRESSIDA. Key components include: PLATE, REAR FLOOR FINISH, COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH, GRILLE SUB-ASSY, REAR SPEAKER, RH, GRILLE SUB-ASSY, REAR SPEAKER, LH, CLIP(FOR ROOM PARTITION BOARD).
