Toyota CRESSIDA — MOUNTING

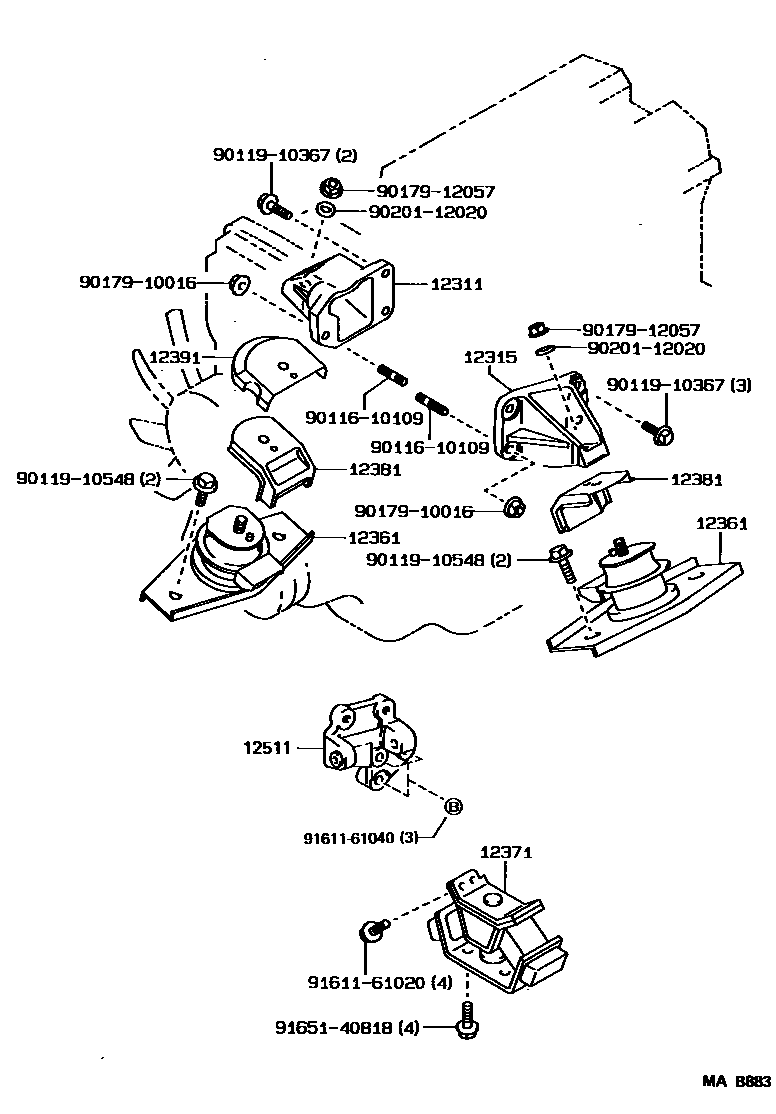

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-42030i198808-199002

main12311-42060i199002-199207

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-42030i198808-199002

main12315-42060i199002-199207

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-42040×2i198808-198908

main12361-42060×2i199002-199207

main12361-70151×2i198908-199002

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-42020i198808-199207

12381STABILIZER, ENGINE MOUNTING

main12381-42020×2i198808-199002

main12381-42040×2i199002-199207

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-42011i199004-199104

main12391-46020i199104-199207

12511BRACKET, ALTERNATOR, NO.1

main12511-42010i198808-199207

9011610109

main90116-10109

9011910367

main90119-10367

9011910548

main90119-10548

9017910016

main90179-10016

9017912057

main90179-12057

9020112020

main90201-12020

9161161020

main91611-61020

9161161040

main91611-61040

9165140818

main91651-40818

16 parts on this diagram · 1 diagram in section

MOUNTING for Toyota CRESSIDA

This section contains 16 genuine Toyota parts for the MOUNTING system of the Toyota CRESSIDA. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1, STABILIZER, ENGINE MOUNTING.
