Toyota CRESSIDA — MOUNTING

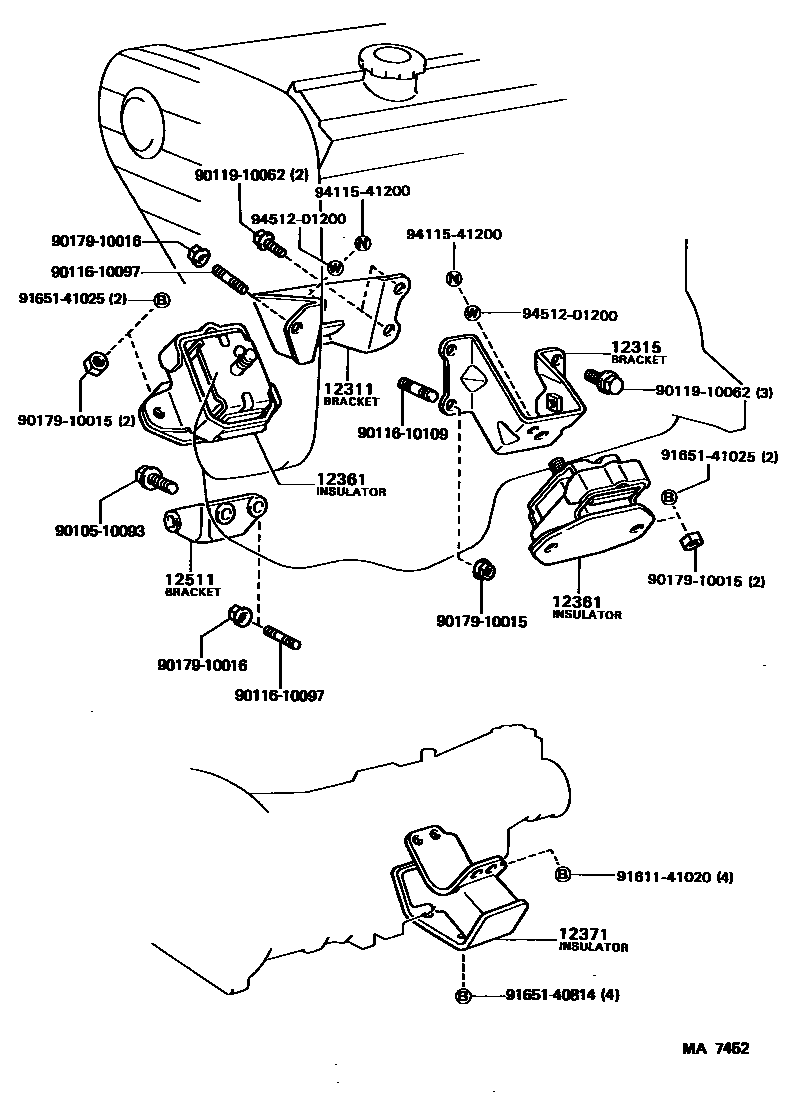

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-41051i198408-198808

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-41071i198408-198808

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-41082×2i198408-198808

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-43020i198408-198808

12511BRACKET, ALTERNATOR, NO.1

main12511-43010i198408-198808

9010510093

main90105-10093

9011610097

main90116-10097

9011610109

main90116-10109

9011910062

main90119-10062

9017910015

main90179-10015

9017910016

main90179-10016

9161141020

main91611-41020

9165140814

main91651-40814

9165141025

main91651-41025

9411541200

main94115-41200

9451201200

main94512-01200

16 parts on this diagram · 1 diagram in section

MOUNTING for Toyota CRESSIDA

This section contains 16 genuine Toyota parts for the MOUNTING system of the Toyota CRESSIDA. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1, BRACKET, ALTERNATOR, NO.1.
