Toyota CRESSIDA — MOUNTING

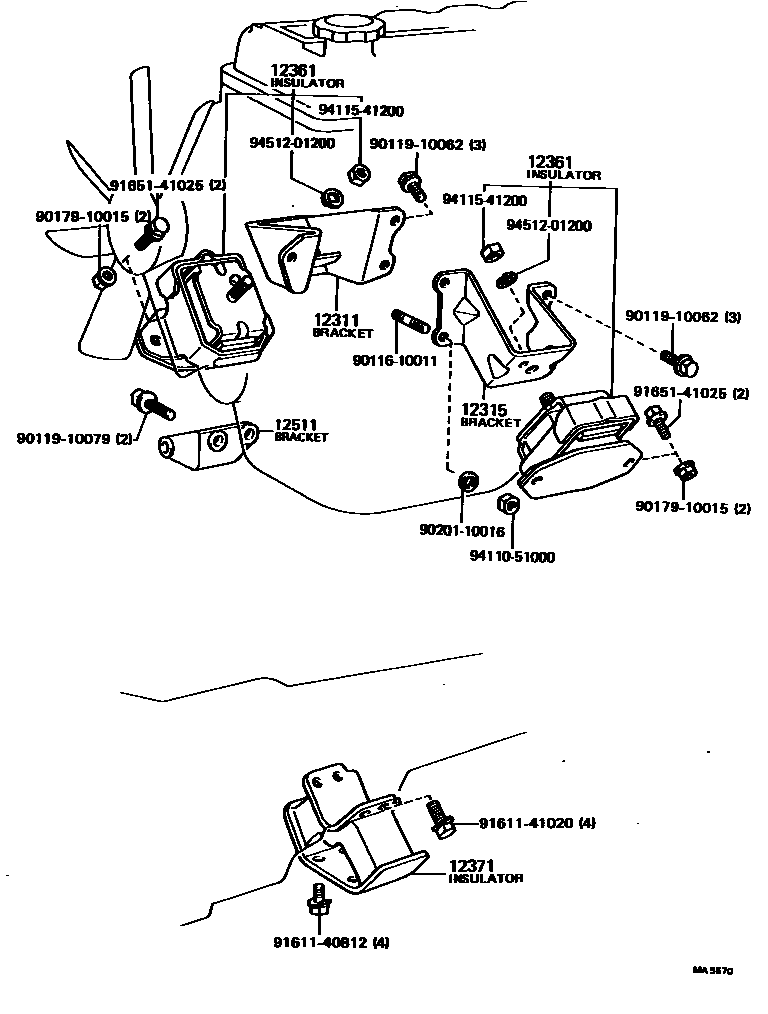

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-41051i198009-198407

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-41070i198009-198206

main12315-41071i198206-198407

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-41082×2i198208-198407

main12361-49125×2i198009-198208

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-34020i198009-198407

12511BRACKET, ALTERNATOR, NO.1

main12511-41030i198009-198308

main12511-43010i198308-198407

9011610011

main90116-10011

9011910062

main90119-10062

9011910079

main90119-10079

9017910015

main90179-10015

9020110016

main90201-10016

9161140812

main91611-40812

9161141020

main91611-41020

9165141025

main91651-41025

9411051000

main94110-51000

9411541200

main94115-41200

9451201200

main94512-01200

16 parts on this diagram · 2 diagrams in section

MOUNTING for Toyota CRESSIDA

This section contains 17 genuine Toyota parts for the MOUNTING system of the Toyota CRESSIDA. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1, BRACKET, ALTERNATOR, NO.1.
