Toyota CRESSIDA — MOUNTING

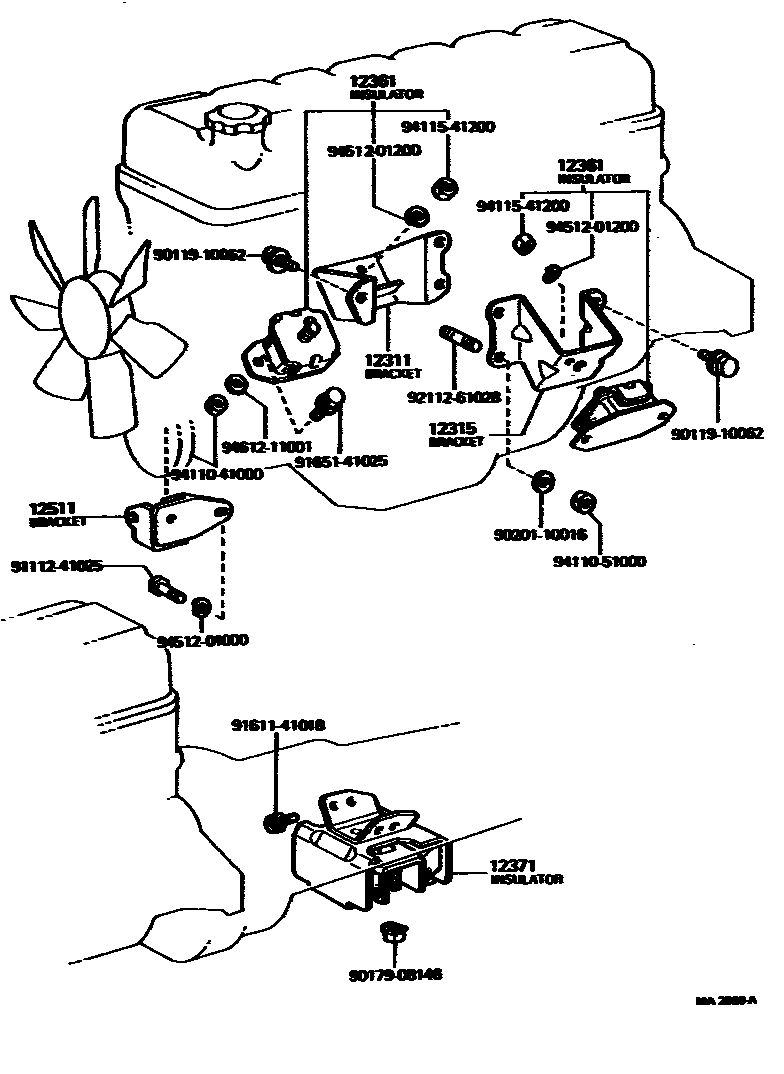

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-41051i197708-198008

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-41040i197708-197804

main12315-41041i197804-198008

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-49095×2i197708-197808

main12361-49125×2i197808-198008

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-34020i197808-198008

main12371-41060i197708-197808

12511BRACKET, ALTERNATOR, NO.1

main12511-41012i197708-197908

main12511-41030i197908-198008

9011910062

main90119-10062

9017908146

main90179-08146

9020110016

main90201-10016

9111241025

main91112-41025

9161141018

main91611-41018

9165141025

main91651-41025

9211261028

main92112-61028

9411041000

main94110-41000

9411051000

main94110-51000

9411541200

main94115-41200

9451201000

main94512-01000

9451201200

main94512-01200

9461211001

main94612-11001

18 parts on this diagram · 2 diagrams in section

MOUNTING for Toyota CRESSIDA

This section contains 23 genuine Toyota parts for the MOUNTING system of the Toyota CRESSIDA. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1, BRACKET, ALTERNATOR, NO.1.
