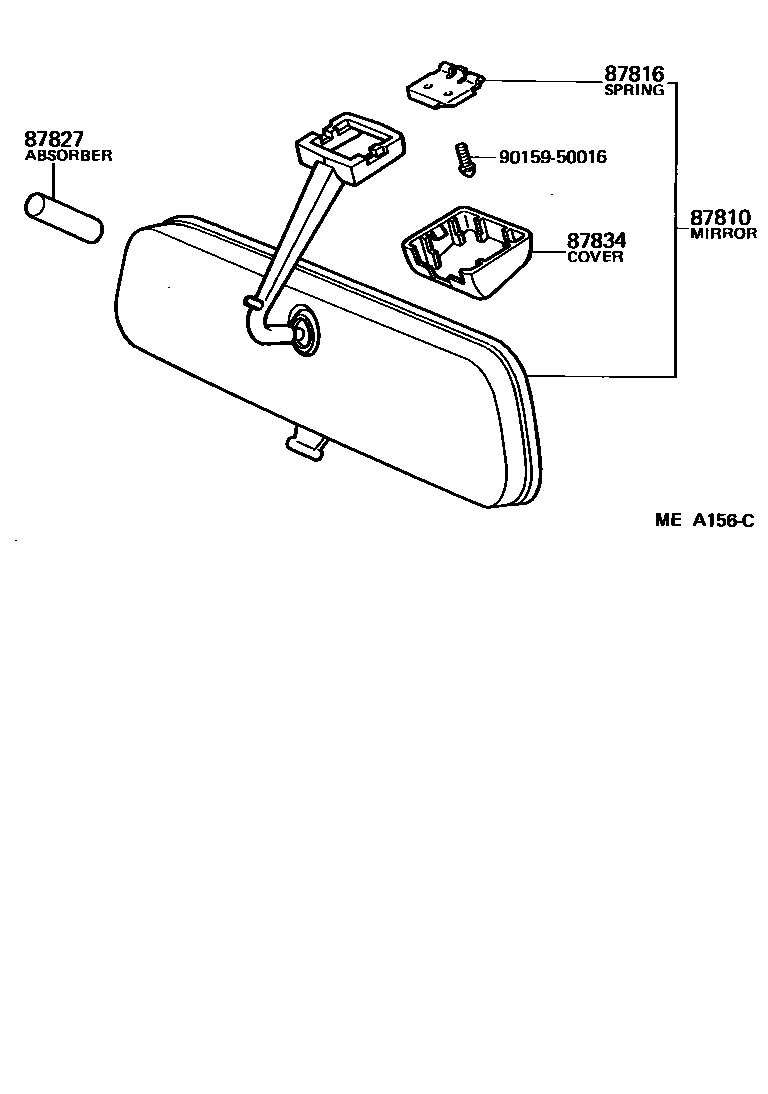

Toyota CRESSIDA — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-22170-01i198009-198208

BLACK,BLACK

main87810-22170-02i198208-198407

DEEP MAROON,RED/MAROON

main87810-22170-04i198009-198208

BLUE,BLUE

main87810-22170-06i198009-198407

DARK BROWN,BROWN

main87810-22170-14i198208-198407

BLUE,BLUE

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i198009-198407

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-23010i198009-198407

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-04i198009-198208

BLUE,BLUE

main87834-20080-08i198009-198407

IVORY,IVORY

main87834-20080-14i198208-198407

BLUE,BLUE

9015950016

main90159-50016

5 parts on this diagram · 3 diagrams in section

MIRROR for Toyota CRESSIDA

This section contains 15 genuine Toyota parts for the MIRROR system of the Toyota CRESSIDA. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH.
