Toyota CRESSIDA — METER

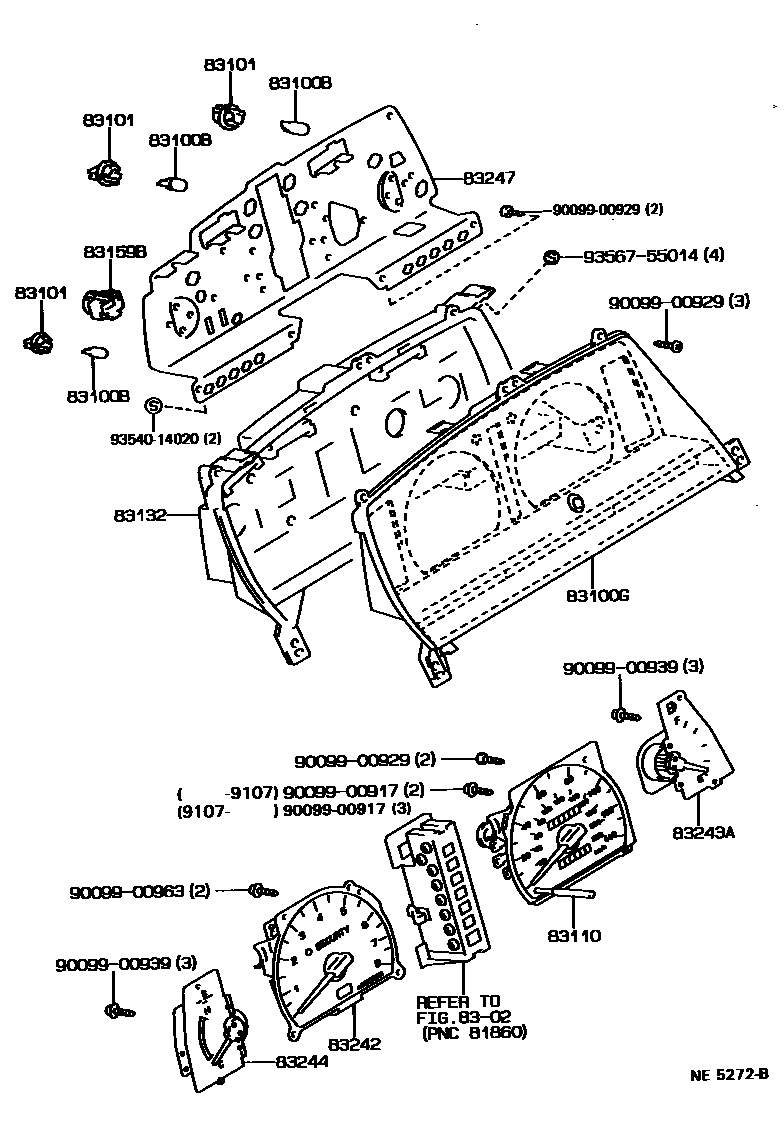

Parts diagram
8302INDICATOR
→ Go to FIG 83-02
83100BBULB, COMBINATION METER, NO.1
main83109-24030×4i198808-199207
12V3.4W W(GREEN CAP),SOCKET:83101-14030
main83109-30060i198808-199008
12V 2.0W,W/GREEN CAP,SOCKET:83101-14040
main83119-24030×2i198909-199008
12V 1.2W W(SOCKET),TURN
main90981-11018×10i198808-199008
12V 1.2W W/O SOCKET,W(DIGITAL SPEEDOMETER),SOCKET:83101-14040
main99132-12034×3i198808-199207
12V 3.4W,SOCKET:83101-14030
83100GGLASS, COMBINATION METER
main83133-22730i198808-199207
main83133-22850i198808-199003
W(DIGITAL SPEEDOMETER)
main83133-22870i198808-199003
W(DIGITAL SPEEDOMETER)
main83133-2A090i199003-199008
W(DIGITAL SPEEDOMETER)
main83133-2A110i199003-199008
W(DIGITAL SPEEDOMETER)
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-14030×3i199008-199207
BULB:12V 3.4W
main83101-14040×11i198808-199207
BULB:12V 1.2W
83110SPEEDOMETER ASSY
main83110-2A620i198808-199008
main83110-2A621i199008-199102
main83110-2A622i199102-199107
main83110-2A623i199107-199207
main83110-2A630i198808-199008
main83110-2A631i199008-199107
main83110-2A632i199107-199207
83132CASE, COMBINATION METER
main83132-2A130i198808-199008
W(DIGITAL SPEEDOMETER)
main83132-2A150i198808-199008
W(DIGITAL SPEEDOMETER)
main83132-2A190i198808-199008
main83132-2A210i198808-199008
main83132-2A430i199008-199207
main83132-2A450i199008-199207
83159SWITCH, METER, NO.1
main83159-22210i198808-199008
83159BRELAY ASSY, METER
main83159-22170i198808-199207
83242TACHOMETER ASSY, ENGINE
main83242-22710i198808-199008
main83242-22730i198808-199008
main83242-22830i199008-199207
main83242-22850i199008-199207
83243AGAUGE SUB-ASSY, FUEL RECEIVER
main83243-22390i198808-199008
main83243-22450i199008-199207
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
main83244-22450i198808-199008
main83244-22470i199008-199207
83247PLATE, METER CIRCUIT
main83247-2A710i198808-199008
W(DIGITAL SPEEDOMETER)
main83247-2A750i198808-199107
main83247-2A770i198808-199107
main83247-2C050i198808-199008
W(DIGITAL SPEEDOMETER)
main83247-2C170i199107-199207
main83247-2C190i199107-199207
9009900917
main90099-00917
9009900929
main90099-00929
9009900939
main90099-00939
9009900963
main90099-00963
9354014020
main93540-14020
9356755014
main93567-55014

18 parts on this diagram · 3 diagrams in section

METER for Toyota CRESSIDA

This section contains 29 genuine Toyota parts for the METER system of the Toyota CRESSIDA. Key components include: INDICATOR, BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY.
