Toyota CRESSIDA — METER

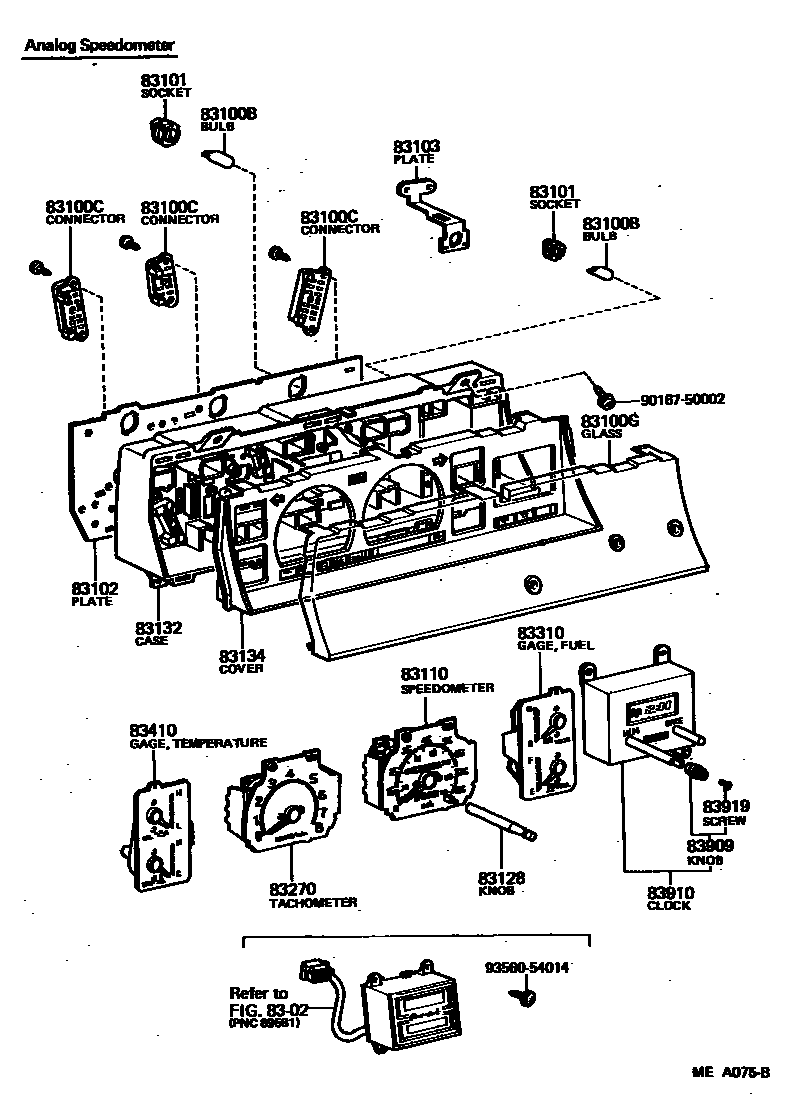

Parts diagram
8302INDICATOR
→ Go to FIG 83-02
83100BBULB, COMBINATION METER, NO.1
main90981-11018×15i198009-198407
12V 1.2W W/O SOCKET,12V 1.4W
main99132-12034×7i198009-198407
12V 3.4W,12V 3.4W
83100CCONNECTOR, COMBINATION METER
main90980-08208i198009-198407
7-POLE
main90980-08209×2i198009-198407
13-POLE
83100GGLASS, COMBINATION METER
main83133-22430i198208-198407
W/*DS
main83138-22080i198009-198407
W/*AS
main83138-22100i198108-198208
W/*CC
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-12020i198208-198407
12V 3.4W,LONG
main83101-14040×14i198009-198407
12V 1.4W
main83101-20040×7i198009-198407
12V 3.4W
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
main83247-22770i198208-198407
W/*DS
main83247-2A090i198009-198208
main83247-2A120i198208-198407
W/*AS
83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2
main83247-22790i198208-198407
W/*DS
main83247-2A110i198009-198407
W/*AS
83110SPEEDOMETER ASSY
main83110-14620i198208-198308
W/*DS
main83110-14621i198308-198407
W/*DS
main83110-22500i198009-198108
main83110-22502i198308-198407
W/*AS
main83110-22510i198009-198108
main83110-22511i198108-198308
main83110-22512i198308-198407
main83110-2A070i198108-198308
W/*AS
83128KNOB, TRIP COUNTER
main83128-2A010i198009-198407
W/*AS
main83128-32030i198208-198407
W/*DS
83132CASE, COMBINATION METER
main83132-22240i198208-198407
W/*AS
main83132-22350i198208-198407
W/*DS
main83132-2A030i198009-198104
main83132-2A031i198104-198108
83134COVER, COMBINATION METER, NO.1
main83133-22410i198208-198407
W/*DS
main83134-22780i198208-198308
main83134-22840i198308-198407
main83134-22860i198308-198407
W/*AS
main83134-2A080i198009-198108
main83134-2A081i198108-198208
83270TACHOMETER ASSY, ENGINE
main83242-22120i198009-198208
main83242-22300i198208-198302
W/*AS,MARK=R/MIN
main83242-22320i198302-198407
W/*AS,MARK=RPM
main83270-24020i198208-198407
W/*DS
83310GAGE ASSY, FUEL RECEIVER
main83243-22300i198208-198407
W/*AS
main83243-2A020i198009-198208
main83310-14091i198208-198404
W/*DS
main83310-14092i198404-198407
W/*DS
83410GAGE ASSY, WATER TEMPERATURE RECEIVER
main83244-2A020i198009-198104
main83244-2A021i198104-198407
W/*AS
83909KNOB, CLOCK
main83909-22180i198009-198407
W/*AS
83910CLOCK ASSY
main83910-22160i198009-198407
W/*AS
83919SCREW, CLOCK
main83919-12230i198009-198407
W/*AS
9016750002
main90167-50002
9356054014
main93560-54014

19 parts on this diagram · 4 diagrams in section

METER for Toyota CRESSIDA

This section contains 48 genuine Toyota parts for the METER system of the Toyota CRESSIDA. Key components include: INDICATOR, BULB, COMBINATION METER, NO.1, CONNECTOR, COMBINATION METER, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB.
