Toyota CRESSIDA — MAT & CARPET

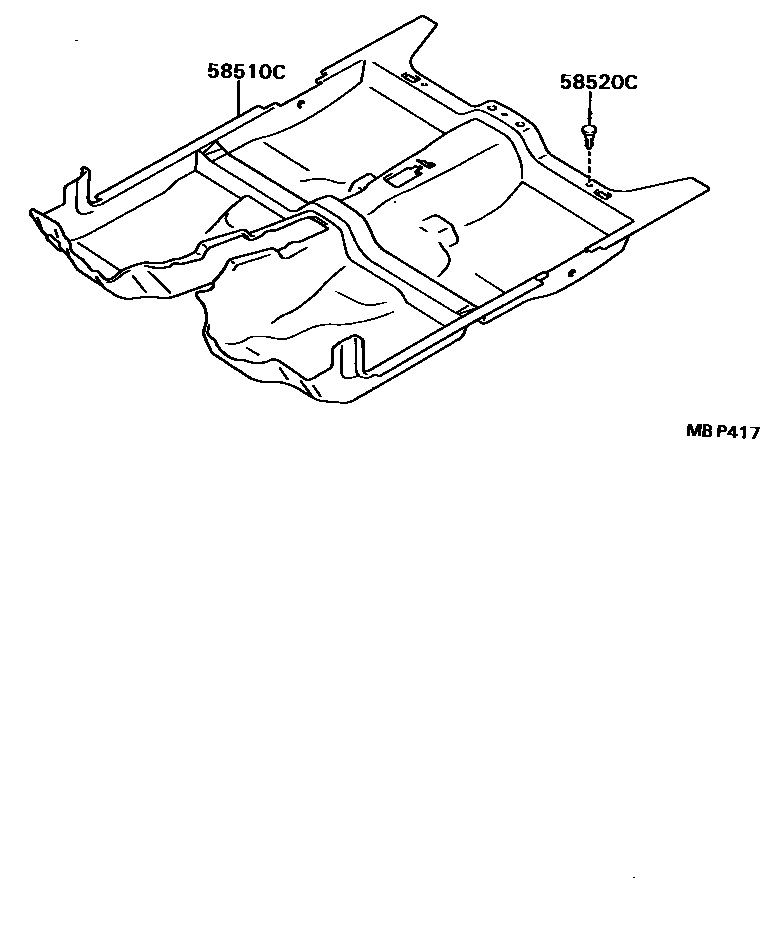

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-2A380-02i198808-198809

NEW MAROON,TRIM3#

main58510-2A380-03i198808-198809

MEDIUM GRAY,TRIM1#

main58510-2A380-04i198808-198809

DARK BLUE,TRIM8#

main58510-2A380-06i198808-198809

SABLE,TRIM4#

main58510-2A390-02i198808-198809

NEW MAROON,TRIM3#

main58510-2A390-04i198808-198809

DARK BLUE,TRIM8#

main58510-2A390-06i198808-198809

SABLE,TRIM4#

main58510-2A530-02i198808-199207

NEW MAROON,TRIM3#

main58510-2A530-03i198808-199207

MEDIUM GRAY,TRIM1#

main58510-2A530-04i198808-199207

DARK BLUE,TRIM8#

main58510-2A530-06i198808-199207

SABLE,TRIM4#

main58510-2A540-02i198808-199207

NEW MAROON,TRIM3#

main58510-2A540-03i199008-199207

MEDIUM GRAY,TRIM1#

main58510-2A540-04i198808-199008

DARK BLUE,TRIM8#

main58510-2A540-06i198808-198908

SABLE,TRIM4#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06089-02×2i198808-199207

NEW MAROON,TRIM3#,OD=20

main90467-06089-03×2i199008-199207

MEDIUM GRAY,TRIM1#,OD=20

main90467-06089-04×2i198808-199008

DARK BLUE,TRIM8#,OD=20

main90467-06089-06×2i199008-199207

SABLE,TRIM4#,OD=20

main90467-08056-01×2i198808-199207

BLACK,TRIM1#,3#,4#,8#,OD=16

main90467-11025×3i198808-199207

OD=25

2 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota CRESSIDA

This section contains 2 genuine Toyota parts for the MAT & CARPET system of the Toyota CRESSIDA. Key components include: CARPET ASSY, FRONT FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET).
