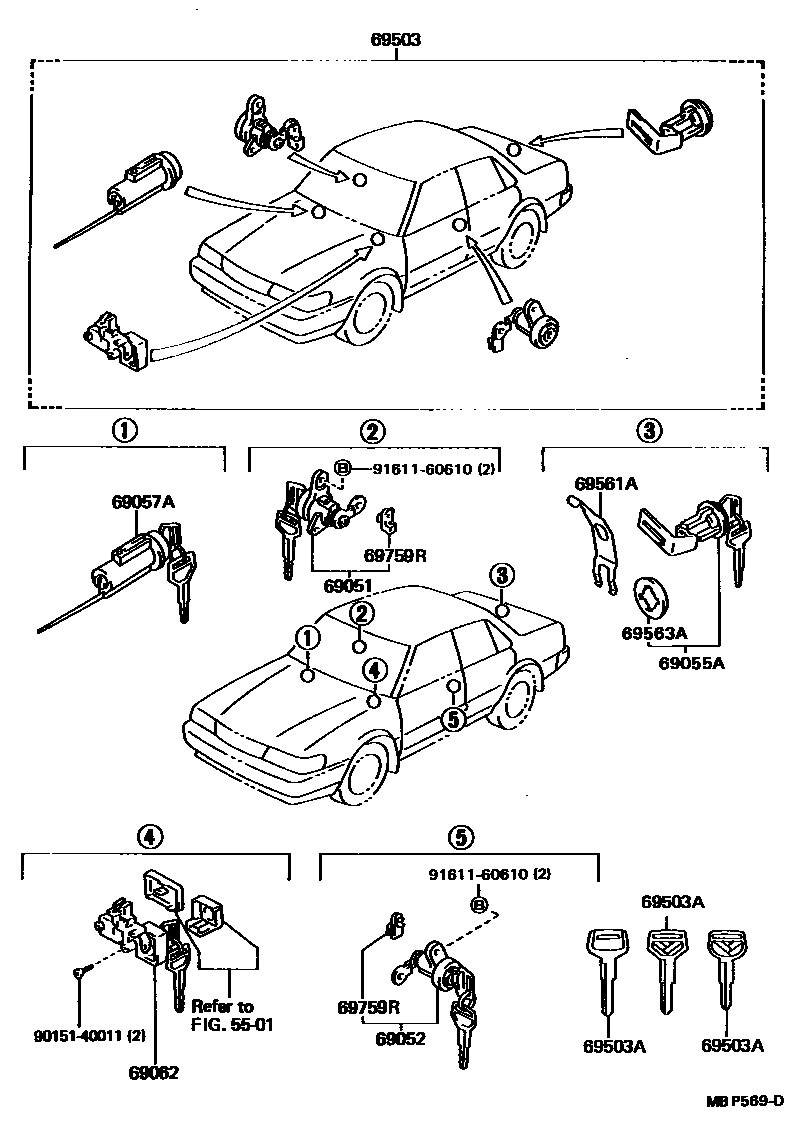

Toyota CRESSIDA — LOCK CYLINDER SET

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-22210i198808-199207

main69051-22240i198808-199207

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-22220i198808-199207

main69052-22240i198808-199207

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-22280i198808-199207

main69055-22310i198808-199207

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-22150i198808-199207

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-22100-02i198808-199207

NEW MAROON,TRIM3#

main69056-22100-03i198808-199207

MEDIUM GRAY,TRIM1#

main69056-22100-04i198808-199207

DARK BLUE,TRIM8#

main69056-22100-06i198808-199207

SABLE,TRIM4#

main69056-22110i198808-199207

69503CYLINDER SET, LOCK

main69005-22690-02i198808-199207

NEW MAROON,TRIM3#

main69005-22690-03i198808-199207

MEDIUM GRAY,TRIM1#

main69005-22690-04i198808-199207

DARK BLUE,TRIM8#

main69005-22690-06i198808-199207

SABLE,TRIM4#

main69005-22700i198808-199207

69503AKEY, BLANK

main90999-00130i198808-199207

MASTER KEY

main90999-00132i198808-199207

MASTER KEY,W(*68)

main90999-00137i198808-199207

SUB KEY

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69561-22060i198808

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-32020i198811-199008

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-22080i198808-199207

main69759-22090i198808-199207

9015140011

main90151-40011

9161160610

main91611-60610

13 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota CRESSIDA

This section contains 13 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota CRESSIDA. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK.
