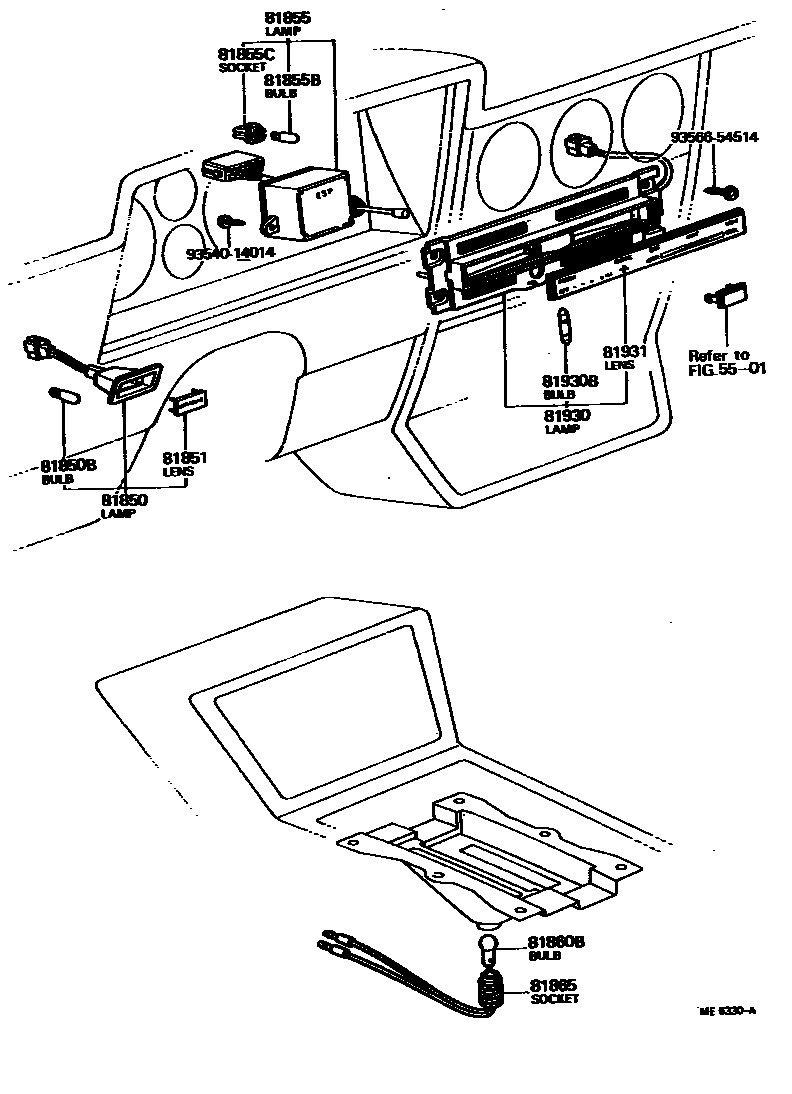

Toyota CRESSIDA — INDICATOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

81850LAMP ASSY, INDICATOR

main81850-22030-01i197708-197711

BLACK,BLACK

main81850-22030-03i197708-197711

GRAY,GRAY

main81850-22030-05i197708-197711

BEIGE,BEIGE

81850BBULB, INDICATOR LAMP

main90981-11018i197708-197711

12V 1.2W W/O SOCKET,12V 1.4W

81851LENS, INDICATOR LAMP

main81851-22030-01i197708-197711

BLACK,BLACK

main81851-22030-03i197708-197711

GRAY,GRAY

main81851-22030-05i197708-197711

BEIGE,BEIGE

81855LAMP ASSY, INDICATOR (FOR OK MONITER)

main81820-22030i197708-197908

main81820-22070i197908-198008

81855BBULB, INDICATOR LAMP (FOR OK MONITER)

main90981-11018i197708-198008

12V 1.4W

81855CSOCKET & WIRE, INDICATOR LAMP

main83101-22010i197708-198008

81860BBULB, TRANSMISSION INDICATOR LAMP

main99132-11034i197708-198008

12V 3.4W,12V 3.4W

81865SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP

main35906-22020i197708-198008

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-22050i197708-197808

main81930-22051i197808-198008

main81930-22080i197708-197808

W/BOOST VENTILATOR

main81930-22081i197808-198008

W/BOOST VENTILATOR

main81930-22090i197808-198008

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90981-11010i197708-198008

12V 2W,12V 2W

81931LENS, HEATER CONTROL INDICATOR

main81931-22050i197708-197808

main81931-22051i197808-198008

main81931-22080i197708-197808

W/BOOST VENTILATOR

main81931-22081i197808-198008

W/BOOST VENTILATOR

main81931-22090i197808-198008

9354014014

main93540-14014

9356654514

main93566-54514

14 parts on this diagram · 1 diagram in section

INDICATOR for Toyota CRESSIDA

This section contains 14 genuine Toyota parts for the INDICATOR system of the Toyota CRESSIDA. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, LAMP ASSY, INDICATOR, BULB, INDICATOR LAMP, LENS, INDICATOR LAMP, LAMP ASSY, INDICATOR (FOR OK MONITER).
