Toyota CRESSIDA — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01115×6i198408-198808

P16R,P16R

19500COIL ASSY, IGNITION

main90919-02154i198408-198808

19519COVER, IGNITION COIL

main19519-43010i198408-198808

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21355i198408-198808

19901ACORD, COIL RESISTIVE

main90919-13244i198408-198808

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12554i198408-198808

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12555i198408-198808

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12556i198408-198808

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12557i198408-198808

19901FCORD, SPARK PLUG RESISTIVE, NO.5

main90919-12558i198408-198808

19901GCORD, SPARK PLUG RESISTIVE, NO.6

main90919-12559i198408-198808

19941CLAMP, RESISTIVE CORD, NO.1

main19941-43010i198408-198808

19942CLAMP, RESISTIVE CORD, NO.2

main90464-00286i198408-198808

19945PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.3

main19945-43010i198408-198808

19946CLAMP, RESISTIVE CORD, NO.3

main90464-00287×2i198408-198808

19947CLAMP, RESISTIVE CORD, NO.4

main90464-00288i198408-198808

19949CLAMP, RESISTIVE CORD, NO.5

main90464-00273i198408-198808

9165140616

main91651-40616

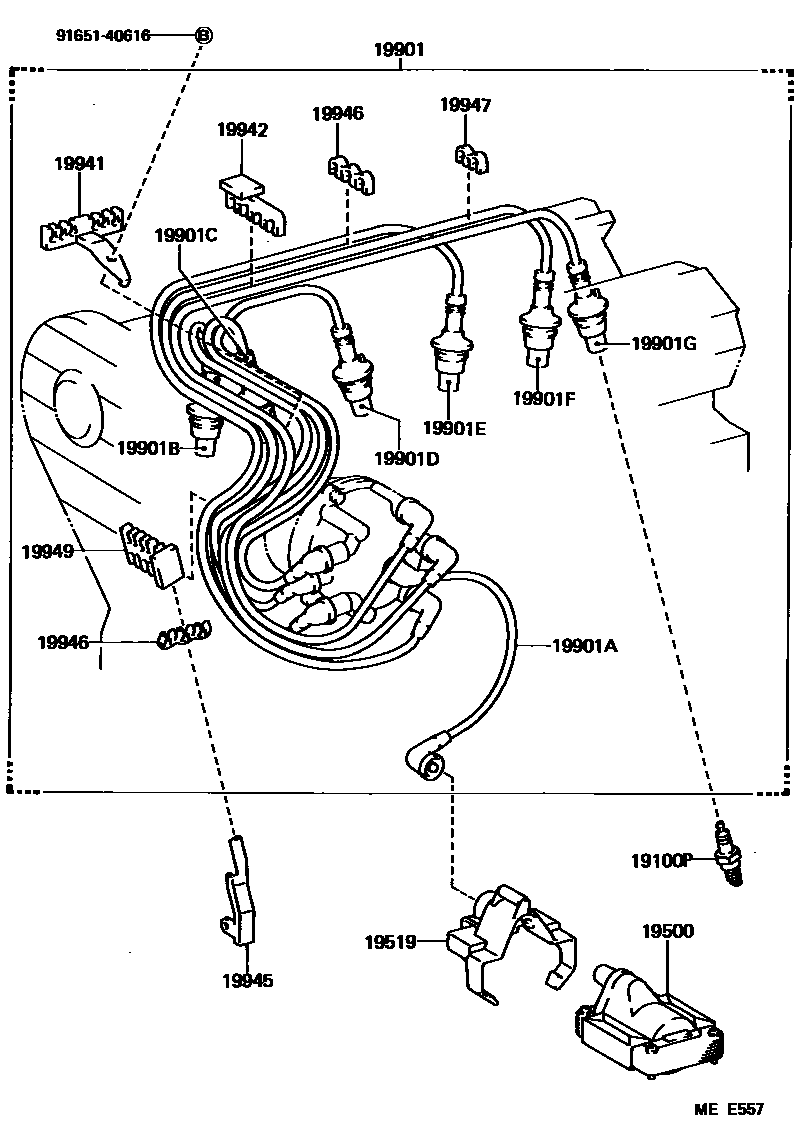

18 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota CRESSIDA

This section contains 18 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota CRESSIDA. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, COVER, IGNITION COIL, CORD SET, COIL & SPARK, W/RESISTIVE, CORD, COIL RESISTIVE.
