Toyota CRESSIDA — FUEL INJECTION SYSTEM

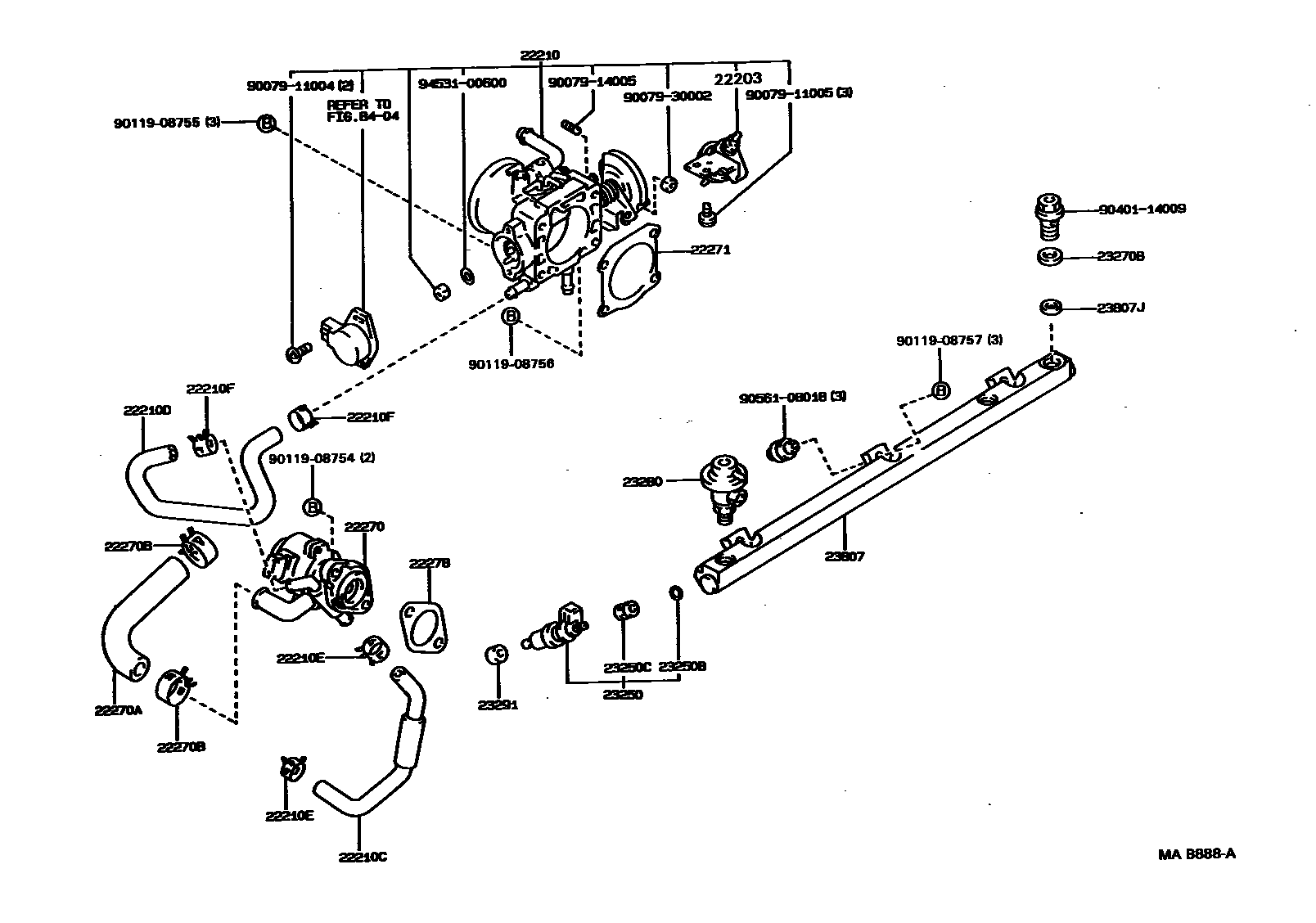

Parts diagram

22203DASH POT SUB-ASSY(FOR THROTTLE BODY)

main22202-42200i198808-199207

22210BODY ASSY, THROTTLE

main22210-42200i198808-199207

22210CHOSE, WATER BY-PASS, NO.1

main16261-42010i198808-199207

22210DHOSE, WATER BY-PASS, NO.2

main16264-42040i198808-199207

22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

main96135-41300×2i198808-199207

22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)

main96135-41300×2i198808-199207

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-42010i198808-199207

22270AHOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)

main17347-42040i198808-199207

22270BCLIP(FOR AIR HOSE)

main96134-42300×2i198808-199207

22271GASKET, THROTTLE BODY

main22271-42010i198808-198912

main22271-42040i198912-199207

22278GASKET, IDLE SPEED CONTROL VALVE

main22278-42010i198912-199207

main22278-43011i198808-198912

23250INJECTOR ASSY, FUEL

main23209-70080×6i198808-199207

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001×6i198808-199207

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005×6i198808-199207

23270BGASKET(FOR PULSATION DAMPER HOSE)

main90430-17002i198808-199007

main90430-17006i199007-199207

23280REGULATOR ASSY, FUEL PRESSURE

main23280-42030i198808-199207

23291INSULATOR, INJECTOR VIBRATION

main23291-41010×6i198808-199207

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-42020i198808-199207

23807JGASKET, PIPE FUEL DELIVARY INLET

main90430-14002i198808-199007

main90430-14007i199007-199207

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9007911004

main90079-11004

9007911005

main90079-11005

9007914005

main90079-14005

9007930002

main90079-30002

9011908754

main90119-08754

9011908755

main90119-08755

9011908756

main90119-08756

9011908757

main90119-08757

9040114009

main90401-14009

9056108018

main90561-08018

9453100600

main94531-00600

31 parts on this diagram · 3 diagrams in section

FUEL INJECTION SYSTEM for Toyota CRESSIDA

This section contains 68 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota CRESSIDA. Key components include: DASH POT SUB-ASSY(FOR THROTTLE BODY), BODY ASSY, THROTTLE, HOSE, WATER BY-PASS, NO.1, HOSE, WATER BY-PASS, NO.2, CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1).
