Toyota CRESSIDA — FRONT FENDER APRON & DASH PANEL

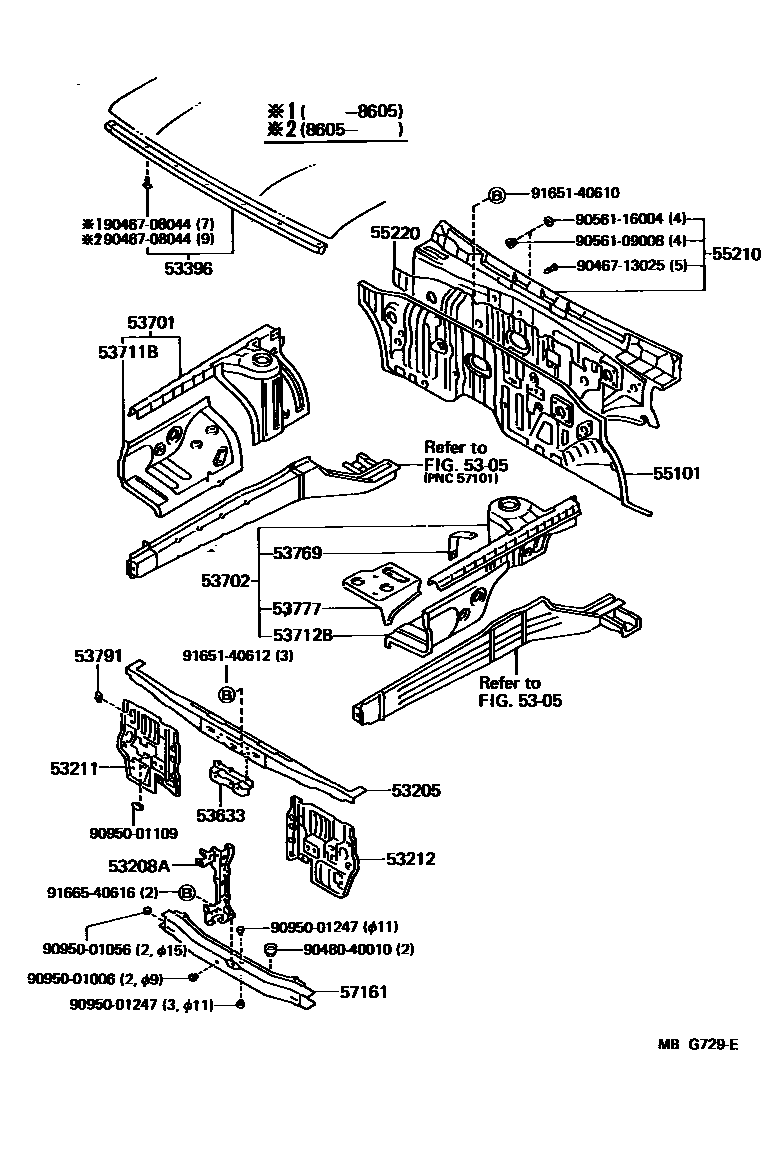

Parts diagram

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-22050i198408-198808

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-22050i198408-198608

main53208-22051i198608-198808

53211SUPPORT, RADIATOR, RH

main53211-22220i198408-198608

main53211-22230i198608-198808

53212SUPPORT, RADIATOR, LH

main53212-22150i198408-198608

main53212-22170i198608-198808

53396SEAL, RADIATOR SUPPORT TO HEADLAMP

main53396-22011i198605-198808

main53396-22030i198408-198605

53633SHIELD, HOOD LOCK CONTROL CABLE

main53633-22030i198408-198808

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-22450i198408-198808

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-22390i198408-198808

53711BAPRON, FRONT FENDER, FRONT RH

main53711-22320i198408-198808

53712BAPRON, FRONT FENDER, FRONT LH

main53712-22310i198408-198808

53769PLATE, IGNITION COIL MOUNTING, LH

main53769-22030i198801-198808

53777SUPPORT, BATTERY CARRIER, NO.2

main53777-22040i198801-198808

53791COVER, COOL AIR INTAKE HOLE

main53791-22020i198608-198808

55101PANEL SUB-ASSY, DASH

main55101-22510i198408-198608

main55101-22928i198608-198802

main55101-22929i198802-198808

55210INSULATOR ASSY, DASH PANEL

main55210-22160i198408-198608

main55210-22161i198608-198808

55220INSULATOR ASSY, DASH PANEL, NO.2

main55220-22020i198408-198808

57161CROSSMEMBER, FRONT

main57104-22120i198408-198808

9046708044

main90467-08044

9046713025

main90467-13025

9048040010

main90480-40010

9056109008

main90561-09008

9056116004

main90561-16004

9095001006

main90950-01006

9095001056

main90950-01056

9095001109

main90950-01109

9095001247

main90950-01247

9165140610

main91651-40610

9165140612

main91651-40612

9166540616

main91665-40616

30 parts on this diagram · 2 diagrams in section

FRONT FENDER APRON & DASH PANEL for Toyota CRESSIDA

This section contains 36 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota CRESSIDA. Key components include: FLOOR SIDE MEMBER, SUPPORT SUB-ASSY, RADIATOR, UPPER, SUPPORT SUB-ASSY, HOOD LOCK, SUPPORT, RADIATOR, RH, SUPPORT, RADIATOR, LH.
