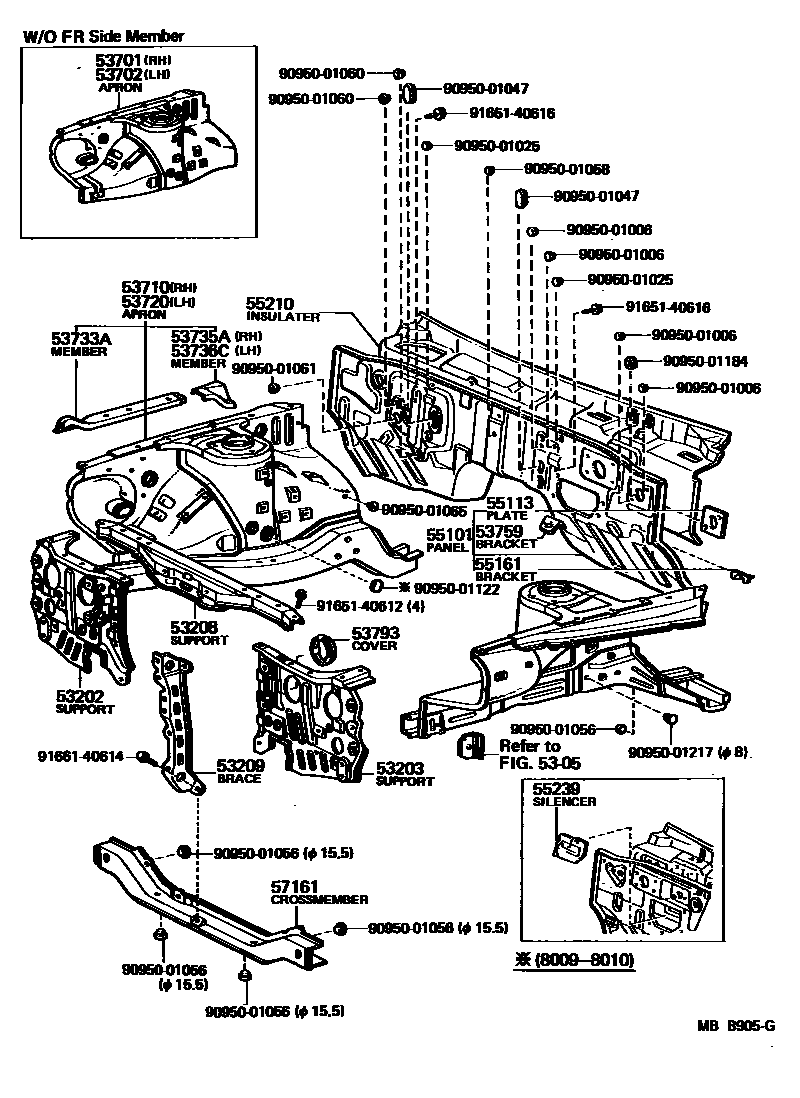

Toyota CRESSIDA — FRONT FENDER APRON & DASH PANEL
5305FLOOR SIDE MEMBER
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53208SUPPORT SUB-ASSY, RADIATOR GRILLE, CENTER
53209BRACE SUB-ASSY, HOOD LOCK
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53710APRON ASSY, W/FRONT SIDE MEMBER, RH
53720APRON ASSY, W/FRONT SIDE MEMBER, LH
53733AMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT
RH
LH
53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH
53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH
53759BRACKET, FLEXIBLE HOSE MOUNTING, NO.1
53793COVER, HEADLAMP WIRE HARNESS HOLE, NO.1
55113PLATE, CLUTCH PEDAL SUPPORT MOUNTING
55161BRACKET, HEATER MOUNTING
55210INSULATOR ASSY, DASH PANEL
55239SILENCER, STEERING COLUMN HOLE COVER
9095001006
main90950-01006
9095001025
main90950-01025
9095001047
main90950-01047
9095001056
main90950-01056
9095001058
main90950-01058
9095001060
main90950-01060
9095001061
main90950-01061
9095001065
main90950-01065
9095001122
main90950-01122
9095001184
main90950-01184
9095001217
main90950-01217
9165140612
main91651-40612
9165140616
main91651-40616
9166140614
main91661-40614
34 parts on this diagram · 1 diagram in section
FRONT FENDER APRON & DASH PANEL for Toyota CRESSIDA
This section contains 34 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota CRESSIDA. Key components include: FLOOR SIDE MEMBER, SUPPORT SUB-ASSY, RADIATOR, RH, SUPPORT SUB-ASSY, RADIATOR, LH, SUPPORT SUB-ASSY, RADIATOR GRILLE, CENTER, BRACE SUB-ASSY, HOOD LOCK.
