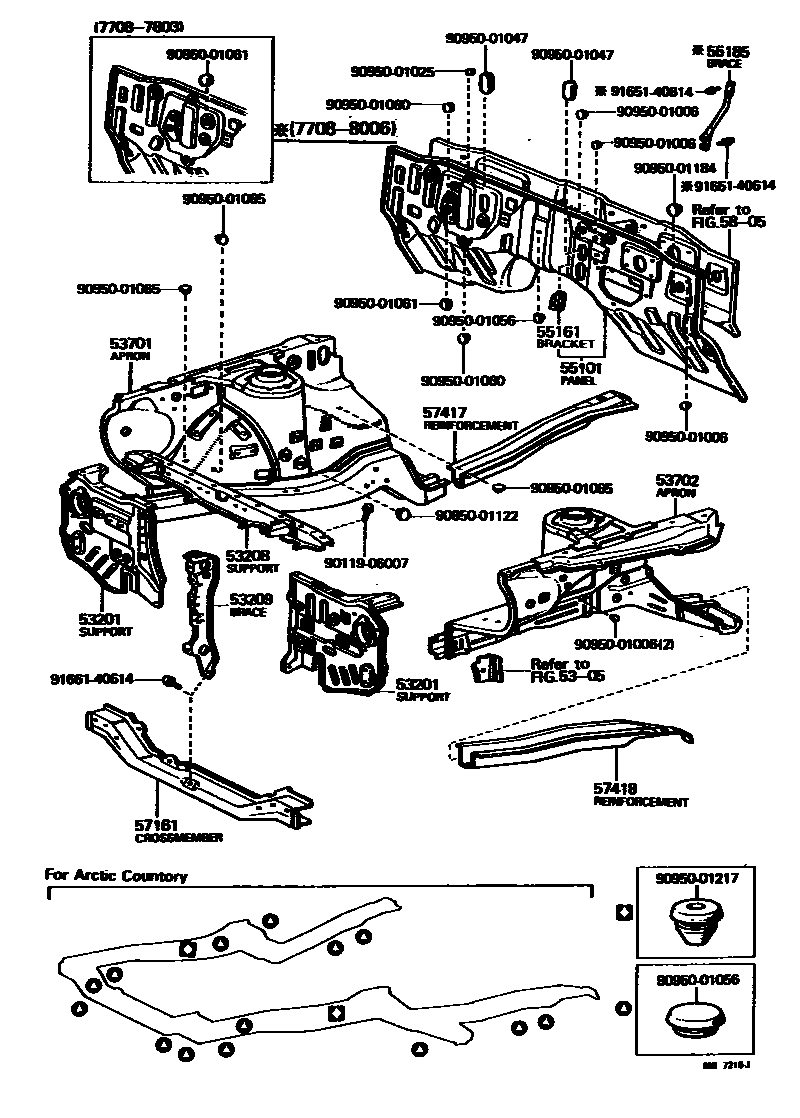

Toyota CRESSIDA — FRONT FENDER APRON & DASH PANEL
5305FLOOR SIDE MEMBER
53201SUPPORT SUB-ASSY, RADIATOR
FOR RH.
FOR RH.
FOR LH.
FOR LH.
53208SUPPORT SUB-ASSY, RADIATOR GRILLE, CENTER
53209BRACE SUB-ASSY, HOOD LOCK
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
55101PANEL SUB-ASSY, DASH
55161BRACKET, HEATER MOUNTING
55185BRACE, DASH PANEL TO COWL
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
5805DASH SILENCER BOARD & FLOOR SILENCER PAD
9011906007
main90119-06007
9095001006
main90950-01006
9095001025
main90950-01025
9095001047
main90950-01047
9095001056
main90950-01056
9095001060
main90950-01060
9095001061
main90950-01061
9095001065
main90950-01065
9095001122
main90950-01122
9095001184
main90950-01184
9095001217
main90950-01217
9165140614
main91651-40614
9166140614
main91661-40614
26 parts on this diagram · 1 diagram in section
FRONT FENDER APRON & DASH PANEL for Toyota CRESSIDA
This section contains 26 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota CRESSIDA. Key components include: FLOOR SIDE MEMBER, SUPPORT SUB-ASSY, RADIATOR, SUPPORT SUB-ASSY, RADIATOR GRILLE, CENTER, BRACE SUB-ASSY, HOOD LOCK, APRON SUB-ASSY, FRONT FENDER, RH.
