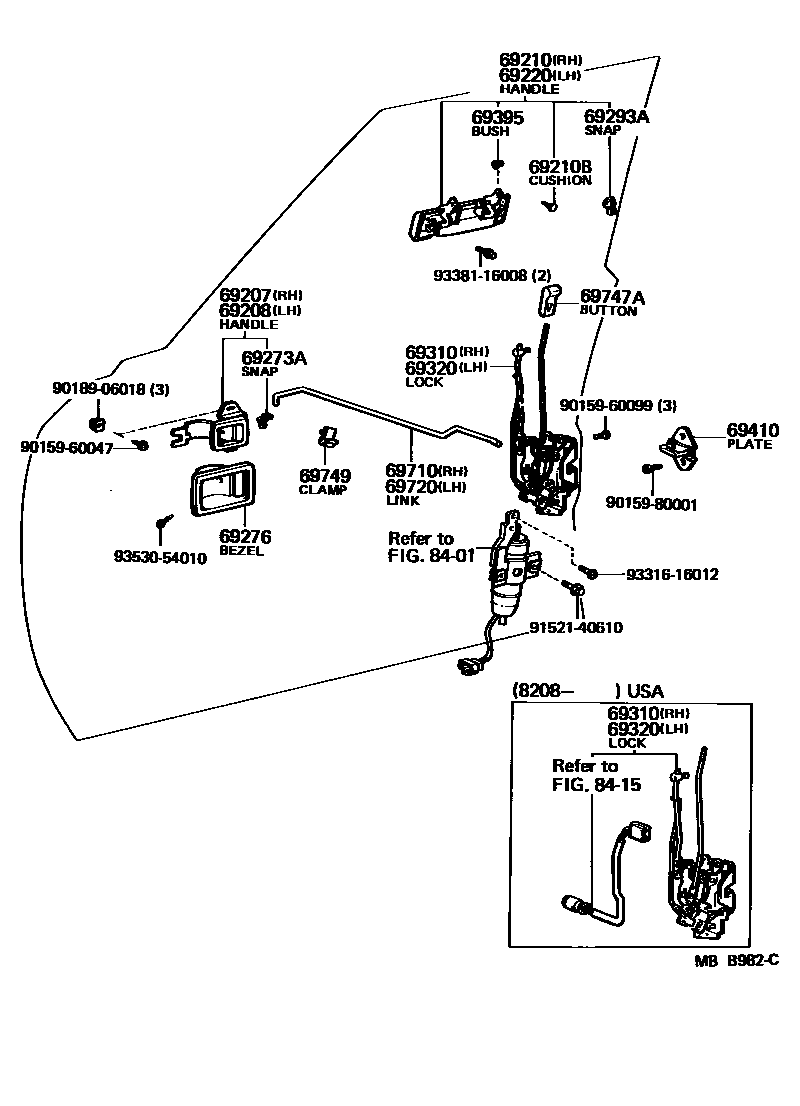

Toyota CRESSIDA — FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
RH
LH
69276BEZEL, FRONT DOOR INSIDE HANDLE
BLACK,BLACK
BLUE,BLUE
D-BROWN,BROWN
BLUE,BLUE
DEEP MAROON,RED/MAROON
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69395BUSH(FOR DOOR OUTSIDE HANDLE)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)
BLACK,BLACK
BLUE,BLUE
D-BROWN,BROWN
DEEP MAROON,RED/MAROON
BLUE,BLUE
69749CLAMP, FRONT DOOR LOCK LINK
8401SWITCH & RELAY & COMPUTER
8415PASSIVE BELT SYSTEM
9015960047
main90159-60047
9015960099
main90159-60099
9015980001
main90159-80001
9018906018
main90189-06018
9152140610
main91521-40610
9331616012
main93316-16012
9338116008
main93381-16008
9353054010
main93530-54010
26 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota CRESSIDA
This section contains 26 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota CRESSIDA. Key components include: HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, CUSHION(FOR FRONT DOOR OUTSIDE HANDLE), HANDLE ASSY, FRONT DOOR OUTSIDE, LH.
