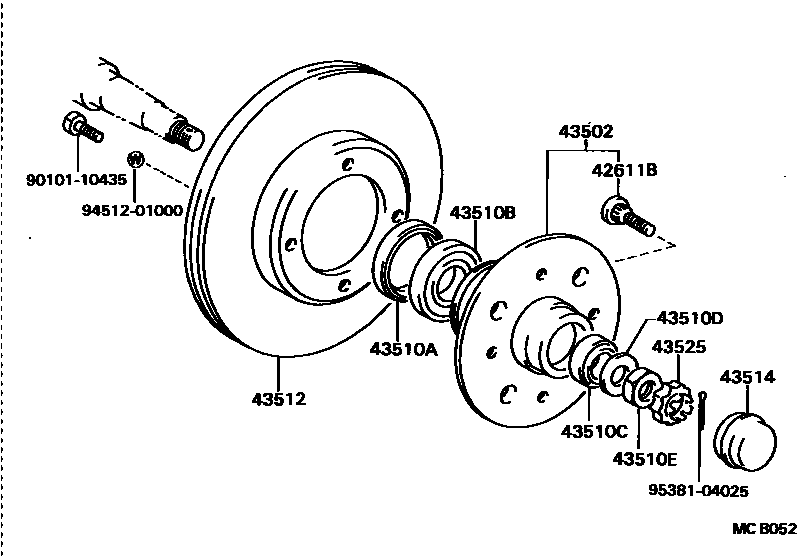

Toyota CRESSIDA — FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02047×8i198408-198808

43502HUB SUB-ASSY, FRONT AXLE

main43502-22040×2i198408-198808

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48001×2i198408-198808

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-31067×2i198408-198808

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-19037×2i198408-198808

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005×2i198408-198808

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185×2i198408-198808

43512DISC, FRONT

main43512-22080×2i198408-198508

main43512-22100×2i198508-198808

43514CAP, FRONT HUB GREASE

main43514-22020×2i198408-198808

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010×2i198408-198808

9010110435

main90101-10435

9451201000

main94512-01000

9538104025

main95381-04025

13 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota CRESSIDA

This section contains 13 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota CRESSIDA. Key components include: BOLT, HUB (FOR FRONT AXLE), HUB SUB-ASSY, FRONT AXLE, SEAL, OIL (FOR FRONT AXLE HUB), BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING), BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING).
