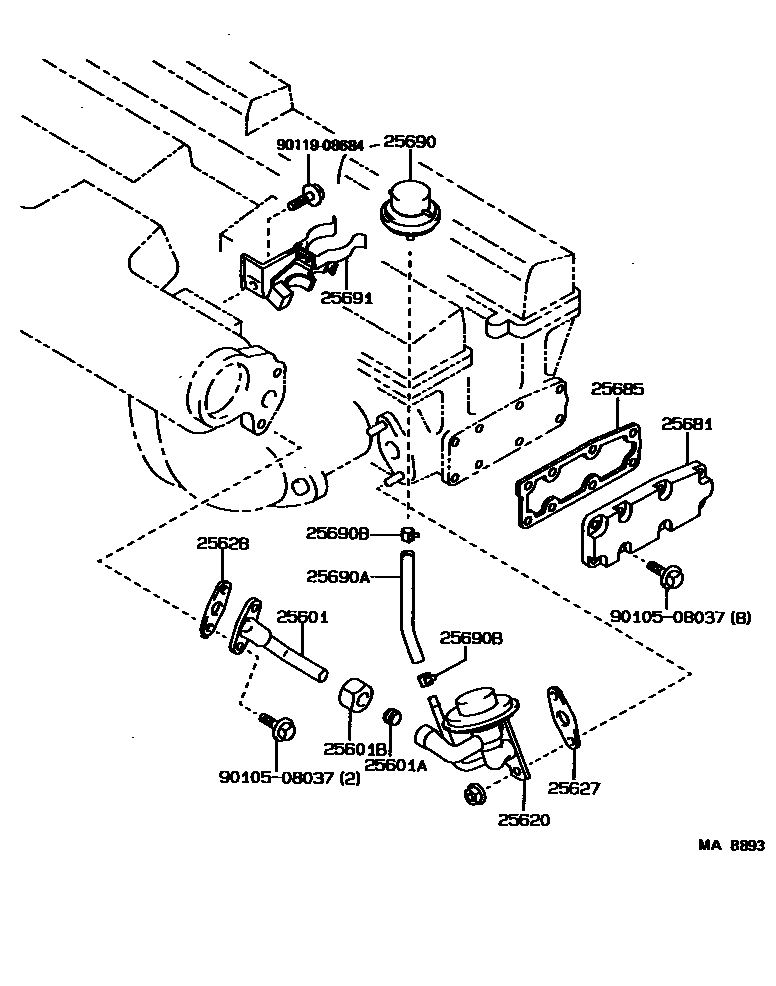

Toyota CRESSIDA — EXHAUST GAS RECIRCULATION SYSTEM

25601PIPE SUB-ASSY, EGR, NO.1

main25601-42010i198808-199207

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-14001i198808-199105

main90410-14003i199105-199207

25601BNUT, UNION, EGR PIPE, NO.1

main90402-22013i199105-199207

main90402-22076i198808-199105

25620VALVE ASSY, EGR

main25620-42020i198808-199207

main25620-42030i198808-199207

CALIFORNIA SPEC

25627GASKET, EGR VALVE

main25627-42010i198808-198908

main25627-42030i198908-199207

25628GASKET, EGR INLET

main25628-42010i198808-198908

main25628-42020i198908-199207

25681COOLER, EGR, NO.1

main25681-42010i198808-199207

25685GASKET, EGR COOLER, NO.1

main25685-42011i198808-199207

25690MODULATOR ASSY, EGR VACUUM

main25870-42020i198808-199207

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-42010i198808-199207

25690BCLIP(FOR EGR VACUUM MODULATOR)

main90467-11009×2i198901-199207

main90467-11049×2i198808-198901

25691BRACKET, EGR VACUUM MODULATOR

main25691-42030i198808-199207

9010508037

main90105-08037

9011908684

main90119-08684

14 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota CRESSIDA

This section contains 14 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota CRESSIDA. Key components include: PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, VALVE ASSY, EGR, GASKET, EGR VALVE.
