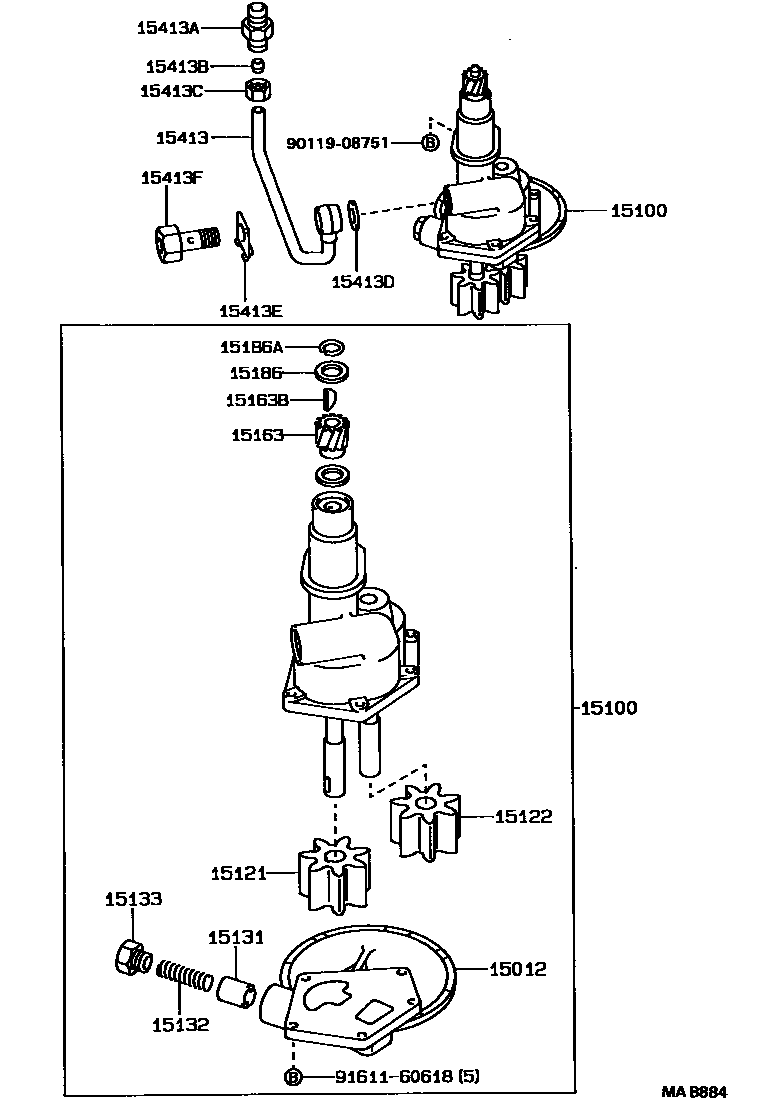

Toyota CRESSIDA — ENGINE OIL PUMP

15012COVER SUB-ASSY, OIL PUMP

main15012-43040i198808-199207

15100PUMP ASSY, OIL

main15100-42040i198808-198908

main15100-42060i198908-199207

15121GEAR, OIL PUMP DRIVE

main15102-41040i198808-199207

15122GEAR, OIL PUMP DRIVEN

main15122-41040i198808-199207

15131VALVE, OIL PUMP RELIEF

main15131-24010i198808-199207

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46010i198808-199207

15133PLUG, OIL PUMP RELIEF VALVE

main15133-24010i198808-199207

15163GEAR, OIL PUMP DRIVE SHAFT

main15128-42010i198808-199207

15163BKEY, WOODRUFF(FOR OIL PUMP DRIVE SHAFT GEAR)

main90280-03005i198808-199207

15186SPACER(FOR OIL PUMP DRIVE SHAFT GEAR)

main15186-41010i198808-199207

15186ARING, SHAFT SNAP(FOR OIL PUMP DRIVE SHAFT GEAR)

main90520-11031i198808-199207

15413PIPE, OIL PUMP OUTLET

main15403-43010i198808-199207

15413AUNION(FOR OIL PUMP OUTLET PIPE)

main90404-20013i198808-199207

15413BSLEEVE, BALL(FOR OIL PUMP OUTLET PIPE)

main90410-14004i198808-199207

15413CNUT, UNION(FOR OIL PUMP OUTLET PIPE)

main90170-20006i198808-199207

15413DGASKET(FOR OIL PUMP OUTLET PIPE)

main90430-18012i198808-199207

15413EWASHER, LOCK(FOR OIL PUMP OUTLET PIPE)

main15454-41011i198808-199207

15413FBOLT, UNION(FOR OIL PUMP OUTLET PIPE)

main90401-18014i198808-199207

9011908751

main90119-08751

9161160618

main91611-60618

20 parts on this diagram · 1 diagram in section

ENGINE OIL PUMP for Toyota CRESSIDA

This section contains 20 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota CRESSIDA. Key components include: COVER SUB-ASSY, OIL PUMP, PUMP ASSY, OIL, GEAR, OIL PUMP DRIVE, GEAR, OIL PUMP DRIVEN, VALVE, OIL PUMP RELIEF.
