Toyota CRESSIDADISTRIBUTOR

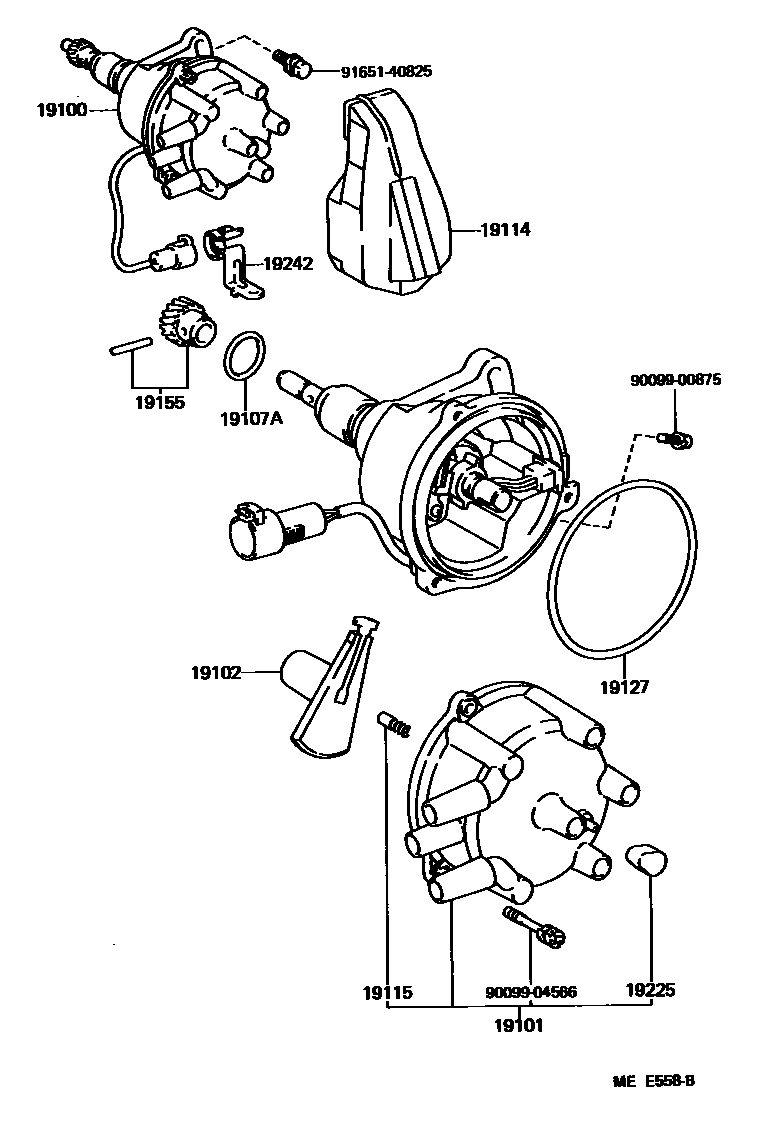

Parts diagram
19100DISTRIBUTOR ASSY
main19100-43190i198408-198808
19101CAP SUB-ASSY, DISTRIBUTOR
main19101-43190i198408-198808
19102ROTOR SUB-ASSY, DISTRIBUTOR
main19102-43110i198408-198808
19107ARING, O, DISTRIBUTOR HOUSING
main90099-14018i198408-198808
19114COVER, WATER PROOF(FOR DISTRIBUTOR)
main19114-43030i198408-198808
19115PIECE, DISTRIBUTOR CAP, CENTER
main19115-50010i198408-198808
19127PACKING, DUST PROOF
main19127-52020i198408-198808
19155GEAR, SPIRAL, DISTRIBUTOR
main19195-43060i198408-198808
19225CAP, RUBBER
main19225-41140i198408-198808
19242CLAMP, CORD
main90929-01042i198408-198808
9009900875
9009904566
9165140825

13 parts on this diagram · 1 diagram in section

DISTRIBUTOR for Toyota CRESSIDA

This section contains 13 genuine Toyota parts for the DISTRIBUTOR system of the Toyota CRESSIDA. Key components include: DISTRIBUTOR ASSY, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, RING, O, DISTRIBUTOR HOUSING, COVER, WATER PROOF(FOR DISTRIBUTOR).
