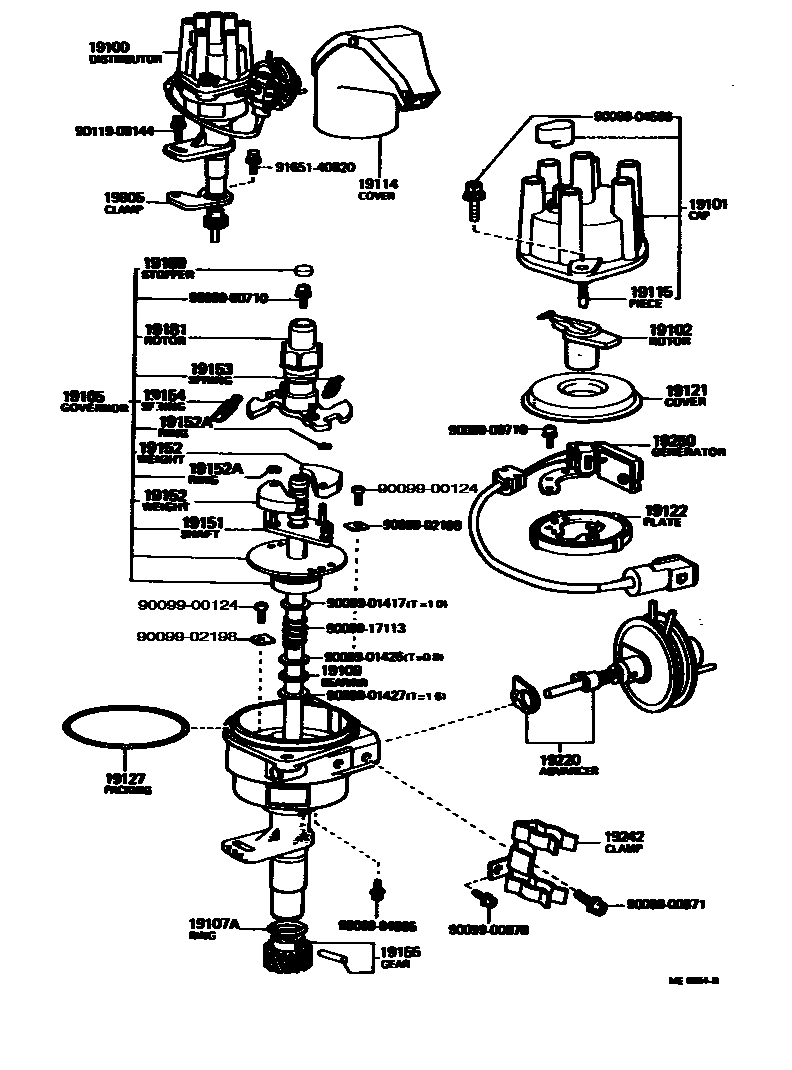

Toyota CRESSIDA — DISTRIBUTOR
19100DISTRIBUTOR ASSY
CALIFORNIA SPEC.
19101CAP SUB-ASSY, DISTRIBUTOR
19102ROTOR SUB-ASSY, DISTRIBUTOR
19105GOVERNOR SUB-ASSY
19107ARING, O, DISTRIBUTOR HOUSING
19109BEARING, THRUST
19114COVER, WATER PROOF(FOR DISTRIBUTOR)
ARCTIC
19115PIECE, DISTRIBUTOR CAP, CENTER
19121COVER, DUST PROOF
19122PLATE, STATIONARY, DISTRIBUTOR
19127PACKING, DUST PROOF
19151SHAFT, GOVERNOR
19152WEIGHT, GOVERNOR
19152ARING, SNAP(FOR GOVERNOR WEIGHT)
19153SPRING, GOVERNOR, A
19154SPRING, GOVERNOR, B
19155GEAR, SPIRAL, DISTRIBUTOR
19169STOPPER, CAM GREASE
19181ROTOR, DISTRIBUTOR, SIGNAL
19220ADVANCER ASSY, VACUUM, DISTRIBUTOR
CALIFORNIA SPEC.
19242CLAMP, CORD
19250GENERATOR ASSY, SIGNAL
19905CLAMP SUB-ASSY, DISTRIBUTOR
9009900124
main90099-00124
9009900710
main90099-00710
9009900871
main90099-00871
9009900878
main90099-00878
9009901417
main90099-01417
9009901426
main90099-01426
9009901427
main90099-01427
9009902198
main90099-02198
9009904566
main90099-04566
9009904865
main90099-04865
9009917113
main90099-17113
9011908144
main90119-08144
9165140820
main91651-40820
36 parts on this diagram · 2 diagrams in section
DISTRIBUTOR for Toyota CRESSIDA
This section contains 36 genuine Toyota parts for the DISTRIBUTOR system of the Toyota CRESSIDA. Key components include: DISTRIBUTOR ASSY, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, GOVERNOR SUB-ASSY, RING, O, DISTRIBUTOR HOUSING.
