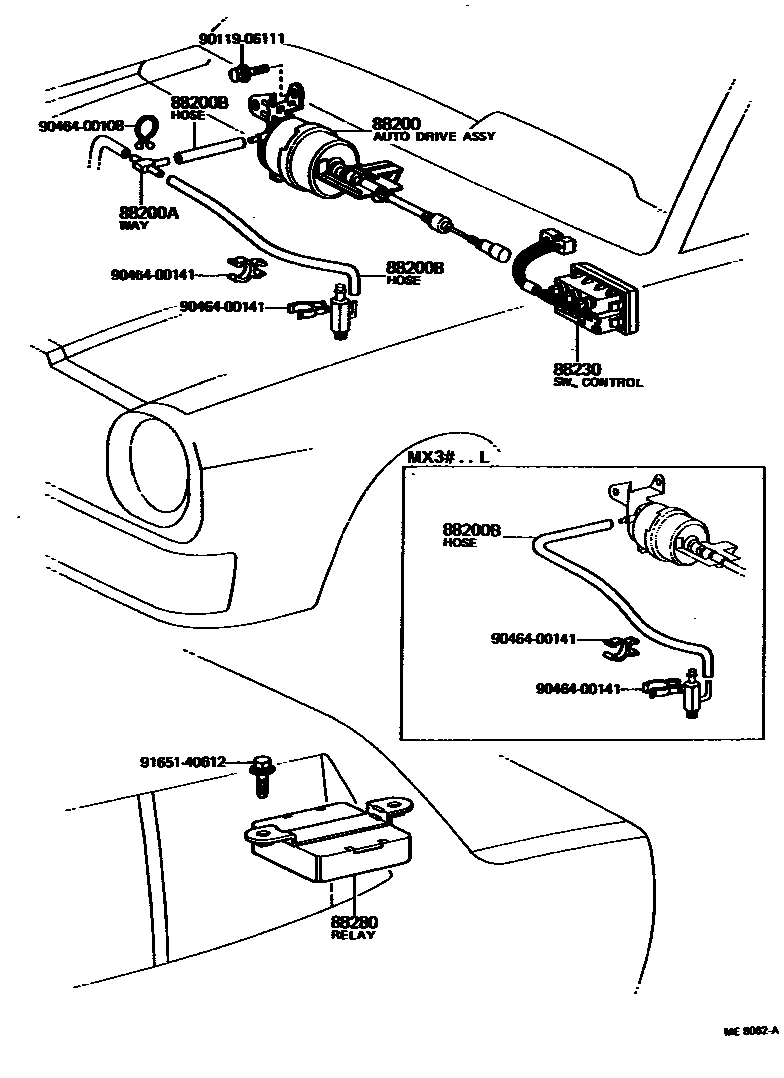

Toyota CRESSIDA — CRUISE CONTROL (AUTO DRIVE)
88200CRUISE CONTROL ASSY
88200AUNION OR WAY, CRUISE CONTROL VACUUM
88200BHOSE, CRUISE CONTROL VACUUM
*H,L=60,MARK=#*
*H,L=650,MARK=#*; *H,L=700,MARK=#*
88230SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL
88280RELAY ASSY, CRUISE CONTROL(AUTO DRIVE), B
9011906111
main90119-06111
9046400108
main90464-00108
9046400141
main90464-00141
9165140612
main91651-40612
9 parts on this diagram · 1 diagram in section
CRUISE CONTROL (AUTO DRIVE) for Toyota CRESSIDA
This section contains 9 genuine Toyota parts for the CRUISE CONTROL (AUTO DRIVE) system of the Toyota CRESSIDA. Key components include: CRUISE CONTROL ASSY, UNION OR WAY, CRUISE CONTROL VACUUM, HOSE, CRUISE CONTROL VACUUM, SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL, RELAY ASSY, CRUISE CONTROL(AUTO DRIVE), B.
