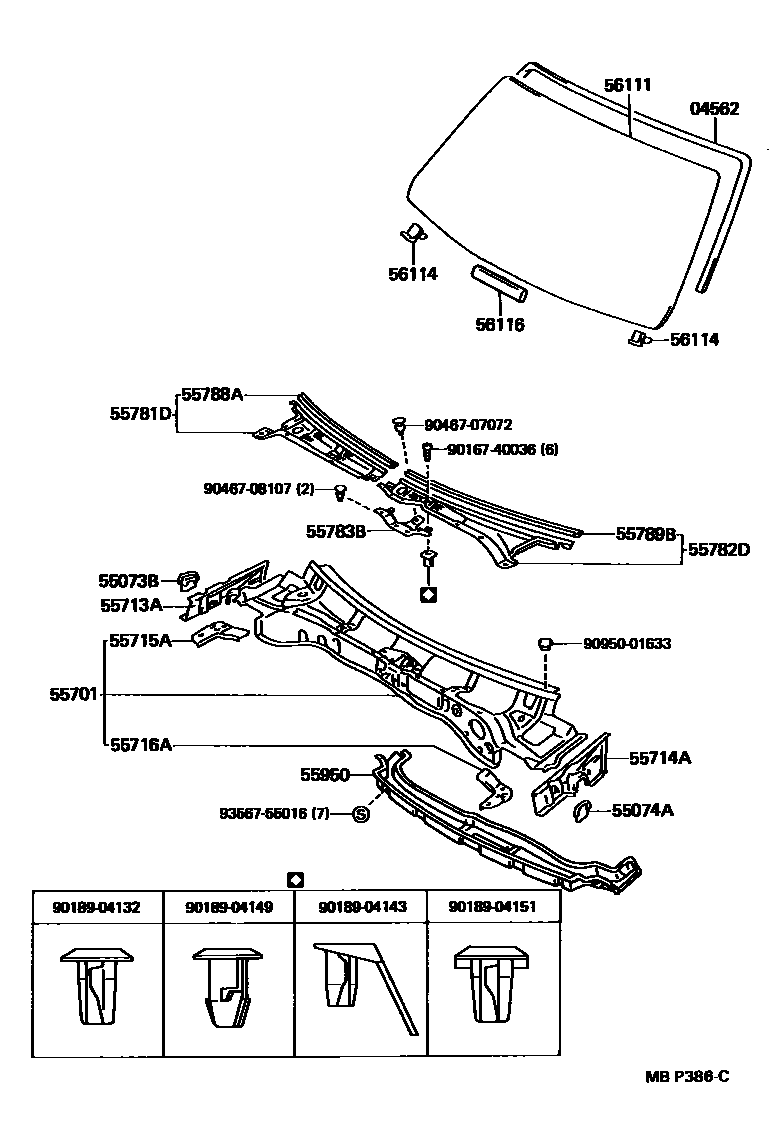

Toyota CRESSIDA — COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010i198808-199207

55073BSEAL SUB-ASSY, COWL WATER EXTRACT, NO.1

main55073-22030i198808

55074ASEAL SUB-ASSY, COWL WATER EXTRACT, NO.2

main55074-22040i198808

55701PANEL SUB-ASSY, COWL

main55700-22890i198808-199207

55713APANEL, COWL TOP SIDE, RH

main55713-22060i198808-199207

55714APANEL, COWL TOP SIDE, LH

main55714-22060i198808-199207

55715ABRACE, COWL TOP TO APRON, RH

main55715-22080i198808-199207

55716ABRACE, COWL TOP TO APRON, LH

main55716-22070i198808-199207

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-22190i198808-199207

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-22090i198808-199207

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-22090i198808-199207

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-22070i198808-199207

55789BPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2

main55789-22040i198808-199207

55950NOZZLE ASSY, DEFROSTER

main55951-22120i198808-199207

56111GLASS, WINDSHIELD

main56111-22590i198808-199207

*TL,T=4.7,BLUE

main56111-22600i198808-199207

*TL,T=4.7,BRONZE

56114RETAINER, WINDSHIELD GLASS

main56114-22010×2i198808-199207

YELLOW

main56114-22020×2i198808-199207

WHITE

main56114-22030×2i198808-199207

GREEN

56116SPACER, WINDSHIELD GLASS

main56116-22040i198808-199201

main56116-22041i199201-199207

9016740036

main90167-40036

9018904132

main90189-04132

9018904143

main90189-04143

9018904149

main90189-04149

9018904151

main90189-04151

9046707072

main90467-07072

9046708107

main90467-08107

9095001633

main90950-01633

9356755016

main93567-55016

26 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota CRESSIDA

This section contains 26 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CRESSIDA. Key components include: DAM KIT, WINDSHIELD GLASS, SEAL SUB-ASSY, COWL WATER EXTRACT, NO.1, SEAL SUB-ASSY, COWL WATER EXTRACT, NO.2, PANEL SUB-ASSY, COWL, PANEL, COWL TOP SIDE, RH.
