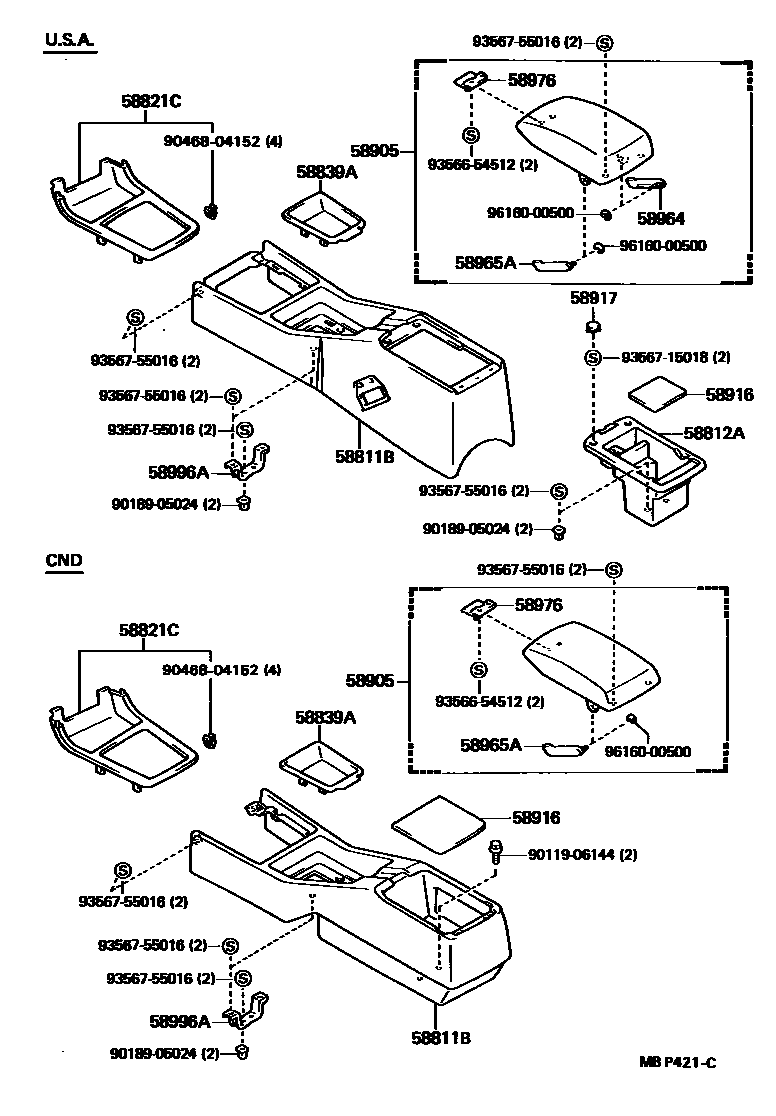

Toyota CRESSIDA — CONSOLE BOX & BRACKET
58811BBOX, CONSOLE
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
58812ABOX, CONSOLE, LOWER
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
58821CPANEL, CONSOLE, UPPER
58839ACOVER, CONSOLE BOX HOLE
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
58916MAT, BOX BOTTOM
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
58917MAT, BOX BOTTOM, NO.2
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
9011906144
main90119-06144
9018905024
main90189-05024
9046804152
main90468-04152
9356654512
main93566-54512
9356715018
main93567-15018
9356755016
main93567-55016
9616000500
main96160-00500
18 parts on this diagram · 1 diagram in section
