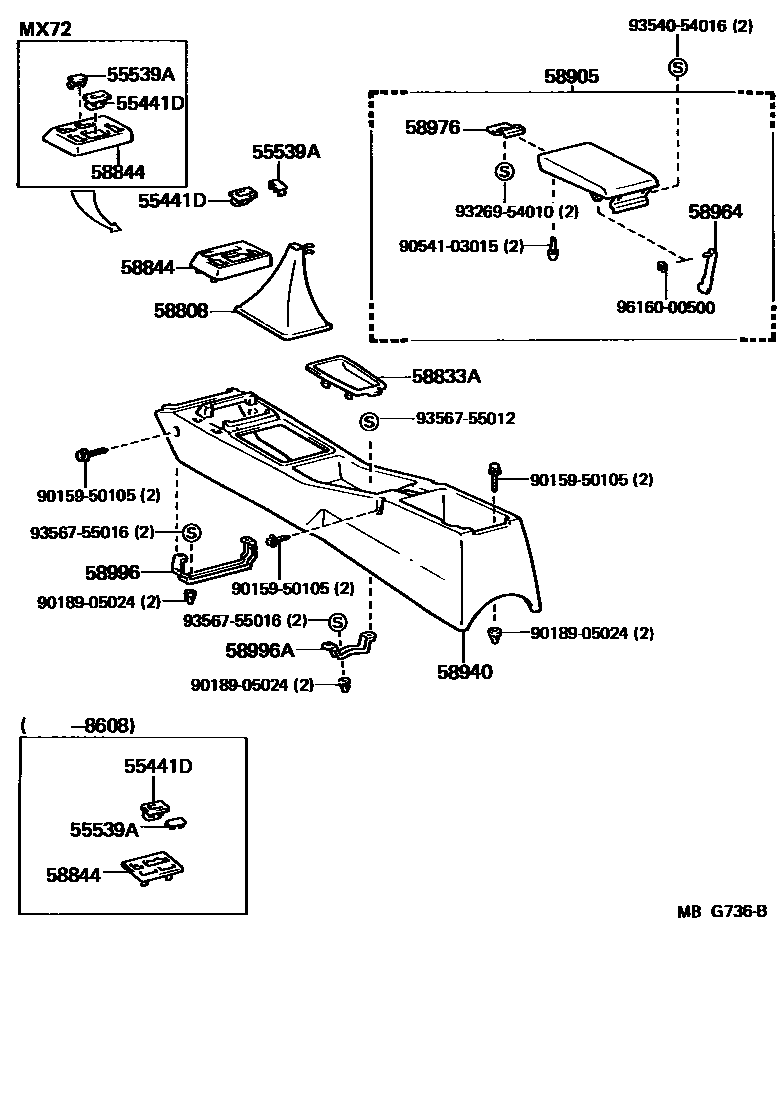

Toyota CRESSIDA — CONSOLE BOX & BRACKET
55441DBOX, INSTRUMENT PANEL COIN
55539ACOVER, SPARE SWITCH HOLE
W/O *PSE
58808COVER SUB-ASSY, SHIFTING HOLE
MAROON,MAROON
GRAY,COOL GRAY
BLUE,DARK BLUE
BEIGE,BEIGE
GREEN,GREEN
GRAY,MEDIUM GRAY
BEIGE,DARK BEIGE
58833ACOVER, CONSOLE, UPPER
MAROON,RED
GRAY,COOL GRAY
BLUE,DARK BLUE
BEIGE,BEIGE
GREEN,GREEN
GRAY,MEDIUM GRAY
BEIGE,DARK BEIGE
58844BEZEL, CONSOLE BOX
MAROON,MAROON
GRAY,MEDIUM GRAY
BLUE,DARK BLUE
BEIGE,DARK BEIGE
MAROON,MAROON
BLUE,DARK BLUE
BEIGE,DARK BEIGE
MAROON,MAROON
BLUE,DARK BLUE
BEIGE,DARK BEIGE
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
GRAY,COOL GRAY
GREEN,GREEN
MAROON,MAROON
BEIGE,BEIGE
MAROON,MAROON
GRAY,MEDIUM GRAY
BLUE,DARK BLUE
BEIGE,DARK BEIGE
58940CONSOLE ASSY, REAR
MAROON,RED
GRAY,COOL GRAY
BEIGE,BEIGE
GREEN,GREEN
MAROON,RED
GRAY,COOL GRAY
BEIGE,BEIGE
GREEN,GREEN
MAROON,RED
GRAY,COOL GRAY
BLUE,DARK BLUE
BEIGE,BEIGE
BEIGE,DARK BEIGE
MAROON,MAROON
GRAY,MEDIUM GRAY
BLUE,DARK BLUE
BEIGE,DARK BEIGE
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58996BRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
9015950105
main90159-50105
9018905024
main90189-05024
9054103015
main90541-03015
9326954010
main93269-54010
9354054016
main93540-54016
9356755012
main93567-55012
9356755016
main93567-55016
9616000500
main96160-00500
19 parts on this diagram · 2 diagrams in section
