Toyota CRESSIDA — CONSOLE BOX & BRACKET

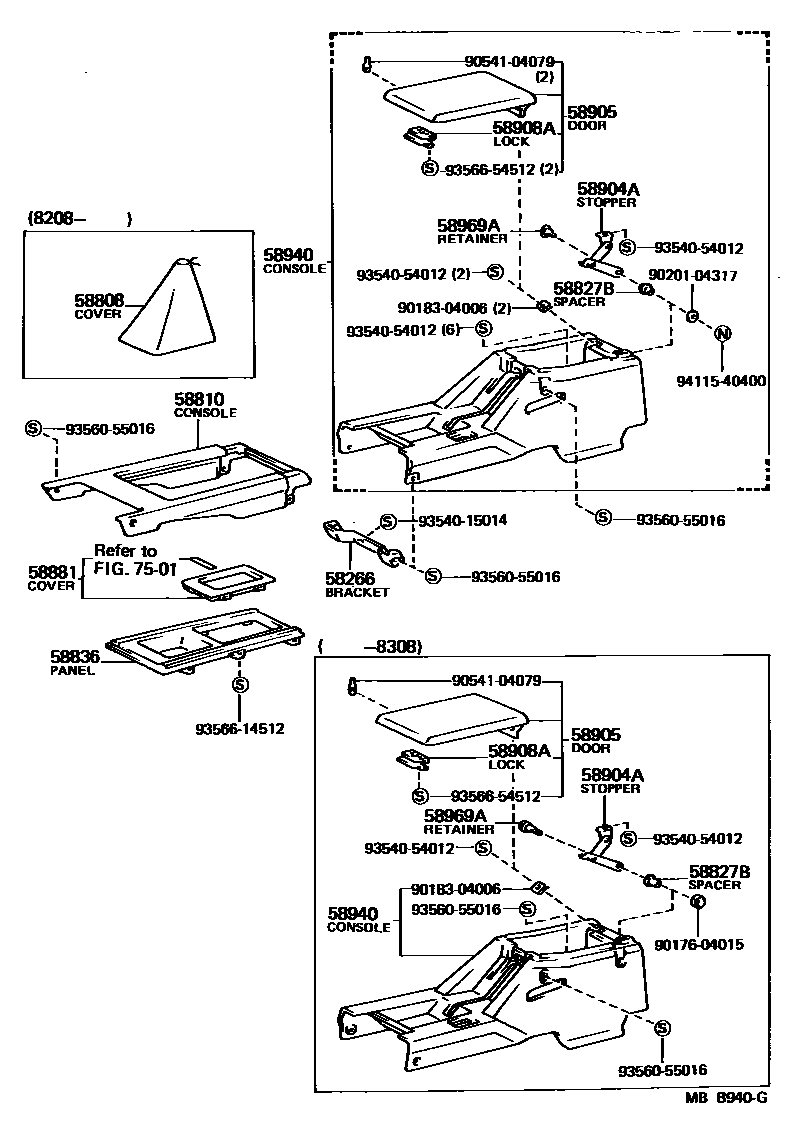

Parts diagram
58266BRACKET, CONSOLE BOX SUPPORT, FRONT
main58996-22010i198009-198208
main58996-22020i198208-198407
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-22060-02i198208-198407
DEEP MAROON,RED/MAROON
main58808-22060-06i198208-198407
DARK BROWN,BROWN
main58808-22060-14i198208-198407
BLUE,BLUE
58810CONSOLE ASSY
main58802-22110-02i198308-198407
DEEP MAROON,RED/MAROON
main58802-22110-06i198308-198407
D-BROWN,BROWN
main58802-22110-14i198308-198407
BLUE,BLUE
main58811-22120-01i198009-198208
BLACK,BLACK
main58811-22120-02i198208-198308
DEEP MAROON,RED/MAROON
main58811-22120-04i198009-198208
BLUE,BLUE
main58811-22120-06i198009-198308
D-BROWN,BROWN
main58811-22120-14i198208-198308
BLUE,BLUE
58827BSPACER, CONSOLE COMPARTMENT DOOR STOPPER
main58827-20021i198009-198208
main58967-22010i198208-198407
58836PANEL, CONSOLE, UPPER FRONT
main58821-22010i198009-198208
main58821-22030i198108-198208
W/CRUISE COMPUTER
main58821-22050i198208-198407
main58821-22070i198208-198407
W/CRUISE COMPUTER
58881COVER, SHIFTING HOLE
main58841-22050i198009-198208
sub58841-22040
main58841-22080i198208-198407
58904ASTOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58904-22020i198009-198407
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-22020-01i198009-198208
BLACK,BLACK
main58905-22020-02i198208-198407
DEEP MAROON,RED/MAROON
main58905-22020-04i198009-198208
BLUE,BLUE
main58905-22020-06i198009-198407
D-BROWN,BROWN
main58905-22020-14i198208-198407
BLUE,BLUE
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-22010i198009-198407
58940CONSOLE ASSY, REAR
main58901-22020-01i198009-198208
BLACK,BLACK
main58901-22020-04i198009-198208
BLUE,BLUE
main58901-22020-06i198009-198208
D-BROWN,BROWN
main58901-22030-01i198009-198205
BLACK,BLACK
main58901-22030-04i198009-198205
BLUE,BLUE
main58901-22030-06i198009-198205
D-BROWN,BROWN
main58901-22031-01i198205-198208
BLACK,BLACK
main58901-22031-04i198205-198208
BLUE,BLUE
main58901-22031-06i198205-198208
D-BROWN,BROWN
main58901-22070-02i198208-198407
DEEP MAROON,RED/MAROON
main58901-22070-06i198208-198407
D-BROWN,BROWN
main58901-22070-14i198208-198407
BLUE,BLUE
main58901-22080-02i198208-198308
DEEP MAROON,RED/MAROON
main58901-22080-06i198208-198308
D-BROWN,BROWN
main58901-22080-14i198208-198308
BLUE,BLUE
main58901-22090-02i198308-198407
DEEP MAROON,RED/MAROON
main58901-22090-06i198308-198407
D-BROWN,BROWN
main58901-22090-14i198308-198407
BLUE,BLUE
58969ARETAINER, CONSOLE COMPARTMENT DOOR STOPPER
main58969-20010i198009-198407
7501
9017604015
main90176-04015
9018304006
main90183-04006
9020104317
main90201-04317
9054104079
main90541-04079
9354015014
main93540-15014
9354054012
main93540-54012
9356055016
main93560-55016
9356614512
main93566-14512
9356654512
main93566-54512
9411540400
main94115-40400

22 parts on this diagram · 2 diagrams in section
