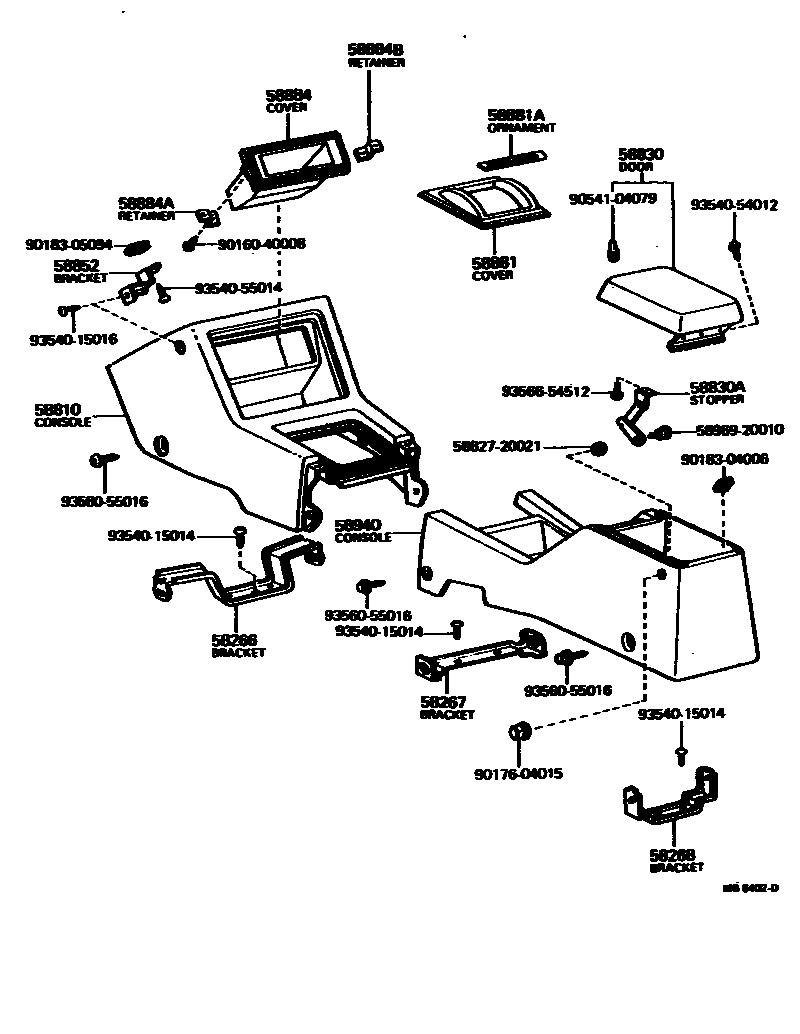

Toyota CRESSIDA — CONSOLE BOX & BRACKET
58266BRACKET, CONSOLE BOX SUPPORT, FRONT
58267BRACKET, CONSOLE BOX SUPPORT, CENTER
58268BRACKET, CONSOLE BOX SUPPORT, REAR
58810CONSOLE ASSY
BLACK,BLACK
DARK WINE,RED/MAROON
GRAY,GRAY
BEIGE,BEIGE
BLACK,BLACK
BEIGE,BEIGE
58830DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK,BLACK
DARK WINE,RED/MAROON
GRAY,GRAY
BEIGE,BEIGE
58830ASTOPPER,CONSOLE COMPARTMENT DOOR
58852BRACKET, CONSOLE SUPPORT, UPPER LH
58881COVER, SHIFTING HOLE
GRAY M.,GRAY
SILVER M.,GRAY
SILVER,GRAY
58881AORNAMENT, CONSOLE BOX
58884COVER, STEREO OPENING
sub55462-20071
58884ARETAINER, STEREO OPENING, NO.1
58884BRETAINER, STEREO OPENING, NO.2
58940CONSOLE ASSY, REAR
BLACK,BLACK
DARK WINE,RED/MAROON
GRAY,GRAY
BEIGE,BEIGE
BLACK,BLACK
BEIGE,BEIGE
5882720021STOPPER, FUEL INLET COVER, LOWER
main58827-20021
5896920010PROTECTOR, SAFETY LATCH HAND
main58969-20010
9016040008
main90160-40008
9017604015
main90176-04015
9018304006
main90183-04006
9018305094
main90183-05094
9054104079
main90541-04079
9354015014
main93540-15014
9354015016
main93540-15016
9354054012
main93540-54012
9354055014
main93540-55014
9356055016
main93560-55016
9356654512
main93566-54512
26 parts on this diagram · 1 diagram in section
