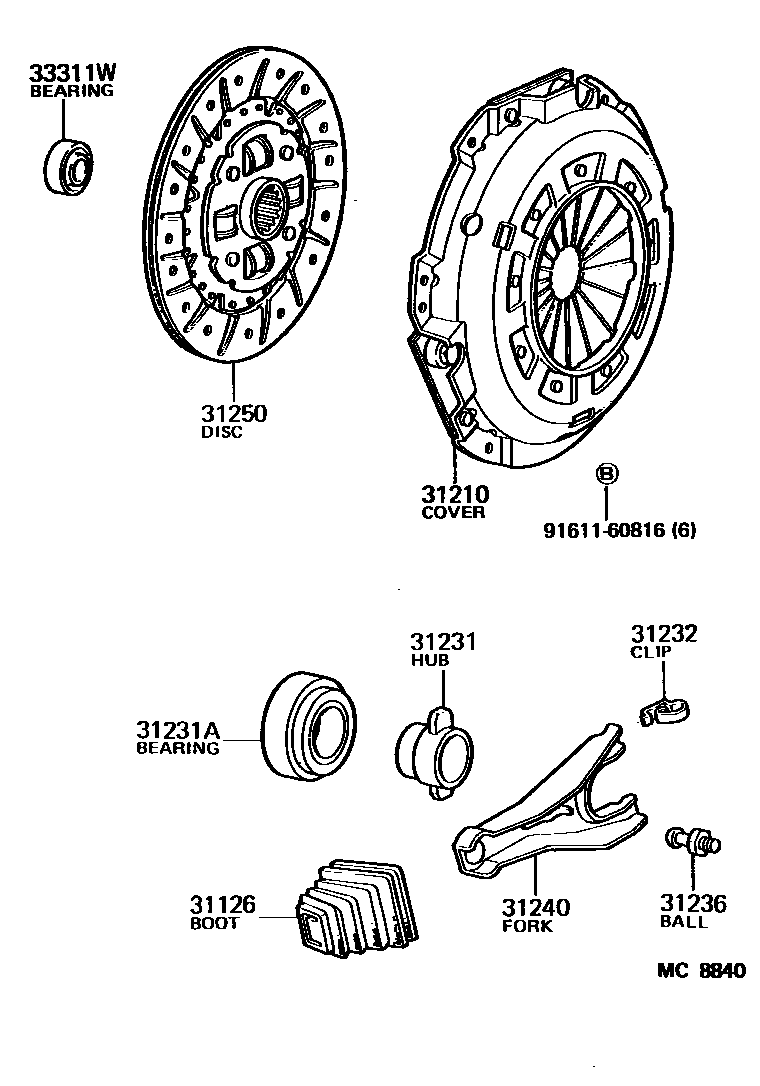

Toyota CRESSIDA — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20070i198208-198407

31210COVER ASSY, CLUTCH

main31210-14121i198208-198407

31231HUB, CLUTCH RELEASE BEARING

main31231-36070i198208-198407

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022i198208-198407

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010×2i198208-198407

31236BALL, RELEASE FORK

main31236-30060i198208-198407

31240FORK ASSY, CLUTCH RELEASE

main31204-20080i198208-198407

31250DISC ASSY, CLUTCH

main31250-14130i198208-198407

33311WBEARING (FOR INPUT SHAFT)

main90363-12002i198208-198407

9161160816

main91611-60816

10 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota CRESSIDA

This section contains 10 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota CRESSIDA. Key components include: BOOT, CLUTCH RELEASE FORK, COVER ASSY, CLUTCH, HUB, CLUTCH RELEASE BEARING, BEARING, BALL(FOR CLUTCH RELEASE HUB), CLIP OR SPRING, RELEASE BEARING HUB.
