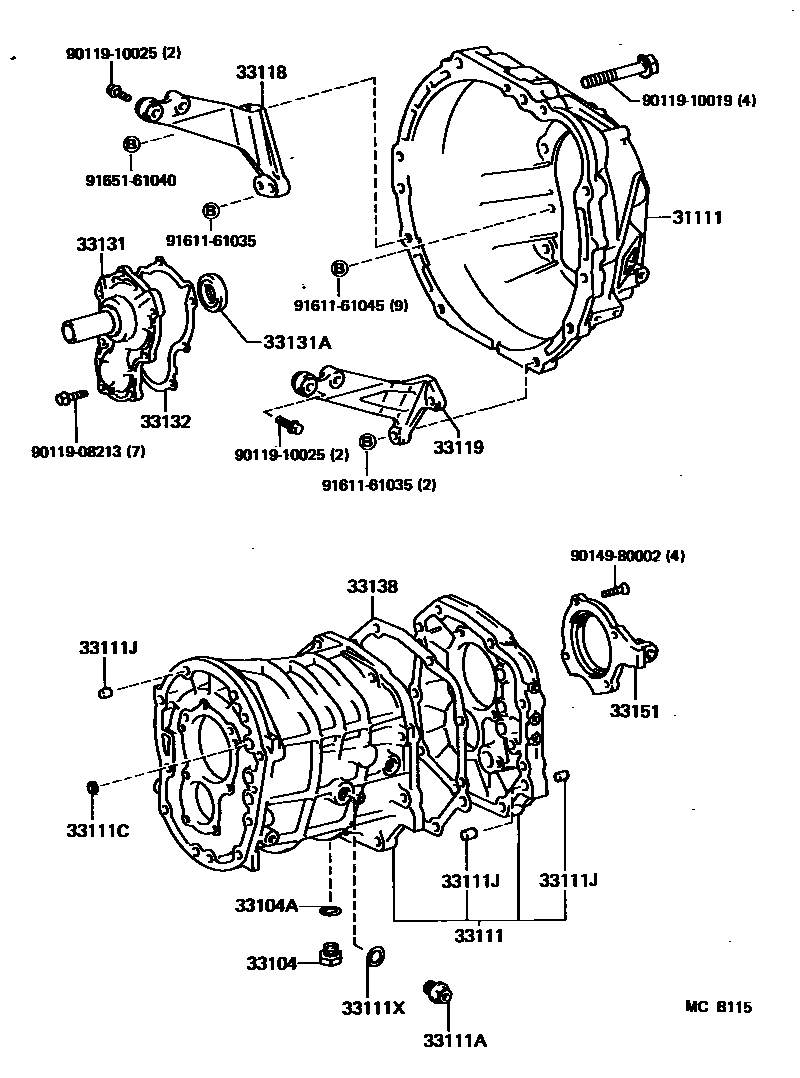

Toyota CRESSIDA — CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31111HOUSING, CLUTCH
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111CASE, MANUAL TRANSMISSION
33111APLUG, MANUAL TRANSMISSION CASE
33111CPLUG(FOR TRANSMISSION CASE)
OD=14
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=16,OD=12
33111XGASKET, TRANSMISSION CASE PLUG
33118PLATE, STIFFENER, RH(MTM)
33119PLATE, STIFFENER, LH(MTM)
33131RETAINER, BEARING, FRONT(MTM)
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
33132GASKET, FRONT BEARING RETAINER(MTM)
33138GASKET, INTERMEDIATE PLATE
33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
9011908213
main90119-08213
9011910019
main90119-10019
9011910025
main90119-10025
9014980002
main90149-80002
9161161035
main91611-61035
9161161045
main91611-61045
9165161040
main91651-61040
22 parts on this diagram · 1 diagram in section
CLUTCH HOUSING & TRANSMISSION CASE (MTM) for Toyota CRESSIDA
This section contains 22 genuine Toyota parts for the CLUTCH HOUSING & TRANSMISSION CASE (MTM) system of the Toyota CRESSIDA. Key components include: HOUSING, CLUTCH, PLUG SUB-ASSY, DRAIN(MTM), GASKET, DRAIN PLUG(MTM), CASE, MANUAL TRANSMISSION, PLUG, MANUAL TRANSMISSION CASE.
