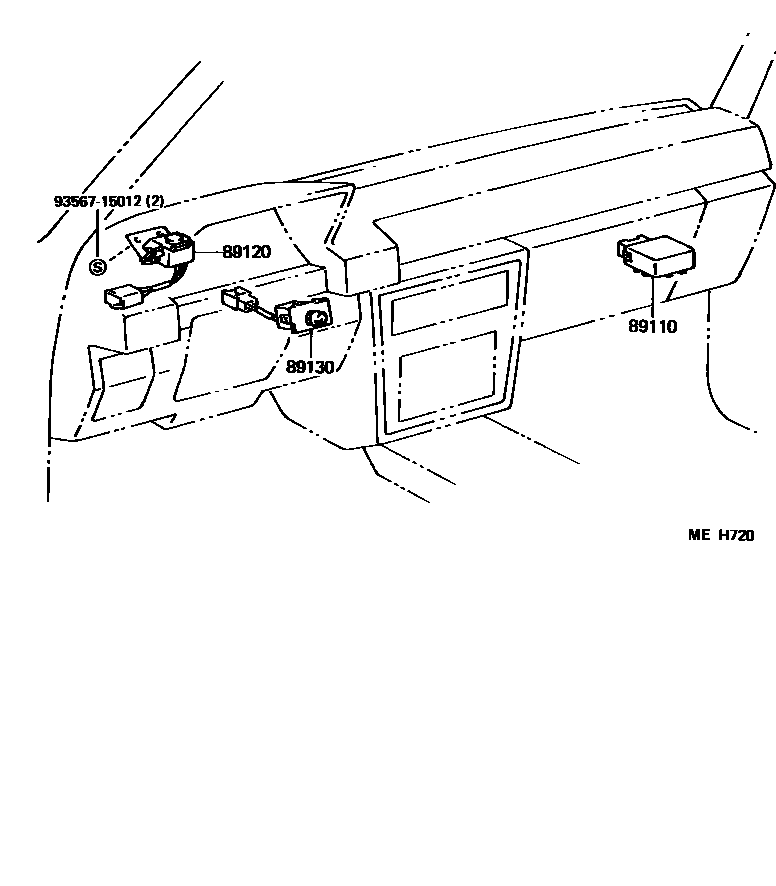

Toyota CRESSIDA — AUTOMATIC LIGHT CONTROL SYSTEM (CONLIGHT)

89110RELAY ASSY, CONLIGHT, A

main89110-22010iMX7#..ATM198608-198808

main89110-22020iMX73..MTM198608-198708

89120SENSOR, AUTOMATIC LIGHT CONTROL

main89120-22040iMX7#198608-198808

89130SWITCH ASSY, CONLIGHT

main89130-22010iMX7#..USA198608-198808

main89130-22020iMX73..CND198608-198808

9356715012

main93567-15012

4 parts on this diagram · 1 diagram in section
