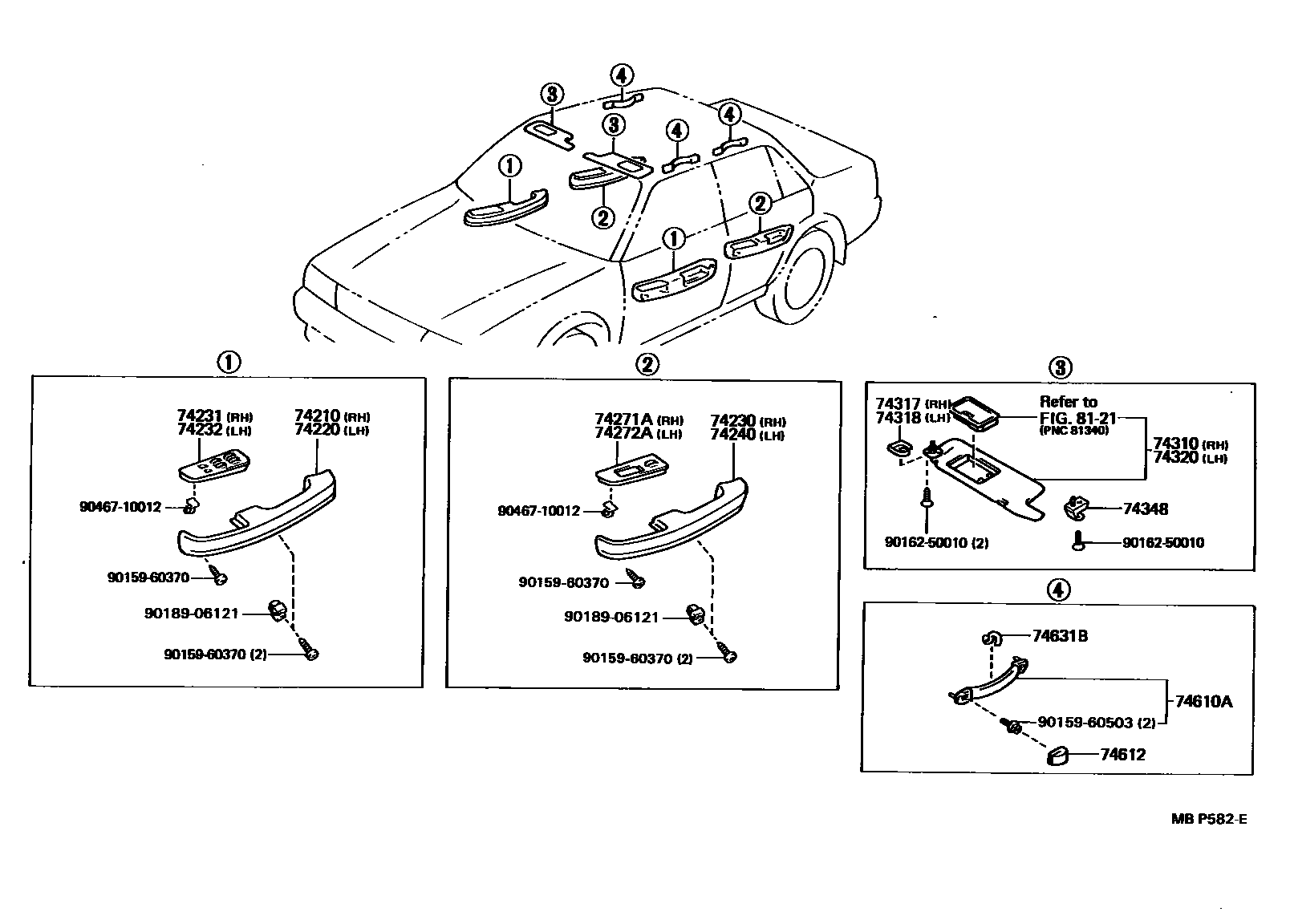

Toyota CRESSIDA — ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-22130-02i198808-199207

NEW MAROON,TRIM3#

main74210-22130-03i199008-199207

MEDIUM GRAY,TRIM1#

main74210-22130-04i199008-199207

DARK BLUE,TRIM8#

main74210-22130-06i199008-199207

SABLE,TRIM4#

74220ARMREST ASSY, FRONT, LH

main74220-22120-02i198808-199207

NEW MAROON,TRIM3#

main74220-22120-03i198808-199008

MEDIUM GRAY,TRIM1#

main74220-22120-04i198808-199008

DARK BLUE,TRIM8#

main74220-22120-06i198808-198908

SABLE,TRIM4#

74230ARMREST ASSY, REAR, RH

main74250-22060-02i198808-199207

NEW MAROON,TRIM3#

main74250-22060-03i198808-199008

MEDIUM GRAY,TRIM1#

main74250-22060-04i199008-199207

DARK BLUE,TRIM8#

main74250-22060-06i199008-199207

SABLE,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-22240i198808-199207

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-22180i198808-199207

74240ARMREST ASSY, REAR, LH

main74260-22050-02i198808-199207

NEW MAROON,TRIM3#

main74260-22050-03i198808-199008

MEDIUM GRAY,TRIM1#

main74260-22050-04i198808-199008

DARK BLUE,TRIM8#

main74260-22050-06i198908-199008

SABLE,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-22070i198808-199207

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-22070i198808-199207

74310VISOR ASSY, RH

main74310-22600-02i198808-199008

NEW MAROON,TRIM3#

main74310-22600-03i198808-199008

MEDIUM GRAY,TRIM1#

main74310-22600-04i198808-199008

DARK BLUE,TRIM8#

main74310-22600-06i198808-199008

SABLE,TRIM4#

main74310-22600-12i199008-199207

NEW MAROON,TRIM3#

main74310-22600-13i199008-199207

MEDIUM GRAY,TRIM1#

main74310-22600-14i199008-199207

DARK BLUE,TRIM8#

main74310-22600-16i199008-199207

SABLE,TRIM4#

main74310-22610-02i199008-199207

NEW MAROON,TRIM3#

main74310-22610-03i199008-199207

MEDIUM GRAY,TRIM1#

main74310-22610-04i198808-199008

LIGHT BLUE,TRIM8#

main74310-22610-06i198808-198908

LIGHT SABLE,TRIM3#,4#

main74310-22610-16i199008-199207

SABLE,TRIM4#

74317COVER, VISOR BRACKET, RH

main74317-22010-02i198808-199207

NEW MAROON,TRIM3#

main74317-22010-03i198808-199207

MEDIUM GRAY,TRIM1#

main74317-22010-04i198808-199008

LIGHT BLUE,TRIM8#

main74317-22010-06i198908-199008

LIGHT SABLE,TRIM3#

main74317-22010-13i199008-199207

MEDIUM GRAY,TRIM1#

main74317-22010-14i198808-199207

DARK BLUE,TRIM8#

main74317-22010-16i198808-199207

SABLE,TRIM4#

main74317-22010-22i199008-199207

NEW MAROON,TRIM3#

74318COVER, VISOR BRACKET, LH

main74318-22010-02i198808-199207

NEW MAROON,TRIM3#

main74318-22010-03i198808-199008

MEDIUM GRAY,TRIM1#

main74318-22010-04i198808-199008

LIGHT BLUE,TRIM8#

main74318-22010-06i198808-198908

LIGHT SABLE,TRIM3#,4#

main74318-22010-13i199008-199207

MEDIUM GRAY,TRIM1#

main74318-22010-14i198808-199207

DARK BLUE,TRIM8#

main74318-22010-16i198808-199207

SABLE,TRIM4#

main74318-22010-22i199008-199207

NEW MAROON,TRIM3#

main74318-22010-23i199008-199207

MEDIUM GRAY,TRIM1#

74320VISOR ASSY, LH

main74320-22630-02i198808-199008

NEW MAROON,TRIM3#

main74320-22630-03i198808-199008

MEDIUM GRAY,TRIM1#

main74320-22630-04i198808-199008

DARK BLUE,TRIM8#

main74320-22630-06i198808-199008

SABLE,TRIM4#

main74320-22630-12i199008-199207

NEW MAROON,TRIM3#

main74320-22630-13i199008-199207

MEDIUM GRAY,TRIM1#

main74320-22630-14i199008-199207

DARK BLUE,TRIM8#

main74320-22630-16i199008-199207

SABLE,TRIM4#

main74320-22640-02i199008-199207

NEW MAROON,TRIM3#

main74320-22640-03i199008-199207

MEDIUM GRAY,TRIM1#

main74320-22640-04i198808-199008

LIGHT BLUE,TRIM8#

main74320-22640-06i198808-198908

LIGHT SABLE,TRIM3#,4#

main74320-22640-16i199008-199207

SABLE,TRIM4#

74348HOLDER, VISOR

main74348-91601-02×2i198808-199207

NEW MAROON,TRIM3#

main74348-91601-03×2i198808-199207

MEDIUM GRAY,TRIM1#

main74348-91601-04×2i198808-199008

LIGHT BLUE,TRIM8#

main74348-91601-06×2i199008-199207

LIGHT SABLE,TRIM4#

main74348-91601-12×2i199008-199207

NEW MAROON,TRIM3#

main74348-91601-13×2i199008-199207

MEDIUM GRAY,TRIM1#

main74348-91601-14×2i198808-199207

DARK BLUE,TRIM8#

main74348-91601-16×2i198808-199207

SABLE,TRIM4#

74610AGRIP SUB-ASSY, ASSIST

main74610-22060-02×3i199008-199207

NEW MAROON,TRIM3#

main74610-22060-03×3i199008-199207

MEDIUM GRAY,TRIM1#

main74610-22060-04×3i198808-199008

LIGHT BLUE,TRIM8#

main74610-22060-06×3i199008-199207

LIGHT SABLE,TRIM4#

main74610-22070-02×3i198808-199207

NEW MAROON,TRIM3#

main74610-22070-03×3i198808-199207

MEDIUM GRAY,TRIM1#

main74610-22070-04×3i198808-199008

W(SUN ROOF),LIGHT BLUE,TRIM8#

main74610-22070-06×3i198808-198908

W(SUN ROOF),LIGHT SABLE,TRIM3#,4#

main74610-22070-13×3i199008-199207

W(SUN ROOF),MEDIUM GRAY,TRIM1#

main74610-22070-14×3i198808-199207

DARK BLUE,TRIM8#

main74610-22070-16×3i198808-199207

SABLE,TRIM4#

main74610-22070-22×3i199008-199207

W(SUN ROOF),NEW MAROON,TRIM3#

74612COVER, ASSIST GRIP

main74612-22050-02×6i198808-199207

NEW MAROON,TRIM3#

main74612-22050-03×6i198808-199207

MEDIUM GRAY,TRIM1#

main74612-22050-04×6i198808-199008

LIGHT BLUE,TRIM8#

main74612-22050-06×6i198808-198908

LIGHT SABLE,TRIM3#,4#

main74612-22050-14×6i198808-199207

DARK BLUE,TRIM8#

main74612-22050-16×6i198808-199207

SABLE,TRIM4#

main74612-22050-22×6i199008-199207

MAUVE,TRIM3#

main74612-22050-23×6i199008-199207

MEDIUM GRAY,TRIM1#

74631BHOOK, COAT

main74631-14010-20×2i198808-199207

MEDIUM GRAY,TRIM1#

main74631-14010-23×2i199008-199207

GRAY,TRIM1#

main74631-14010-30×2i198808-199207

DARK BLUE,TRIM8#

main74631-14010-32×2i198808-199207

NEW MAROON,TRIM3#

main74631-14010-36×2i199008-199207

SABLE,TRIM4#

main74631-14010-46×2i198808-199207

SABLE,TRIM4#

main74631-14010-54×2i198808-199008

LIGHT BLUE,TRIM8#

main74631-14010-59×2i199008-199207

NEW MAROON,TRIM3#

main74631-22030-02×2i198808-199207

W(SUN ROOF),NEW MAROON,TRIM3#

main74631-22030-03×2i198808-199207

W(SUN ROOF),MEDIUM GRAY,TRIM1#

main74631-22030-04×2i198808-199008

W(SUN ROOF),LIGHT BLUE,TRIM8#

main74631-22030-06×2i198808-198908

W(SUN ROOF),LIGHT SABLE,TRIM3#,4#

main74631-22030-13×2i199008-199207

W(SUN ROOF),LIGHT GRAY,TRIM1#

main74631-22030-14×2i198808-199207

W(SUN ROOF),DARK BLUE,TRIM8#

main74631-22030-16×2i198808-199207

W(SUN ROOF),SABLE,TRIM4#

main74631-22030-22×2i199008-199207

W(SUN ROOF),NEW MAROON,TRIM3#

8121INTERIOR LAMP

→ Go to FIG 81-21

9015960370

main90159-60370

9015960503

main90159-60503

9016250010

main90162-50010

9018906121

main90189-06121

9046710012

main90467-10012

22 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota CRESSIDA

This section contains 22 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CRESSIDA. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH.
