Toyota CRESSIDA — ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-22100-02i198510-198808

LEATHER PACKAGE,MAROON,MAROON

main74210-22100-03i198408-198608

LEATHER PACKAGE,GRAY,COOL GRAY

main74210-22100-13i198608-198808

LEATHER PACKAGE,GRAY,MEDIUM GRAY

main74210-22100-15i198608-198808

LEATHER PACKAGE,BEIGE,DARK BEIGE

main74210-22110-02i198408-198808

MAROON,MAROON

main74210-22110-03i198408-198608

GRAY,COOL GRAY

main74210-22110-04i198608-198808

BLUE,DARK BLUE

main74210-22110-05i198408-198608

BEIGE,BEIGE

main74210-22110-07i198408-198608

GREEN,GREEN

main74210-22110-13i198608-198808

GRAY,MEDIUM GRAY

main74210-22110-15i198608-198808

BEIGE,DARK BEIGE

74220ARMREST ASSY, FRONT, LH

main74220-22090-02i198408-198510

LEATHER PACKAGE,MAROON,MAROON

main74220-22090-03i198408-198608

LEATHER PACKAGE,GRAY,COOL GRAY

main74220-22090-13i198608-198808

LEATHER PACKAGE,GRAY,MEDIUM GRAY

main74220-22090-15i198608-198808

LEATHER PACKAGE,BEIGE,DARK BEIGE

main74220-22100-02i198408-198808

MAROON,MAROON

main74220-22100-03i198408-198608

GRAY,COOL GRAY

main74220-22100-04i198608-198808

BLUE,DARK BLUE

main74220-22100-05i198408-198608

BEIGE,BEIGE

main74220-22100-07i198408-198608

GREEN,GREEN

main74220-22100-13i198608-198808

GRAY,MEDIUM GRAY

main74220-22100-15i198608-198808

BEIGE,DARK BEIGE

74230ARMREST ASSY, REAR, RH

main74250-22040-02i198510-198808

LEATHER PACKAGE,MAROON,MAROON

main74250-22040-03i198408-198608

LEATHER PACKAGE,GRAY,COOL GRAY

main74250-22040-13i198608-198808

LEATHER PACKAGE,GRAY,MEDIUM GRAY

main74250-22040-15i198608-198808

LEATHER PACKAGE,BEIGE,DARK BEIGE

main74250-22050-02i198408-198808

MAROON,MAROON

main74250-22050-03i198408-198608

GRAY,COOL GRAY

main74250-22050-04i198608-198808

BLUE,DARK BLUE

main74250-22050-05i198408-198608

BEIGE,BEIGE

main74250-22050-07i198408-198608

GREEN,GREEN

main74250-22050-13i198608-198808

GRAY,MEDIUM GRAY

main74250-22050-15i198608-198808

BEIGE,DARK BEIGE

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-22150i198408-198608

main74231-22190i198408-198510

LEATHER PACKAGE

main74231-22210i198608-198808

main74231-22220i198608-198808

LEATHER PACKAGE

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-22100i198408-198510

LEATHER PACKAGE

main74232-22130i198408-198808

74240ARMREST ASSY, REAR, LH

main74260-22030-02i198510-198808

LEATHER PACKAGE,MAROON,MAROON

main74260-22030-03i198408-198608

LEATHER PACKAGE,GRAY,COOL GRAY

main74260-22030-13i198608-198808

LEATHER PACKAGE,GRAY,MEDIUM GRAY

main74260-22030-15i198608-198808

LEATHER PACKAGE,BEIGE,DARK BEIGE

main74260-22040-02i198408-198808

MAROON,MAROON

main74260-22040-03i198408-198608

GRAY,COOL GRAY

main74260-22040-04i198608-198808

BLUE,DARK BLUE

main74260-22040-05i198408-198608

BEIGE,BEIGE

main74260-22040-07i198408-198608

GREEN,GREEN

main74260-22040-13i198608-198808

GRAY,MEDIUM GRAY

main74260-22040-15i198608-198808

BEIGE,DARK BEIGE

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-22050i198408-198808

main74271-22060i198408-198510

LEATHER PACKAGE

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-22050i198408-198808

main74272-22060i198408-198510

LEATHER PACKAGE

74310VISOR ASSY, RH

main74310-22330-02i198608-198808

MAROON,MAROON

main74310-22330-03i198411-198608

GRAY,GRAY

main74310-22330-04i198608-198808

BLUE,DARK BLUE

main74310-22330-05i198411-198608

BEIGE,BEIGE

main74310-22330-15i198608-198808

BEIGE,DARK BEIGE

main74310-22410-03i198408-198608

GRAY,GRAY

main74310-22410-05i198408-198608

BEIGE,BEIGE

main74310-22411-02i198608-198808

MAROON,MAROON

main74310-22411-03i198608-198808

GRAY,MEDIUM GRAY

main74310-22411-04i198608-198808

BLUE,DARK BLUE

main74310-22411-05i198608-198808

BEIGE,DARK BEIGE

74320VISOR ASSY, LH

main74320-22280-03i198408-198608

GRAY,GRAY

main74320-22280-05i198408-198608

BEIGE,BEIGE

main74320-22281-02i198608-198808

MAROON,MAROON

main74320-22281-03i198608-198808

GRAY,MEDIUM GRAY

main74320-22281-04i198608-198808

BLUE,DARK BLUE

main74320-22281-05i198608-198808

BEIGE,DARK BEIGE

main74320-22460-02i198608-198808

MAROON,MAROON

main74320-22460-03i198408-198608

GRAY,GRAY

main74320-22460-04i198608-198808

BLUE,DARK BLUE

main74320-22460-05i198408-198608

BEIGE,BEIGE

main74320-22460-15i198608-198808

BEIGE,DARK BEIGE

74348HOLDER, VISOR

main74348-32010-22×2i198608-198808

MAROON,MAROON

main74348-32010-23×2i198408-198608

GRAY,GRAY

main74348-32010-25×2i198408-198608

BEIGE,BEIGE

main74348-32010-34×2i198608-198808

BLUE,DARK BLUE

main74348-32010-43×2i198608-198808

GRAY,MEDIUM GRAY

main74348-32010-45×2i198608-198808

BEIGE,DARK BEIGE

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-22020-02i198608-198808

MAROON,MAROON

main74610-22020-03i198408-198608

GRAY,GRAY

main74610-22020-04i198608-198808

BLUE,DARK BLUE

main74610-22020-05i198408-198608

BEIGE,BEIGE

main74610-22020-13i198608-198808

GRAY,MEDIUM GRAY

main74610-22020-15i198608-198808

BEIGE,DARK BEIGE

main74610-22030-02i198608-198808

MAROON,MAROON

main74610-22030-03i198408-198608

GRAY,GRAY

main74610-22030-04i198608-198808

BLUE,DARK BLUE

main74610-22030-05i198408-198608

BEIGE,BEIGE

main74610-22030-15i198608-198808

BEIGE,DARK BEIGE

main74610-22040-02i198608-198808

W/SUN ROOF,MAROON,MAROON

main74610-22040-03i198408-198608

W/SUN ROOF,GRAY,GRAY

main74610-22040-04i198608-198808

W/SUN ROOF,BLUE,DARK BLUE

main74610-22040-05i198408-198608

W/SUN ROOF,BEIGE,BEIGE

main74610-22040-13i198608-198808

W/SUN ROOF,GRAY,MEDIUM GRAY

main74610-22040-15i198608-198808

W/SUN ROOF,BEIGE,DARK BEIGE

74604GRIP SUB-ASSY, ASSIST, REAR

main74610-22020-02×2i198608-198808

MAROON,MAROON

main74610-22020-03×2i198408-198608

GRAY,GRAY

main74610-22020-04×2i198608-198808

BLUE,DARK BLUE

main74610-22020-05×2i198408-198608

BEIGE,BEIGE

main74610-22020-13×2i198608-198808

GRAY,MEDIUM GRAY

main74610-22020-15×2i198608-198808

BEIGE,DARK BEIGE

main74610-22030-02×2i198608-198808

MAROON,MAROON

main74610-22030-03×2i198408-198608

GRAY,GRAY

main74610-22030-04×2i198608-198808

BLUE,DARK BLUE

main74610-22030-05×2i198408-198608

BEIGE,BEIGE

main74610-22030-15×2i198608-198808

BEIGE,DARK BEIGE

main74610-22040-02×2i198608-198808

W/SUN ROOF,MAROON,MAROON

main74610-22040-03×2i198408-198608

W/SUN ROOF,GRAY,GRAY

main74610-22040-04×2i198608-198808

W/SUN ROOF,BLUE,DARK BLUE

main74610-22040-05×2i198408-198608

W/SUN ROOF,BEIGE,BEIGE

main74610-22040-13×2i198608-198808

W/SUN ROOF,GRAY,MEDIUM GRAY

main74610-22040-15×2i198608-198808

W/SUN ROOF,BEIGE,DARK BEIGE

74613PLUG, ASSIST GRIP

main74617-30020-12×6i198608-198808

MAROON,MAROON

main74617-30020-13×6i198408-198608

GRAY,GRAY

main74617-30020-25×6i198408-198608

BEIGE,BEIGE

main74617-30020-34×6i198608-198808

BLUE,DARK BLUE

main74617-30020-35×6i198608-198808

BEIGE,DARK BEIGE

74631HOOK, COAT, A

main74631-14010-12×2i198608-198808

MAROON,MAROON

main74631-14010-20×2i198608-198808

GRAY,MEDIUM GRAY

main74631-14010-35×2i198408-198608

BEIGE,BEIGE

main74631-14010-44×2i198608-198808

BLUE,DARK BLUE

main74631-14010-45×2i198608-198808

BEIGE,LIGHT BEIGE

main74631-14010-53×2i198408-198608

GRAY,GRAY

9015960188

main90159-60188

9015960254

main90159-60254

9016460014

main90164-60014

9018906024

main90189-06024

9018906043

main90189-06043

9046710012

main90467-10012

9353045020

main93530-45020

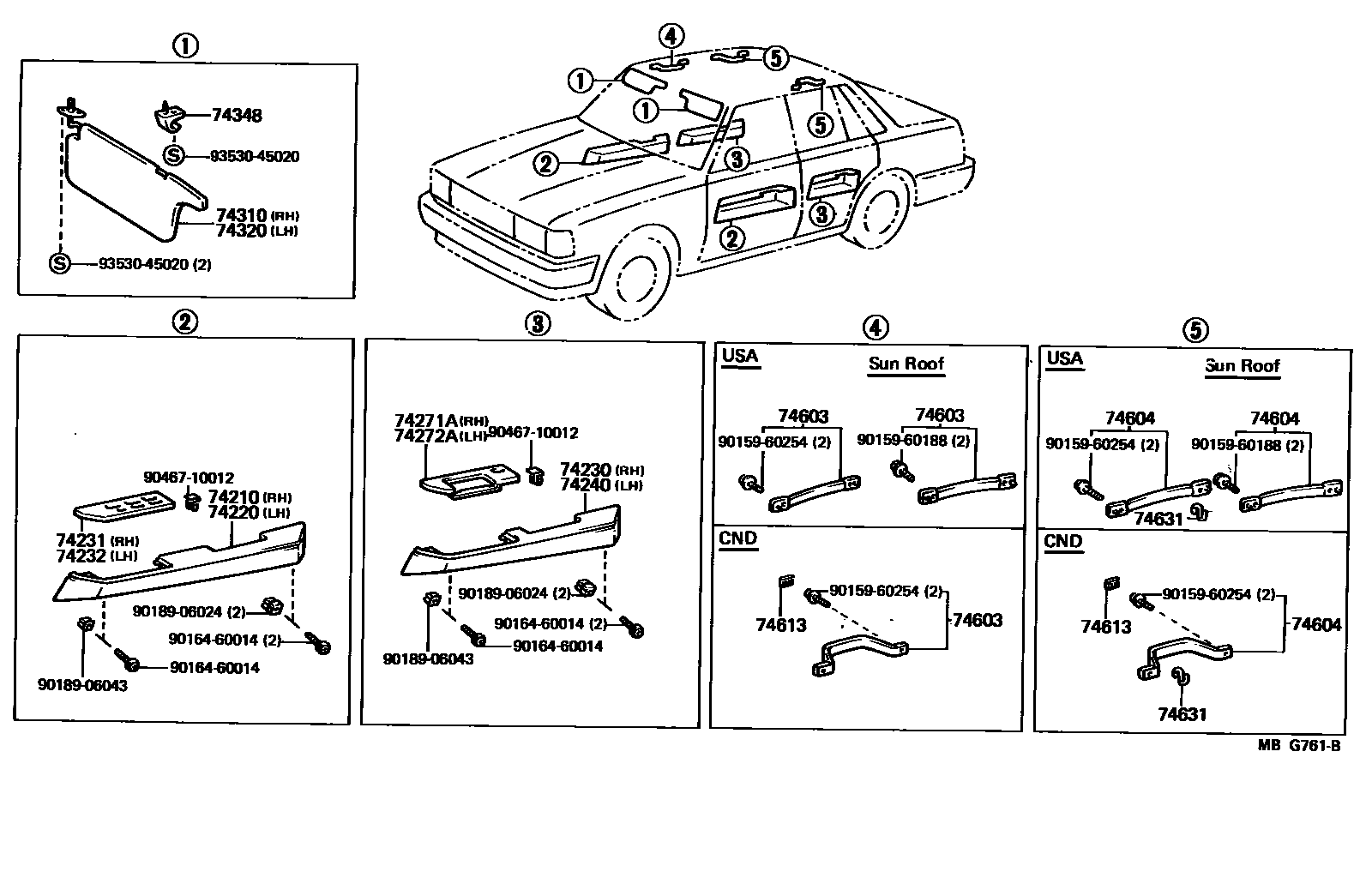

22 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota CRESSIDA

This section contains 22 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CRESSIDA. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH.
