Toyota CRESSIDA — ARMREST & VISOR

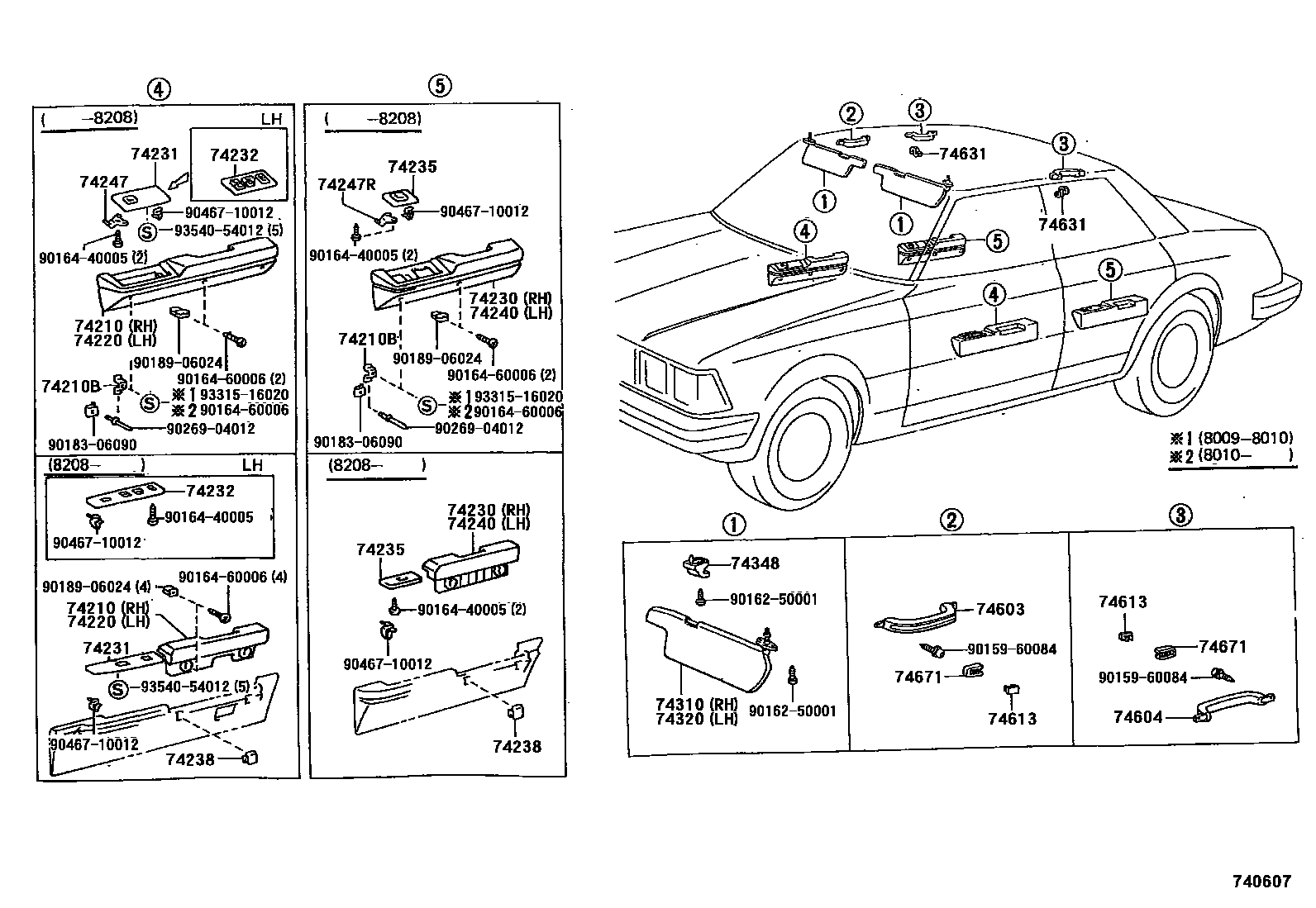

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-22081-01i198009-198208
BLACK,BLACK
main74210-22081-04i198009-198208
BLUE,BLUE
main74210-22081-06i198009-198208
D-BROWN,BROWN
main74210-22090-02i198208-198407
DEEP MAROON,RED/MAROON
main74210-22090-04i198208-198407
BLUE,BLUE
main74210-22090-06i198208-198407
D-BROWN,BROWN
74210BBRACKET, ARMREST SET
main67645-22010×4i198009-198208
74220ARMREST ASSY, FRONT, LH
main74220-22071-01i198009-198208
BLACK,BLACK
main74220-22071-04i198009-198208
BLUE,BLUE
main74220-22071-06i198009-198208
D-BROWN,BROWN
main74220-22080-02i198208-198407
DEEP MAROON,RED/MAROON
main74220-22080-04i198208-198407
BLUE,BLUE
main74220-22080-06i198208-198407
D-BROWN,BROWN
74230ARMREST ASSY, REAR, RH
main74250-22021-01i198009-198208
BLACK,BLACK
main74250-22021-04i198009-198208
BLUE,BLUE
main74250-22021-06i198009-198208
D-BROWN,BROWN
main74250-22030-02i198208-198407
DEEP MAROON,RED/MAROON
main74250-22030-04i198208-198407
BLUE,BLUE
main74250-22030-06i198208-198407
D-BROWN,BROWN
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74232-22070i198208-198407
main74232-30090i198009-198208
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74231-22090i198208-198407
main74241-22010i198009-198208
74235PANEL, REAR ARMREST BASE, UPPER
main74271-22020i198208-198407
RH
main74271-30030i198009-198208
RH
main74272-22020i198208-198407
LH
main74272-30030i198009-198208
LH
74238CAP, DOOR ARMREST BASE
main74237-22020-02×8i198208-198407
DEEP MAROON,RED/MAROON
main74237-22020-04×8i198208-198407
BLUE,BLUE
main74237-22020-06×8i198208-198407
D-BROWN,BROWN
74240ARMREST ASSY, REAR, LH
main74260-22011-01i198009-198208
BLACK,BLACK
main74260-22011-04i198009-198208
BLUE,BLUE
main74260-22011-06i198009-198208
D-BROWN,BROWN
main74260-22020-02i198208-198407
DEEP MAROON,RED/MAROON
main74260-22020-04i198208-198407
BLUE,BLUE
main74260-22020-06i198208-198407
D-BROWN,BROWN
74247HOOK, FRONT DOOR ARMREST UPPER BASE
main74247-30010×2i198009-198208
74247RHOOK, REAR DOOR ARMREST UPPER BASE
main74247-22010×2i198009-198208
74310VISOR ASSY, RH
main74310-22240-04i198009-198208
BLUE,BLUE
main74310-22240-08i198009-198208
IVORY,IVORY
main74310-22250-04i198009-198208
W/*SRP,BLUE,BLUE
main74310-22250-08i198009-198208
W/*SRP,IVORY,IVORY
main74310-22251-08i198208-198407
IVORY,IVORY
main74310-22251-14i198208-198407
BLUE,BLUE
main74310-22300-04i198009-198108
BLUE,BLUE
main74310-22300-08i198009-198108
IVORY,IVORY
main74310-22310-04i198108-198208
BLUE,BLUE
main74310-22310-08i198108-198407
IVORY,IVORY
main74310-22310-14i198208-198407
BLUE,BLUE
74320VISOR ASSY, LH
main74320-22330-04i198009-198208
W/*SRP,BLUE,BLUE
main74320-22330-08i198009-198208
W/*SRP,IVORY,IVORY
main74320-22331-08i198208-198407
IVORY,IVORY
main74320-22331-14i198208-198407
BLUE,BLUE
main74320-22360-04i198009-198208
BLUE,BLUE
main74320-22360-08i198009-198208
IVORY,IVORY
main74320-22370-04i198009-198108
BLUE,BLUE
main74320-22370-08i198009-198108
IVORY,IVORY
main74320-22380-04i198108-198110
BLUE,BLUE
main74320-22380-08i198108-198110
IVORY,IVORY
main74320-22381-04i198110-198208
BLUE,BLUE
main74320-22381-08i198110-198407
IVORY,IVORY
main74320-22381-14i198208-198407
BLUE,BLUE
74348HOLDER, VISOR
main74348-12010-04×2i198009-198208
BLUE,BLUE
main74348-12010-08×2i198009-198407
IVORY,IVORY
main74348-12010-14×2i198208-198407
BLUE,BLUE
74603GRIP SUB-ASSY, ASSIST, FRONT
main74603-22020-04i198009-198208
BLUE,BLUE
main74603-22020-08i198009-198407
IVORY,IVORY
main74603-22020-14i198208-198407
BLUE,BLUE
74604GRIP SUB-ASSY, ASSIST, REAR
main74603-22020-04×2i198009-198208
BLUE,BLUE
main74603-22020-08×2i198009-198407
IVORY,IVORY
main74603-22020-14×2i198208-198407
BLUE,BLUE
74613PLUG, ASSIST GRIP
main74617-22010-04×6i198009-198208
BLUE,BLUE
main74617-22010-08×6i198009-198407
IVORY,IVORY
main74617-22010-24×6i198208-198407
BLUE,BLUE
74631HOOK, COAT, A
main74631-14010-04×2i198009-198208
BLUE,BLUE
main74631-14010-08×2i198009-198407
IVORY,IVORY
main74631-14010-14×2i198208-198407
BLUE,BLUE
74671SUPPORT, ASSIST GRIP
main74671-22010-04×6i198009-198208
BLUE,BLUE
main74671-22010-08×6i198009-198407
IVORY,IVORY
main74671-22010-24×6i198208-198407
BLUE,BLUE
9015960084
main90159-60084
9016250001
main90162-50001
9016440005
main90164-40005
9016460006
main90164-60006
9018306090
main90183-06090
9018906024
main90189-06024
9026904012
main90269-04012
9046710012
main90467-10012
9331516020
main93315-16020
9354054012
main93540-54012

29 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota CRESSIDA

This section contains 29 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CRESSIDA. Key components include: ARMREST ASSY, FRONT, RH, BRACKET, ARMREST SET, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH, PANEL, FRONT ARMREST BASE, UPPER RH.
