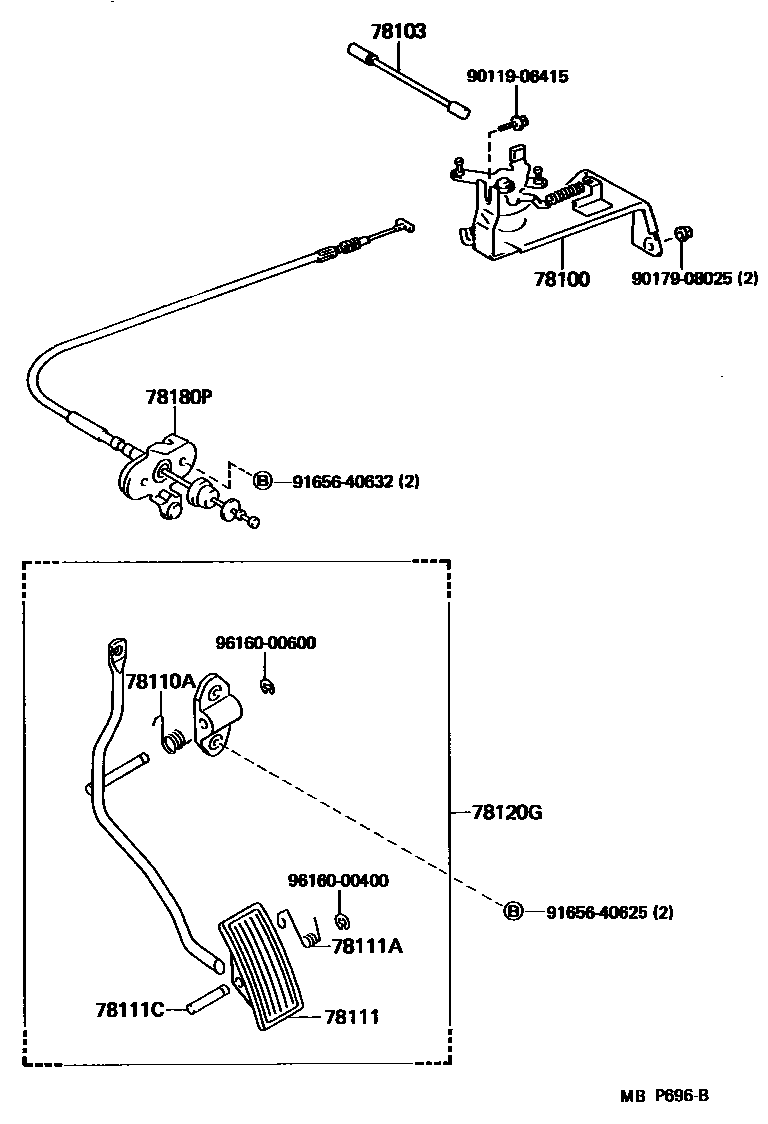

Toyota CRESSIDA — ACCELERATOR LINK

78100LINK ASSY, ACCELERATOR

main78100-22110i198808-199207

78103ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1

main78103-22120i198808-199207

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18060i198808-199207

78111PEDAL, ACCELERATOR

main78111-12100i198808-199001

main78111-22010i199001-199207

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23108i198808-199207

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001i198808-199207

78120GROD ASSY, ACCELERATOR PEDAL

main78120-22300i198808-199207

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-2A010i198808-199207

9011906415

main90119-06415

9017908025

main90179-08025

9165640625

main91656-40625

9165640632

main91656-40632

9616000400

main96160-00400

9616000600

main96160-00600

14 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota CRESSIDA

This section contains 14 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota CRESSIDA. Key components include: LINK ASSY, ACCELERATOR, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1, SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, SPRING (FOR ACCELERATOR PEDAL).
