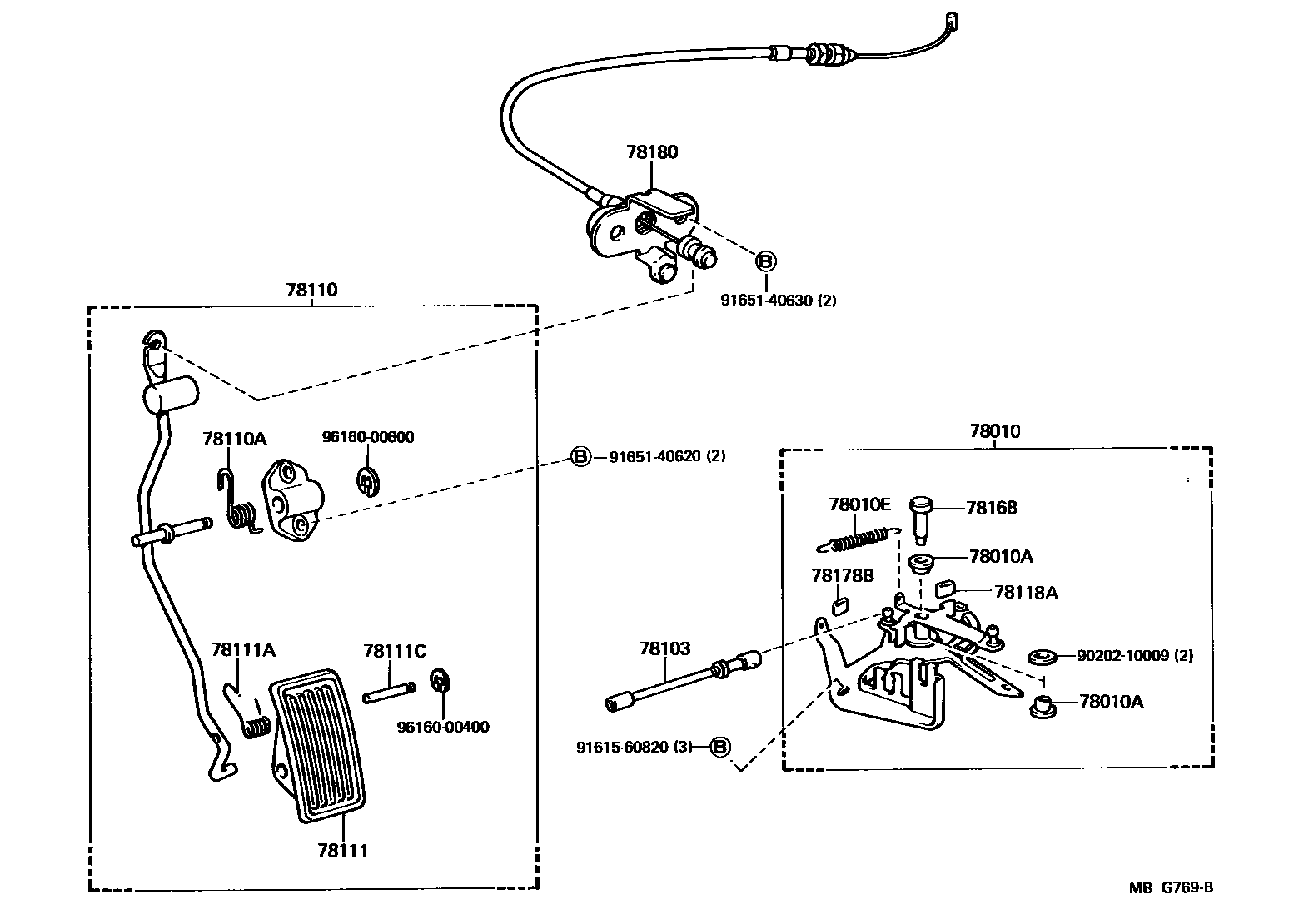

Toyota CRESSIDA — ACCELERATOR LINK

78010LINK, ACCELERATOR

main78100-22020i198408-198708

main78100-22030i198408-198808

78010ABUSH (FOR ACCELERATOR LINK)

main90386-08005×2i198408-198808

78010ESPRING,TENSION (FOR ACCELERATOR LINK)

main90507-09001i198408-198808

78103ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1

main78103-14180i198408-198808

78110ROD ASSY, ACCELERATOR PEDAL

main78120-22240i198408-198803

main78120-22241i198803-198808

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18060i198408-198808

78111PEDAL, ACCELERATOR

main78111-12100i198408-198808

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23088i198408-198808

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001i198408-198808

78118ASTOPPER, ACCELERATOR PEDAL

main78118-12010i198408-198808

78168PIN, ACCELERATOR LINK ARM

main78163-14030i198408-198808

78178BDAMPER, ACCEL CONTROL NO.4 ROD BRACKET

main78178-14010×2i198408-198808

78180WIRE ASSY, ACCELERATOR

main78180-22430i198408-198708

main78180-22440i198408-198808

9020210009

main90202-10009

9161560820

main91615-60820

9165140620

main91651-40620

9165140630

main91651-40630

9616000400

main96160-00400

9616000600

main96160-00600

19 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota CRESSIDA

This section contains 19 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota CRESSIDA. Key components include: LINK, ACCELERATOR, BUSH (FOR ACCELERATOR LINK), SPRING,TENSION (FOR ACCELERATOR LINK), ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1, ROD ASSY, ACCELERATOR PEDAL.
