Toyota CRESSIDA — WINDSHIELD WIPER

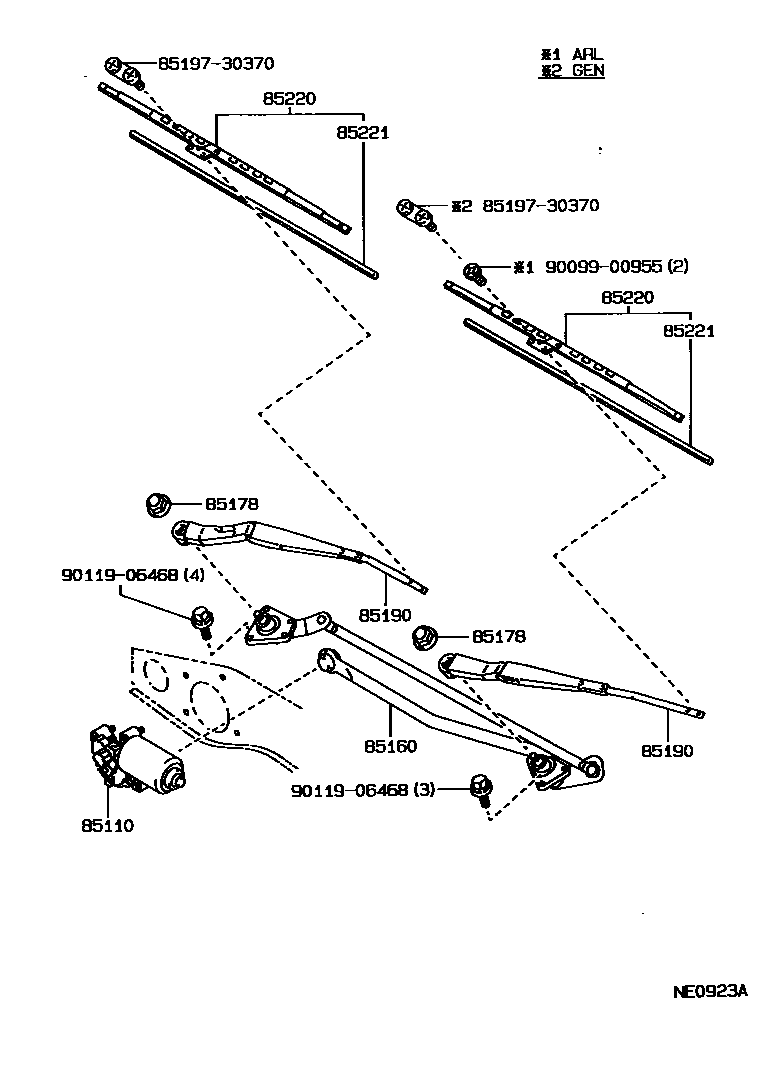

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-22430i198808-198909

main85110-22431i198909-199302

main85110-22440i198808-199302

main85110-22460i198808-199608

85160LINK ASSY, WINDSHIELD WIPER

main85160-22410i198808-198909

main85160-22411i198909-199302

main85160-22470i198808-199608

main85160-22480i198808-199302

TAXI PACKAGE FOR CHINA

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08040×2i198808-199608

85190ARM ASSY, WINDSHIELD WIPER

main85190-22660i198808-199006

RH,SCREW TYPE; SCREW TYPE,RH

main85190-22661i199006-199008

RH,U HOOK TYPE; U HOOK TYPE,RH

main85190-22720i198808-199008

LH

main85190-22721i199008-199608

LH

main85210-22270i198808-199006

LH,SCREW TYPE

main85210-22271i199006-199008

LH,U HOOK TYPE

main85210-22290i198808-199006

SCREW TYPE,LH

main85210-22291i199006-199008

U HOOK TYPE,LH

main85210-22310i198808-199008

RH

main85210-22311i199008-199608

RH

main85211-22370i199008-199302

RH

main85221-22250i199008-199110

LH

main85221-22270i199008-199302

LH

main85221-22300i199110-199302

LH

85220BLADE ASSY, WINDSHIELD WIPER

main85212-22360i199006-199008

RH,U HOOK TYPE

main85212-22380i199008-199302

RH

main85220-16820i198808-199006

SCREW TYPE,LH

main85220-16840i198808-199008

RH

main85220-16841i199008-199608

RH

main85220-1A010i198808-198909

LH,SCREW TYPE

main85220-1A011i198909-199006

LH,SCREW TYPE

main85220-32790i198808-199008

LH

main85220-32791i199008-199608

LH

main85220-3A020i198808-198909

RH,SCREW TYPE; SCREW TYPE,RH

main85220-3A021i198909-199006

RH,SCREW TYPE; SCREW TYPE,RH

main85222-22690i199006-199008

LH,U HOOK TYPE

main85222-22700i199006-199008

LH,U HOOK TYPE

main85222-22720i199008-199112

LH

main85222-22730i199112-199302

LH

main85222-22740i199008-199302

LH

85221BLADE, WINDSHIELD WIPER

main85213-18010i199302-199608

LH

main85213-22360i198909-198912

RH

main85213-32080i199006-199112

RH

main85213-32240i199112-199302

RH

main85221-22150i198808-199006

LH

main85221-22210i198808-199009

LH

main85221-22220i198808-199009

RH

main85223-22690i198909-198912

LH

main85223-22700i198912-199006

LH

main85223-22710i199006-199112

LH

main85223-22720i199006-199302

LH

main85223-22730i199112-199302

LH

8519730370

main85197-30370

9009900955

main90099-00955

9011906468

main90119-06468

9 parts on this diagram · 2 diagrams in section

WINDSHIELD WIPER for Toyota CRESSIDA

This section contains 11 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota CRESSIDA. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM ASSY, WINDSHIELD WIPER, BLADE ASSY, WINDSHIELD WIPER.
