Toyota CRESSIDA — WINDSHIELD WIPER

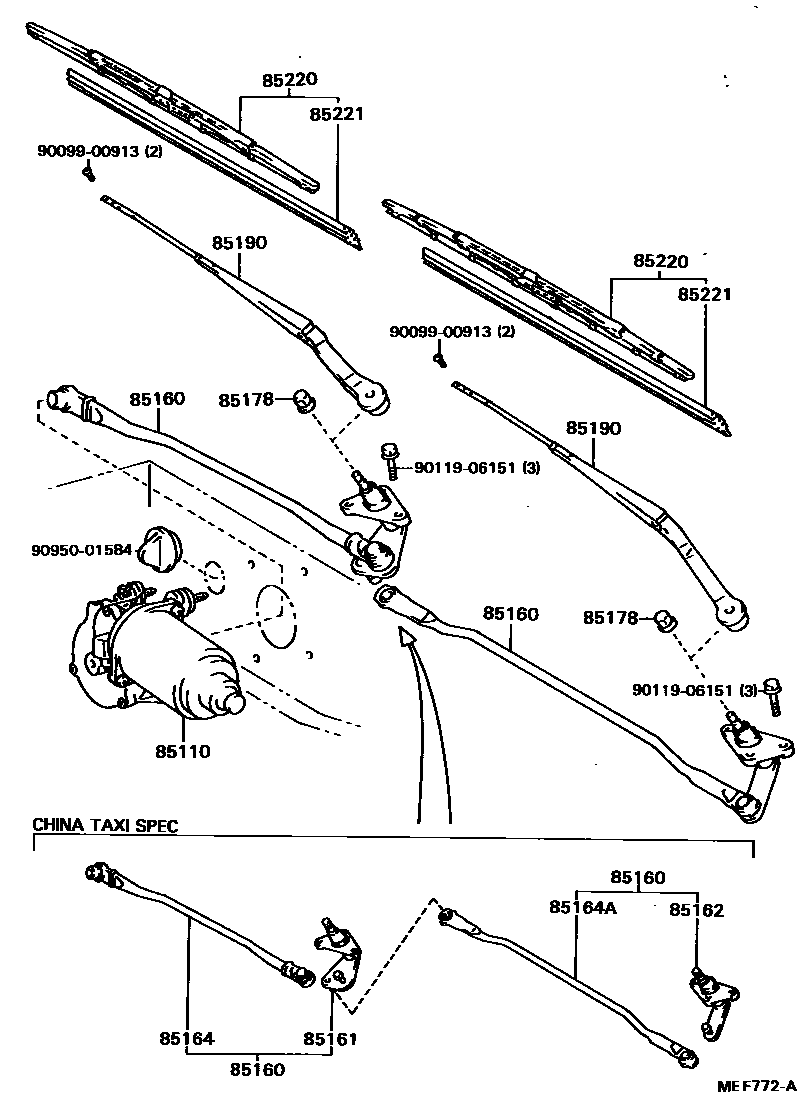

Parts diagram
85110MOTOR ASSY, WINDSHIELD WIPER
main85110-22290i198408-198512
main85110-22291i198512-198611
main85110-22292i198611-198808
main85110-22300i198408-198608
main85110-22320i198408-198803
main85110-22321i198803-198808
main85110-22330i198408-198608
main85110-22401i198611-198808
85160LINK ASSY, WINDSHIELD WIPER
main85160-22240i198408-198512
LH
main85160-22241i198512-198808
LH
main85160-22250i198408-198808
RH
main85160-22280i198502-198808
LH,CHINA TAXI SPEC
main85160-22290i198408-198808
RH
main85160-22300i198408-198808
LH
main85160-22330i198504-198808
RH
main85160-22350i198502-198808
RH,CHINA TAXI SPEC
85161PIVOT, WINDSHIELD WIPER LINK, NO.1
main85161-22350i198502-198808
CHINA TAXI SPEC
85162PIVOT, WINDSHIELD WIPER LINK, NO.2
main85162-22280i198502-198808
CHINA TAXI SPEC
85164ROD, WINDSHIELD WIPER LINK, NO.1
main85164-22350i198502-198808
CHINA TAXI SPEC
85164AROD, WINDSHIELD WIPER LINK, NO.2
main85165-22220i198502-198808
CHINA TAXI SPEC
85178NUT (FOR FRONT WIPER ARM SETTING)
main90176-08029×2i198408-198506
main90176-08033×2i198506-198808
85190ARM ASSY, WINDSHIELD WIPER
main85190-22500i198608-198808
RH
main85190-22501i198608-198808
RH
main85190-22520i198408-198608
RH
main85190-22540i198408-198608
LH
main85190-22541i198608-198808
LH
main85190-22550i198408-198608
LH
main85190-22580i198408-198608
RH
main85190-22581i198608-198808
RH
main85190-22590i198504-198608
LH
main85190-22591i198608-198808
LH
main85210-22180i198608-198808
LH
main85210-22181i198608-198808
LH
main85210-22200i198408-198608
RH
main85210-22201i198608-198808
RH
main85210-22220i198408-198608
LH
main85210-22221i198608-198808
LH
85220BLADE ASSY, WINDSHIELD WIPER
main85220-16260i198408-198808
RH
main85220-16300i198408-198808
LH
main85220-16330i198408-198507
LH
main85220-16500i198608-198808
LH
main85220-16660i198608-198808
LH
main85220-32280i198408-198808
LH
main85220-32300i198408-198808
RH
main85220-32310i198408-198507
RH
main85220-32370i198408-198608
RH
main85220-32380i198408-198608
LH
main85220-32440i198507-198608
RH
main85220-32620i198608-198808
RH
85221BLADE, WINDSHIELD WIPER
main85221-22100i198408-198608
LH; RH
main85221-22110i198608-198808
RH
main85221-22120i198608-198808
LH
main85221-30100i198408-198808
LH; RH
main85221-30110i198408-198507
RH
main85221-30120i198408-198507
LH
main85221-30130i198608-198808
RH
main85221-32060i198408-198808
LH; RH
main85221-40040i198507-198608
LH
9009900913
main90099-00913
9011906151
main90119-06151
9095001584
main90950-01584

13 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota CRESSIDA

This section contains 13 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota CRESSIDA. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, PIVOT, WINDSHIELD WIPER LINK, NO.1, PIVOT, WINDSHIELD WIPER LINK, NO.2, ROD, WINDSHIELD WIPER LINK, NO.1.
