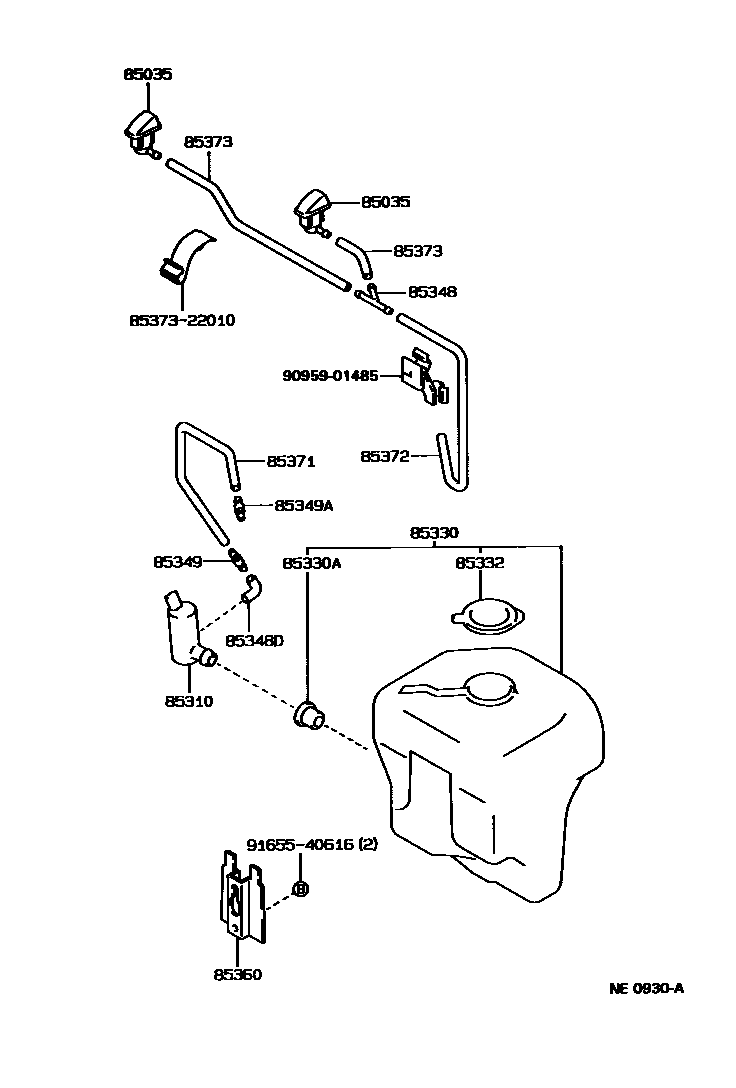

Toyota CRESSIDA — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
BLACK,202 ,4K2
RED MICA,3H4
SUPER SILVER 3 M.,176
LIGHT BLUE M. M.,8G2
GRAY M. M.,170
SUPER WHITE 4,050
BLACK,202 ,4L4
RED MICA,3H4
SUPER SILVER 3 M.,176
LIGHT BLUE M. M.,8G2
BEIGE M,4J1
RED M.M,3J9
GRAY M. M.,170
SUPER WHITE 4,050
BLACK,202 ,4K2
RED MICA,3H4
SUPER SILVER 3 M.,176
LIGHT BLUE M. M.,8G2
GRAY M. M.,170
SUPER WHITE 4,050
BLACK,202 ,4L4
RED MICA,3H4
SUPER SILVER 3 M.,176
LIGHT BLUE M. M.,8G2
BEIGE M,4J1
RED M.M,3J9
GRAY M. M.,170
SUPER WHITE 4,050
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
85349AJOINT, WINDSHIELD WASHER HOSE, NO.2
85360BRACKET ASSY, WINDSHIELD WASHER
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1100
L=1800
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450
L=1000
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450,RH
L=1450(*H,L=40),LH
L=1450(*H,L=580),RH
8537322010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main85373-22010
9095901485
main90959-01485
9165540616
main91655-40616
16 parts on this diagram · 2 diagrams in section
WINDSHIELD WASHER for Toyota CRESSIDA
This section contains 17 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CRESSIDA. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
