Toyota CRESSIDA — WINDSHIELD WASHER

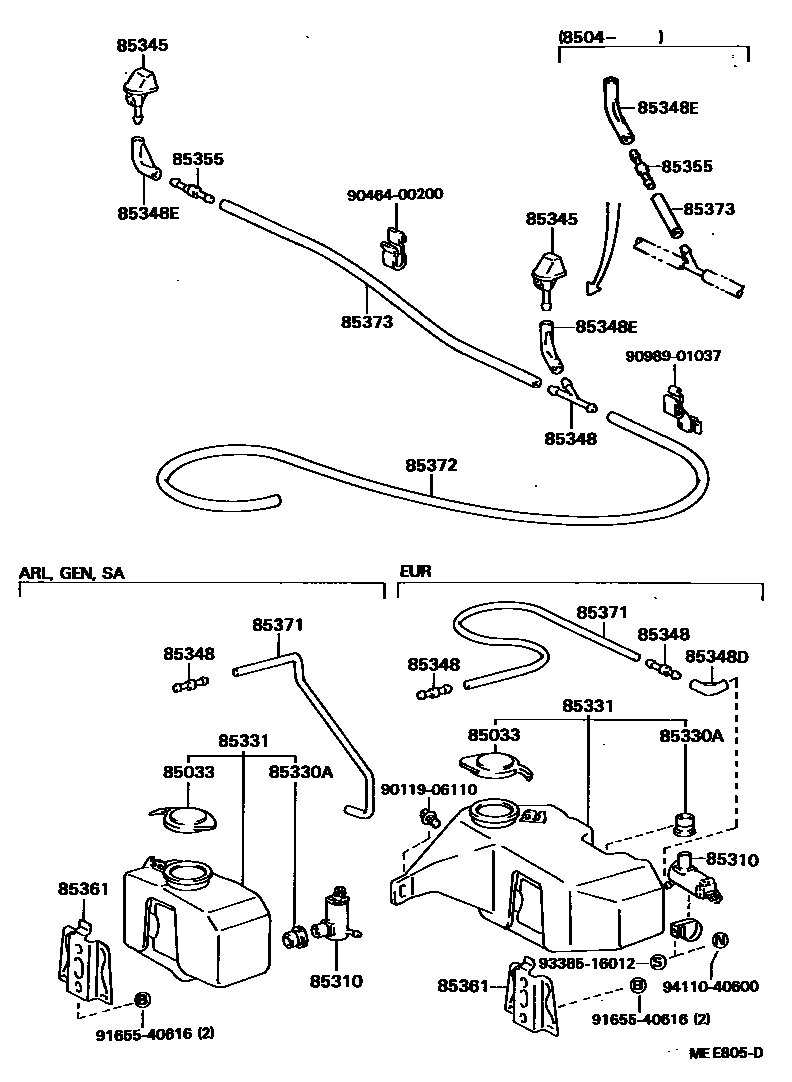

Parts diagram
85033CAP ASSY, WINDSHIELD WASHER
main85332-12320i198408-198808
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-22080i198408-198808
main85310-22130i198411-198608
W/*HC
main85310-30080i198408-198411
W/*HC
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i198408-198808
85331JAR SUB-ASSY, WINDSHIELD WASHER
main85331-22210i198408-198608
W/*HC
main85331-22220i198408-198608
W/*HC
main85331-22310i198408-198808
main85331-22320i198408-198608
W/O *HC
main85331-22340i198408-198608
W/O *HC
main85331-22360i198408-198808
85345NOZZLE, WINDSHIELD WASHER
main85035-22080×2i198408-198411
main85035-22090×2i198408-198608
main85035-22150×2i198504-198608
main85035-22160×2i198608-198808
main85035-22190-01×2i198608-198808
BLACK,BLACK
main85035-22190-05×2i198608-198808
BEIGE-M,BEIGE METALLIC
main85035-22190-08×2i198608-198808
WHITE,SUPER WHITE 2
main85035-22200-01×2i198608-198808
BLACK,BLACK
main85035-22200-05×2i198608-198808
BEIGE-M,BEIGE METALLIC
main85035-22200-08×2i198608-198808
WHITE,SUPER WHITE 2
main85035-22220-01×2i198608-198808
BLACK,BLACK
main85035-22220-05×2i198608-198808
BEIGE-M,BEIGE METALLIC
main85035-22220-08×2i198608-198808
WHITE,SUPER WHITE 2
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85348-12250i198408-198808
3 WAY
main85349-14010i198408-198608
2 WAY,W/*HC
main85349-89122i198408-198808
2 WAY,NO.1
main85352-30221i198709-198808
2 WAY,NO.2
main85355-87201×2i198408-198608
2 WAY
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85355-20070i198408-198608
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
main85355-14481×2i198408-198808
85355VALVE, WINDSHIELD WASHER HOSE
main85031-12250i198408-198808
85361HOLDER, WINDSHIELD WASHER
main16611-22010i198408-198808
main85961-22030i198512-198608
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33299i198408-198608
L=1100(*H,L=380),W/*HC
main90446-07001i198709-198808
L=1450(*H,L=320); L=1450(*H,L=70),NO.1,NO.2
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33299i198408-198504
L=1800(*H,L=450)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90446-06013i198408-198504
L=1000
9011906110
main90119-06110
9046400200
main90464-00200
9098901037
main90989-01037
9165540616
main91655-40616
9338516012
main93385-16012
9411040600
main94110-40600

19 parts on this diagram · 3 diagrams in section

WINDSHIELD WASHER for Toyota CRESSIDA

This section contains 29 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CRESSIDA. Key components include: CAP ASSY, WINDSHIELD WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, JAR SUB-ASSY, WINDSHIELD WASHER, NOZZLE, WINDSHIELD WASHER.
